Kawasaki Vulcan 900 Classic / Classic LT 2006–2011 Service Manual (P/N 99924-1366-04)

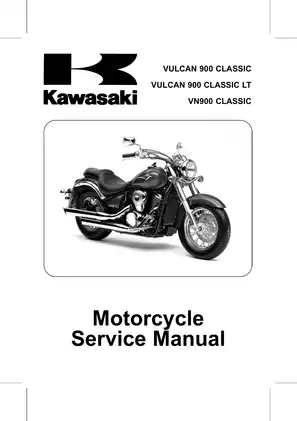

Kawasaki’s factory Motorcycle Service Manual, P/N 99924-1366-04, is the Fourth Edition (1), dated June 21, 2007. It covers the 2006–2008 Vulcan 900 Classic / VN900 Classic (VN900B) and Vulcan 900 Classic LT (VN900D) applications identified in the model coverage box.

Searchable Text, Bookmarks, and Wiring Detail

Search and diagram detail: The service text is searchable, and embedded PDF bookmarks provide access to chapters, procedures, and tables. Labels within the DFI and regional wiring-diagram images are not searchable. Small wire-color codes and connector details require zooming.

The ZIP download contains one printable English PDF. The 582-page PDF includes 10 pages of front matter, two of them blank; seven further blank pages; two chapter placeholder pages; and the final model-application page.

DFI Diagnosis, Internal Engine Repair, and Chassis Service

This selection of covered work sits alongside further procedures, including seat, fender, side-cover, and footboard removal and installation.

• DFI and fuel-system diagnosis: Service-code retrieval and clearing, sensor voltage and resistance tests, ECU power-supply checks, fuel-pressure and flow testing, injector signal and unit tests, subthrottle actuator diagnosis, and throttle-body removal and cleaning.

• Engine and transmission repair: Step-by-step procedures for engine removal and installation, compression testing, camshaft-chain timing, cylinder-head removal, valve and guide work, valve-seat repair, piston and cylinder inspection, crankcase splitting, and transmission and shift-drum disassembly and reassembly. Crankshaft, connecting-rod, bearing-selection, balancer, and starter-clutch work is also covered.

• Cooling and lubrication: Coolant draining and filling, cooling-system pressure testing, water-pump mechanical-seal replacement, oil-pressure testing, and oil-pump removal and installation.

• Clutch and final drive: Clutch teardown, plate inspection, drive-belt adjustment and removal, engine and rear pulley service, and coupling-bearing replacement.

• Brakes and chassis: Caliper and master-cylinder disassembly, brake-line bleeding, disc inspection, spoke and rim work, hub-bearing service, front-fork disassembly and oil-seal replacement, swingarm and Uni-Trak bearing work, shock preload adjustment, and steering-stem bearing replacement.

• Electrical fault isolation: Wiring inspection, battery activation and charging, alternator rotor and stator service, regulator/rectifier tests, ignition peak-voltage checks, starter-motor overhaul, meter-unit diagnosis, relays, switches, sensors, and radiator-fan circuits.

• Factory reference data: Component torque and locking-agent tables, capacities and specified fluids, pressure-test specifications, electrical test values, adjustment data, wear limits, clearances, routing views, exploded assemblies, and regional wiring diagrams.

Kawasaki designed the book primarily for trained mechanics in a properly equipped shop; owners with a sound grasp of mechanics, tool use, and workshop procedures can also use it for basic maintenance and repair.

Regional Equipment and Classic LT Differences

Classic LT equipment: VN900D-specific sections cover windshield height adjustment, removal, and installation, plus saddlebag and backrest removal and installation.

Emissions and regional wiring: California material covers the evaporative canister, separator, hoses, inspections, and separator operation test. European sections include dual oxygen sensors and heaters, related service codes, city-light service, and dedicated wiring information. The engine-top-end chapter identifies WVTA and GB WVTA honeycomb-catalyst exhaust versions; Australia has its own complete wiring diagram.

Subthrottle wiring changes: DFI test-lead and subthrottle-sensor circuits distinguish the 2006–2007 B6F/D6F and B7F/D7F models from the 2008 B8F/D8F models. That distinction matters when tracing the 2008 sensor connector and wire assignments.

Valve Adjustment and Fuel-System Service Limits

Valve-clearance inspection and shim replacement are documented with separate inlet and exhaust adjustment charts. The periodic maintenance charts distinguish regional inspection requirements and scheduled replacement items.

The main and subthrottle sensors and subthrottle actuator are factory-set; the manual prohibits their individual removal or adjustment. Throttle-body service includes bore cleaning and idle-speed adjustment.

The pump screen and fuel filter are integral to the fuel pump. For suspected clogging or damage, the manual specifies replacement with the pump assembly.

Diagnostic Diagrams and Factory Tools

The DFI System Wiring Diagram (Other than Europe Models) and DFI System Wiring Diagram (Europe Models) accompany system-specific circuit tests. Complete Wiring Diagrams cover United States and Canada, Europe, and Australia.

The Appendix adds Cable, Wire and Hose Routing views and a symptom-based Troubleshooting Guide for starting difficulty, low- and high-speed running faults, overheating, clutch and shift problems, drivetrain noise, handling, brake performance, and battery or charging trouble.

Electrical and DFI tools: Procedures identify the Kawasaki Hand Tester P/N 57001-1394, Needle Adapter Set P/N 57001-1457, Fuel Pressure Gauge Adapter P/N 57001-1593, and Speed Sensor Measuring Adapter P/N 57001-1667.

Mechanical tools: References include the Compression Gauge P/N 57001-221 with Adapter P/N 57001-1317, Clutch Holder P/N 57001-1243, Pulley Holder P/N 57001-1572, Fork Oil Level Gauge P/N 57001-1290, and Steering Stem Nut Wrench P/N 57001-1100.

Cam-Chain and Drive-Belt Cautions

The cam-chain chapter warns that rotating the crankshaft with the tensioner cap bolt removed can damage the tensioner body or cylinder and upset timing enough to damage the valves. The belt-drive section cautions that twisting, sharply bending, or prying the belt onto the pulleys can damage its tensile cords and sharply reduce belt life.

Fuel-system repair involves residual pressure and flammable gasoline. Follow the manual’s battery-isolation and fuel-handling precautions, work away from ignition sources, and securely support the motorcycle before engine, wheel, fork, steering, or final-drive removal.

Examples of Fuel-Pressure and Injector Test Data

The fuel-pressure inspection specifies 304 kPa (44 psi) with the engine idling and the pump running. Its separate residual-pressure specification is 280 kPa (41 psi) after the pump’s three-second ignition-on cycle has ended.

For both fuel injectors, the resistance inspection specifies 11.7–12.3 Ω at 20°C (68°F). These values accompany the manual’s pressure, electrical, and injector unit tests.
