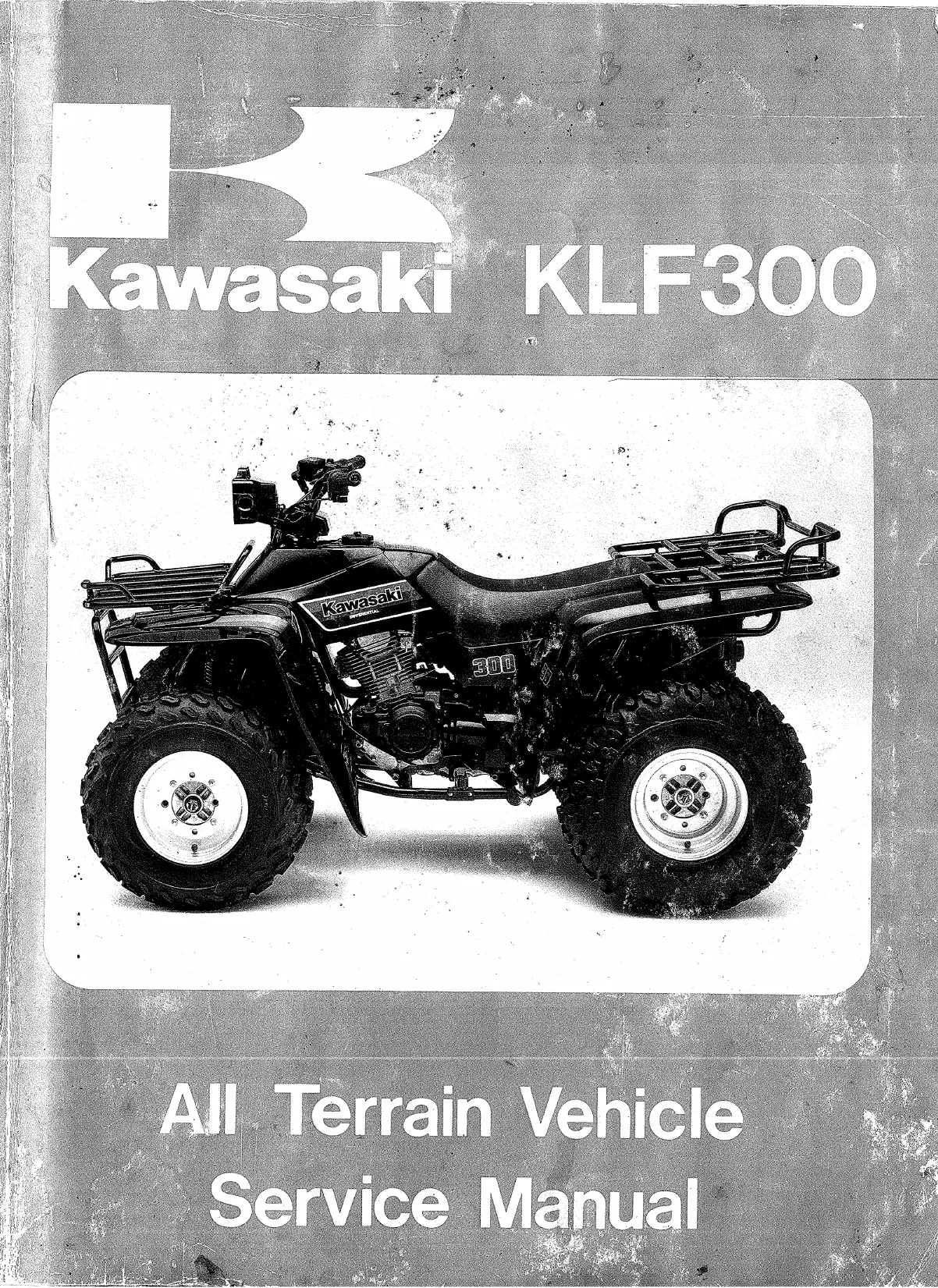

1986–2006 Kawasaki KLF300 Bayou / Bayou 300 4x4 ATV Service Manual (P/N 99924-1057-01)

• A 678-page PDF for Kawasaki KLF300 and Bayou 300 ATVs, combining A-series service information with B-series 2WD and C-series 4x4 supplements through 2006.
• Keihin carburetor repair, including CVK32 disassembly, cleaning, float and fuel-level checks, pilot-screw adjustment, and throttle/choke cable service.
• Engine work covers removal and installation, cylinder-head overhaul, valve-seat repair, camshaft timing, piston and ring inspection, and crankcase disassembly.
• Drivetrain procedures address centrifugal and multi-disc clutches, transmission shafts and shift forks, differential repair, and the 4x4 high/low sub-transmission.
• Chassis coverage includes brake bleeding, caliper and master-cylinder service, rear drum-brake adjustment, suspension bushings, steering knuckles, and wheel alignment.
• Electrical diagnosis covers the alternator, regulator/rectifier, ignition components, starter motor, and switches, supported by model-specific wiring diagrams and test tables.

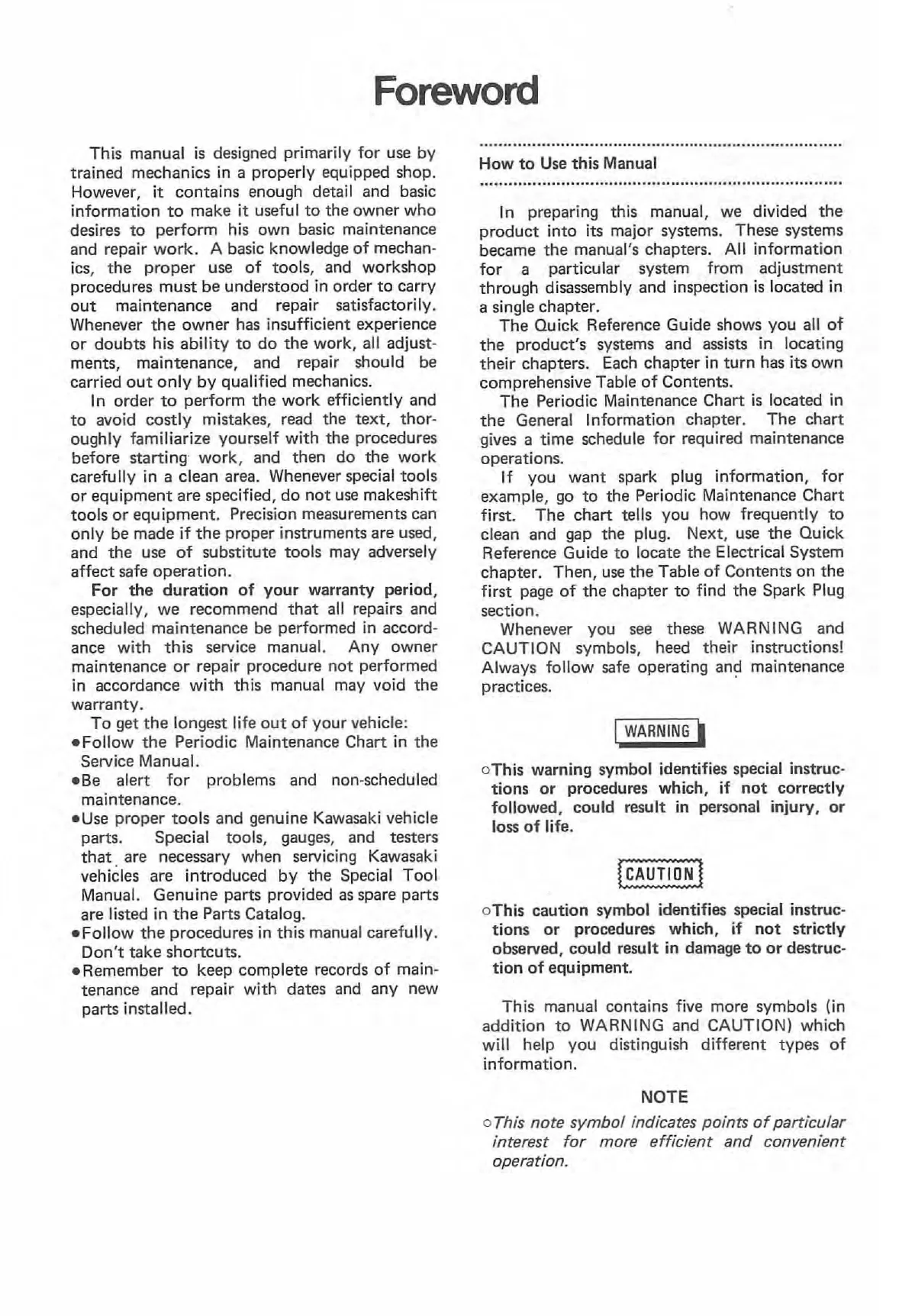

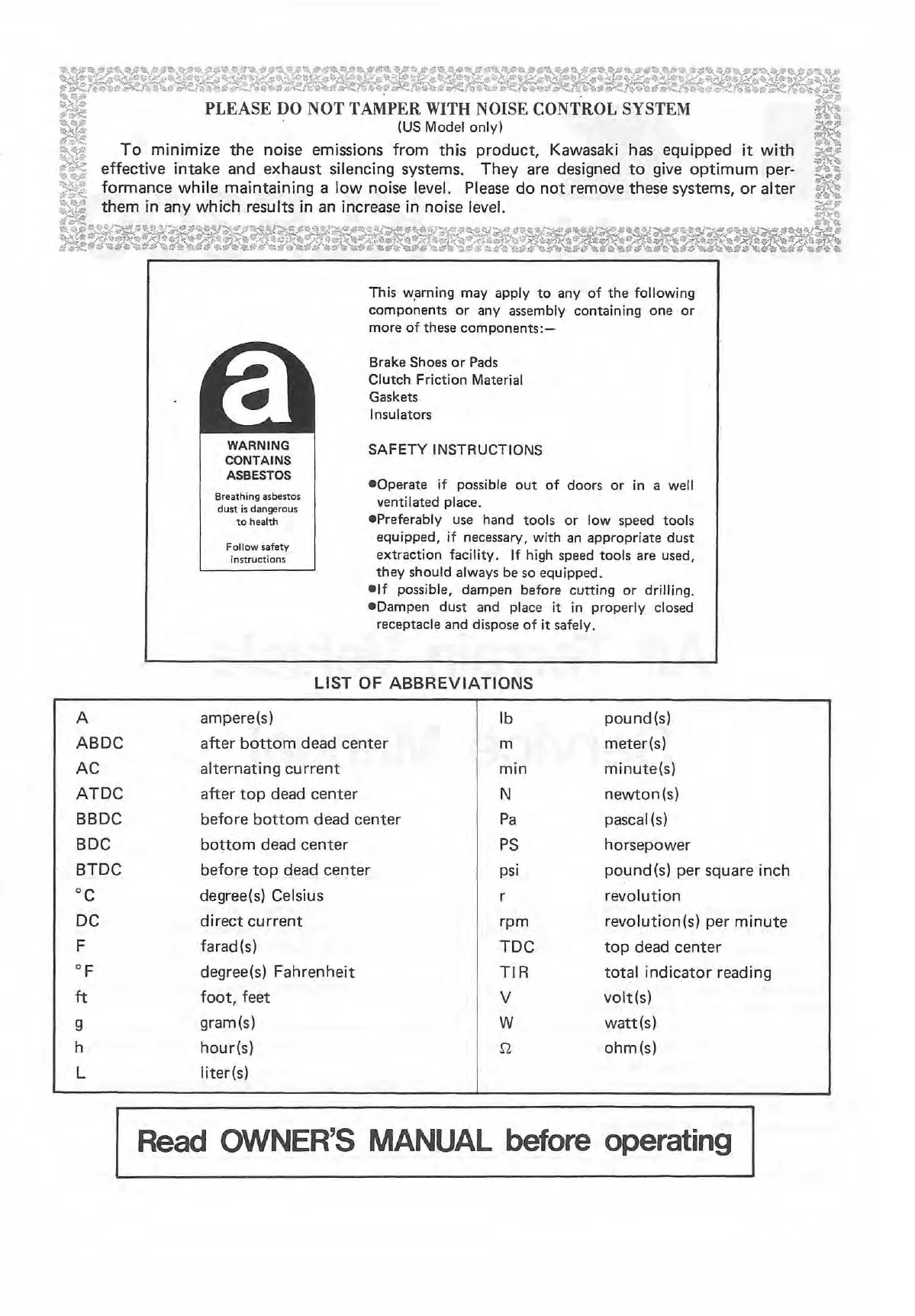

These publications were written primarily for trained mechanics in properly equipped shops, with supporting information for owners performing basic maintenance and repair who already understand mechanical work, tools, and workshop procedures.

Document Scope and Structure

The compilation covers air-cooled, SOHC four-stroke single-cylinder engines and separates the original service information from later model changes. Its three document blocks are:

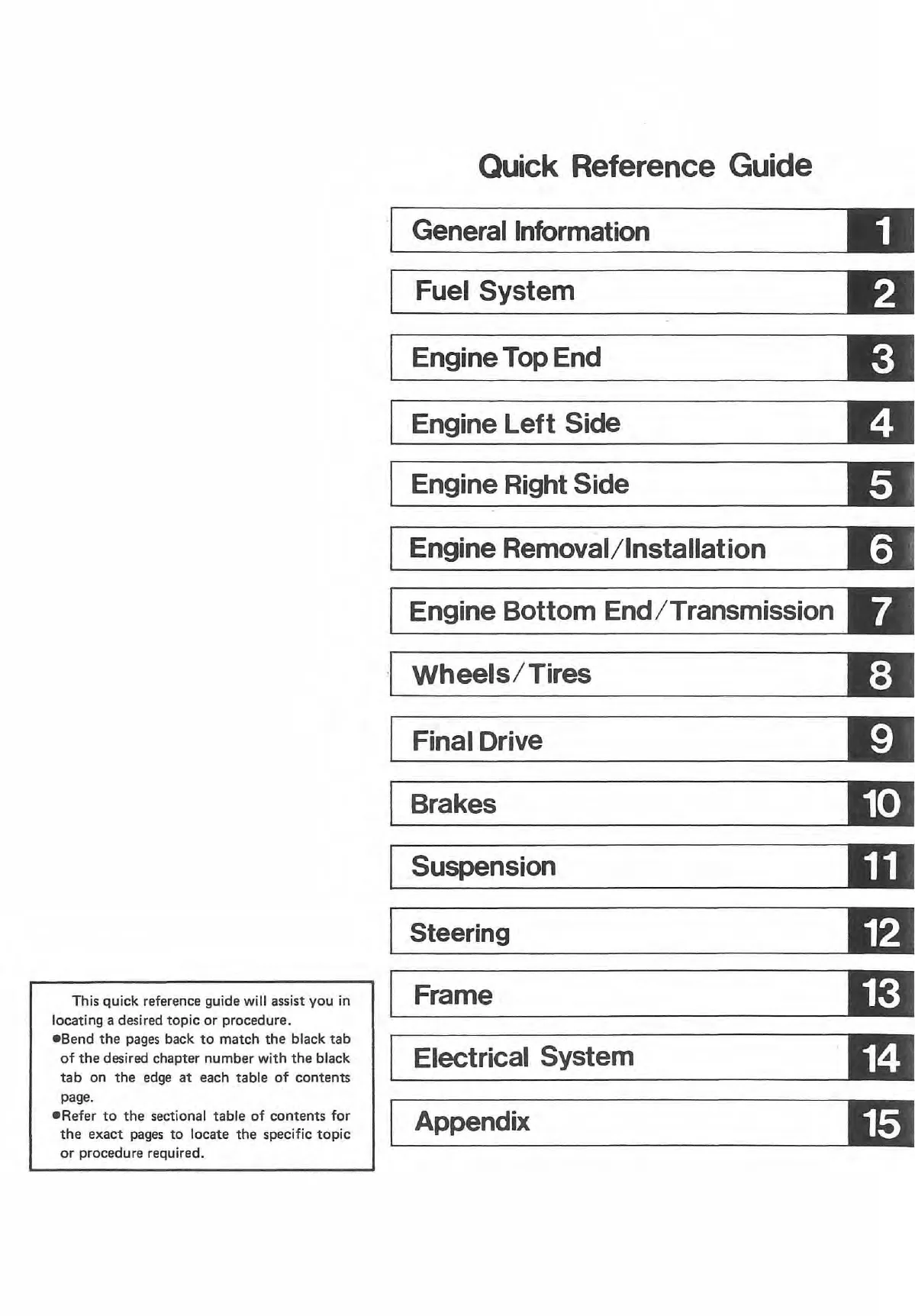

Counts include the covers and blank pages within each block. The base manual has 15 system chapters and a quick reference guide. The supplements supply model-specific changes and are intended to be used with the base information. Their forewords reference base-manual P/N 99924-1057-02, while earlier update chapters cite 99924-1057-01.

U.S., Canadian, U.K., Australian, and European differences appear in the specifications and electrical drawings. California-specific material addresses carburetor settings and breather routing. Selected U.K. sections add cooling-fan and carburetor-heater diagnosis, including heater-control and thermostatic-sensor tests.

The configuration differences matter when selecting procedures. A1/A2 coverage includes hydraulic front drum brakes; the B- and C-series supplements introduce front disc-brake service. The 2WD drivetrain uses a five-speed transmission plus reverse, while the 4x4 adds high/low gearing, front and rear propeller shafts, and a front limited-slip differential.

Engine and Driveline Repair Details

Top-end inspection extends to valve guides, rocker arms and shafts, cam-chain guides and tensioners, and cylinder boring and honing. Compression-diagnosis tables distinguish possible valve, gasket, piston, and cylinder faults. The valve-seat section explains how excessive grinding can sink a valve too deeply into the head, making cylinder-head replacement necessary.

Bottom-end coverage includes crankshaft alignment, connecting-rod inspection, balancer timing, and oil-pump and relief-valve service. Later sections address the manual compression release, recoil-starter rebuilding, and starter torque limiter. Crankshaft disassembly and reassembly are specifically assigned to experienced mechanics with the necessary equipment.

Final-drive work goes beyond removing gearcases. Procedures cover bearing preload, bevel-gear backlash, tooth-contact checks, and shim selection. The 4x4 material adds limited-slip clutch inspection and torque measurement. Component-specific cautions explain how excessive pinion-bearing preload can damage the tapered roller bearings.

Technical Data and Maintenance Preview

Illustrated references include the Valve Seat Repair flowchart and Full Time 4 Wheel-Drive Mechanism layout. The Front Final Bevel Gear Adjustment Procedure chart accompanies gear-setting work, while Ignition System Circuit and Charging System Circuit drawings support electrical fault tracing. Regional wiring diagrams distinguish lighting, switch, accessory, and optional heater arrangements.

Exploded views identify assembly relationships, lubrication points, locking agents, and replacement parts. Reference tables provide component torque specifications, fluid capacities, piston-to-cylinder clearances, wear limits, valve-train inspection data, ignition timing, and electrical test values. Cylinder-head fastening information distinguishes new and used components.

Special-tool references identify equipment for specific jobs, including Pilot Screw Adjuster “A” 57001-1239, Crankshaft Jig 57001-1174, and Kawasaki Hand Tester 57001-1394. Periodic maintenance charts and symptom-based troubleshooting sections cover starting, poor running, overheating, shifting, drivetrain noise, braking, and charging faults.

All service data is provided for informational reference. Exercise professional judgment and follow the manual’s safety precautions for fuel handling, vehicle support, and brake work.
