1995–2004 Kawasaki Lakota 300/Lakota Sport KEF300 ATV Service Manual

This Kawasaki service manual covers the 1995–2004 Lakota 300 and Lakota Sport KEF300 ATVs. It combines the main service and repair chapters with supplements for the KEF300-A6 and KEF300-B1 through B4 models.

• Fuel system: Carburetor removal, disassembly, cleaning, inspection, and fuel-level adjustment, plus throttle and choke cables, air-cleaner service, and fuel-tank inspection.

• Engine repair: Cylinder-head and valve work, camshaft timing, cylinder and piston inspection, engine removal, crankcase splitting, and crankshaft and balancer service.

• Clutches and transmission: Primary and secondary clutch inspection, one-way clutch checks, transmission shaft assembly, shift-fork and drum inspection, and reverse-cable adjustment.

• Brakes and final drive: Master-cylinder and caliper service, brake bleeding, parking-brake adjustment, chain and sprocket maintenance, and rear-axle bearing replacement.

• Suspension and steering: Shock preload adjustment, suspension-arm and swingarm bearing service, wheel alignment, and steering-stem, tie-rod, and steering-knuckle inspection.

• Electrical diagnosis: Charging and ignition tests, starter-motor service, relay checks, wiring diagrams, and switch continuity tables.

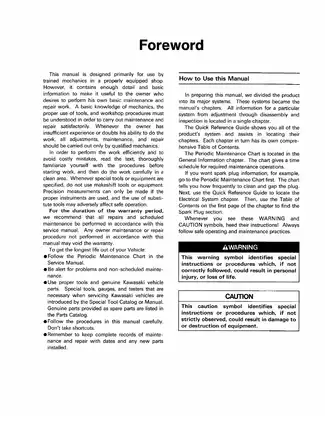

Written primarily for trained mechanics in a properly equipped shop, the manual also supports owners doing basic maintenance and repair who understand mechanical principles, tool use, and workshop procedures.

Carburetor and Intake Service

The fuel-system chapter details float-valve and vacuum-piston inspection, along with air-cleaner housing and surge-tank removal. Separate California carburetor specifications identify differences in the fuel-system data.

Fuel-level checks and pilot-screw adjustment reference Fuel Level Gauge 57001-1017 and Pilot Screw Adjuster 57001-1239. The cleaning cautions explain how compressed air applied to an assembled carburetor can crush the float or damage the vacuum-piston diaphragm.

Engine Rebuilding and Clutch Inspection

Top-end coverage extends to valve-seat repair, cylinder boring and honing, piston-ring inspection, and camshaft-chain service. Cylinder-head installation includes a two-stage tightening procedure with different final torque values for new and reused bolts.

Compression troubleshooting tables connect test results with possible valve, cylinder-head, piston, and ring faults. These references help narrow the area requiring inspection before committing to a teardown.

The left-side engine chapter covers the recoil starter, starter clutch, starter chain, and torque limiter. Right-side coverage separates primary clutch shoe and housing wear from secondary clutch plate, spring, hub, and release-mechanism inspection, and includes oil-flow and oil-pressure tests.

The cam-chain section warns that turning the engine with the tensioner removed can cause engine damage. Crankshaft disassembly and reassembly require experienced mechanics and the specified measuring equipment.

Transmission, Brakes and Chassis Work

The bottom-end chapter covers transmission shaft disassembly and assembly, gear-dog inspection, shift-fork and drum wear, and balancer timing. The troubleshooting guide also addresses slipping clutches, difficult shifting, and jumping out of gear.

Chassis sections include wheel-hub and rear-axle bearings, brake-disc wear and runout, and frame-component removal. Shock service covers preload adjustment, mounts, inspection, and replacement; internal shock rebuilding is outside its scope.

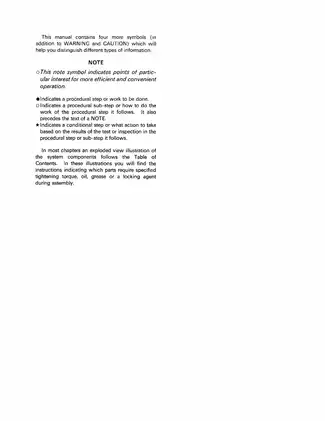

Exploded views and torque-and-locking-agent tables identify assembly requirements. The periodic maintenance chart and cable, wire, hose, and pipe routing views support scheduled service and reassembly.

Electrical Tests and Model Supplements

Chapter 14 includes the Charging System Circuit, Ignition System Circuit, Electric Starter System Circuit, and Lighting System Circuit diagrams. The IC igniter resistance table identifies terminal combinations and specifies Kawasaki Hand Tester 57001-1394 for its readings.

Supplements 16, 17, and 18 document the applicable changes for the later models. These include separate U.S. and European wiring diagrams for KEF300-A6, frame and lighting information for KEF300-B1/B2, and brake-light switch checks plus revised fuel and lubrication data for KEF300-B3/B4.

Each supplement must be used with the preceding chapters. Follow the manual’s safety warnings for the loaded recoil spring and flammable fuel systems, and seek qualified assistance when a procedure exceeds your experience or equipment.

A Preview of Compression, Valve and Clutch Specifications

These examples are a small selection of the inspection and adjustment data provided in the manual.

The KEF300 cylinder-compression range is 795–1,240 kPa (115–179 psi) with the electric starter at 500 rpm. Test conditions include a fully charged battery, a wide-open throttle, and warming the engine beforehand if it will run.

Intake valve clearance is 0.10–0.15 mm with the engine cold. Primary clutch shoe groove depth is listed as 0.7 mm standard, with a 0.3 mm service limit for wear assessment.

PDF Bookmarks and Page Breakdown

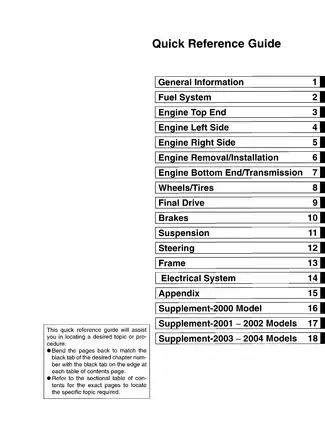

Search, navigation and diagram detail: PDF text search is unavailable. Embedded bookmarks lead to the main chapters, supplements, and base wiring diagram. Small wire codes and switch-table labels require zooming for comfortable reading.

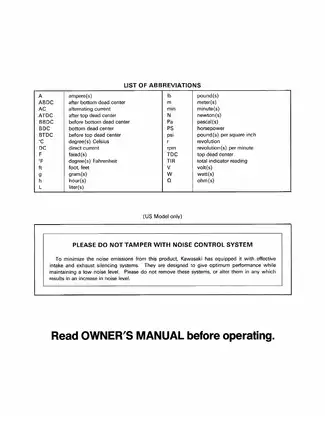

The download is one printable, 295-page PDF in English. This total includes five opening pages, 242 pages covering Chapters 1–15, three supplements totaling 47 pages—2000: 15 pages; 2001–2002: 21 pages; 2003–2004: 11 pages—and one closing model-application page. The three blank separator pages are already included in the supplement counts.
