Yamaha Badger 80 YFM80 ATV Service Manual Set, 1992–2001

Use the base manual as the main repair reference and consult the supplement for the specifications and electrical details that apply to the later configurations.

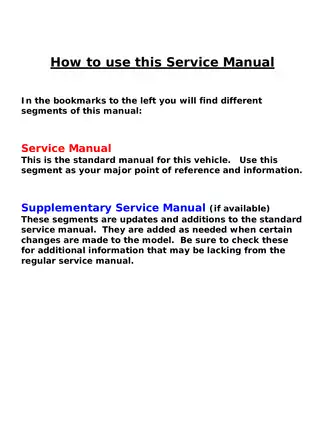

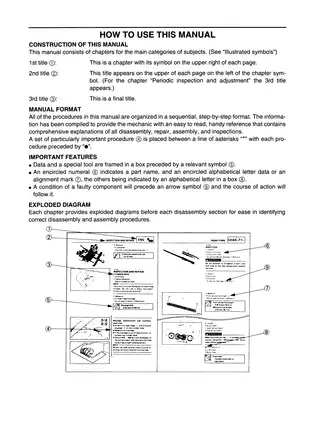

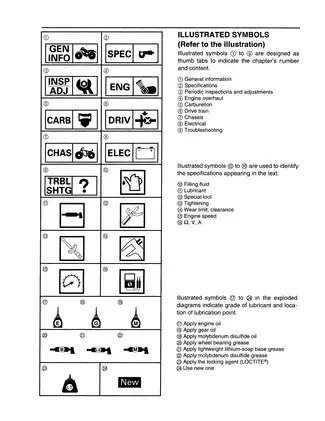

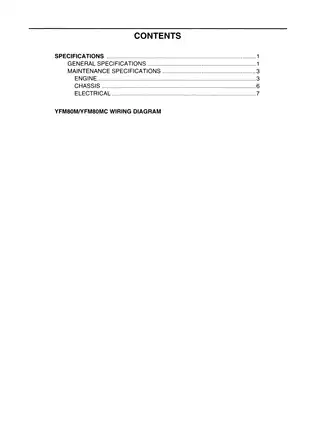

PDF Bookmarks, Text Search and Diagram Detail

Navigation and wiring detail: Technical pages do not support PDF text search. Embedded bookmarks provide access to the main chapters and many subsections. Small wire-color codes and connector labels on the full-page wiring diagrams require zooming for comfortable reading.

Supplied as one printable, English-language PDF with 212 pages total, including two preliminary pages. The wiring sheets are included in the publication page counts above.

Engine Overhaul, Chassis Service and Electrical Fault Tracing

The following highlights are a selection of the contents. Other covered topics include speed-limiter adjustment and battery inspection.

• Maintenance and adjustment: Periodic service schedules, cam-chain tensioning, cold valve-clearance checks, ignition-timing checks and compression testing.

• Engine overhaul: Step-by-step removal, crankcase separation, cylinder-head and piston inspection, valve-guide replacement and valve-seat reconditioning.

• Clutch and transmission: Centrifugal automatic clutch disassembly and setup, starter-clutch inspection, gear-engagement checks and shift-fork inspection.

• Carburetion: Mikuni VM16SH removal, disassembly and inspection, with float-height, fuel-level and idle-speed adjustment procedures.

• Brakes and chassis: Drum-brake inspection, wheel-bearing replacement, steering-knuckle and tie-rod service, plus leading-arm front suspension and rear swingarm inspection.

• Electrical diagnosis: CDI ignition, electric-start, charging and neutral-indicator fault tracing, supported by circuit diagrams and model-specific wiring diagrams.

Written for mechanics, the manual specifies the special tools and electrical test equipment needed for the documented procedures.

Engine Assembly and Drivetrain Setup

Repair planning: The engine-removal section identifies the cylinder head, cylinder, piston, clutch and CDI magneto as components that can be serviced with the engine still mounted. This distinguishes those jobs from work requiring complete engine removal and crankcase separation.

Assembly references: Shaft-drive backlash limits, middle-driven-gear shim-selection charts and crankcase tightening-sequence illustrations can be consulted alongside the assembly procedures at the workbench. Internal inspection sections cover piston-ring clearances, crankshaft measurements, clutch wear and transmission engagement.

The piston-pin section cautions against hammering the pin out, which risks piston damage. Oil-pump assembly notes also warn of engine damage if the crankcase oil passages are left without assembly lubrication.

Carburetor Identification and Adjustment

The supplement distinguishes the 3GB 00 and 4EMS 00 carburetor identification marks and provides separate jetting specifications for the California configuration. These tables should be read alongside the base manual’s carburetor procedures.

The fuel-level section specifies gauge 90890-01312 and illustrates the measurement relative to the carburetor body edge.

Brake, Steering and Suspension Work

Brake inspection includes lining thickness, drum wear and camshaft condition. Steering assembly details identify tie-rod orientation, knuckle bushings and the relationship between linkage setup and toe-in adjustment.

Suspension procedures cover removal, inspection and installation. Defective shock rods, leaking dampers or fatigued springs call for shock-absorber assembly replacement.

For brake and raised-chassis work, follow the manual’s support and safety precautions and consult a certified mechanic if you are unsure about a specific procedure.

Circuit Diagrams and Symptom Diagnosis

The YFM80(D) and YFM80M/YFM80MC wiring diagrams show model-specific connections and wire-color codes. Ignition and electric-start circuit diagrams accompany the diagnostic checks; lubrication diagrams and cable-routing views support mechanical assembly and harness placement.

Starting-system tests distinguish starter-motor faults from problems involving the starting circuit cut-off relay, neutral switch or rear brake switch. Separate troubleshooting references address hard starting, poor idle, gear-shifting problems, clutch slipping or dragging, drivetrain noise and unstable handling.

Preview: Cylinder-Head, Valve and Pickup-Coil Specifications

The base manual specifies 12 Nm for the cylinder-head cap nuts and a cold intake valve clearance of 0.05–0.10 mm. These values accompany component-specific tightening guidance and valve-adjustment procedures.

For pickup-coil testing at 20°C (68°F), the YFM80(D) specification is 297–363 Ω; the YFM80M/YFM80MC supplement specifies 264–396 Ω. Each range belongs to its respective electrical specification.
