2007–2009 Kawasaki Jet Ski Ultra LX JT1500 Factory Service Manual (P/N 99924-1376-03)

• Exact model coverage: Applies to the 2007 JT1500C7F, 2008 JT1500C8F, and 2009 JT1500C9F Ultra LX. Kawasaki's application chart gives beginning HIN patterns US-KAW40001□607, US-KAW50001□708, and US-KAW30001□809; the boxed position is the craft-specific digit.
• Engine repair depth: Covers engine removal and installation, camshaft-chain timing, cylinder-head and valve service, piston and cylinder inspection, crankcase splitting, crankshaft and connecting-rod work, and bearing-insert selection.
• DFI fault finding: Provides meter-based self-diagnosis, service-code and fail-safe charts, KDS access to stored faults, throttle-sensor adjustment, sensor circuit tests, injector checks, and fuel-pump pressure and flow testing.
• Jet propulsion and controls: Details drive-shaft and holder service, pump removal and internal disassembly, impeller and pump-case inspection, steering and shift-cable adjustment, adjustable steering-holder work, and reverse-bucket service.
• Electrical service: Includes the platform wiring diagram plus procedures for the battery, starter, magneto, regulator/rectifier, ignition, multifunction meter, Kawasaki Smart Steering, immobilizer, relays, switches, and key registration.
• Marine-specific systems: Documents cooling and bilge flushing, model-specific flow diagrams, exhaust and water-box-muffler service, submersion recovery, seasonal storage, hose and harness routing, exploded views, torque data, and inspection limits.

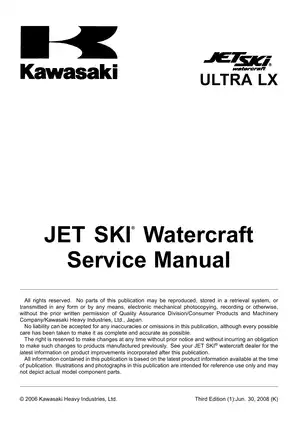

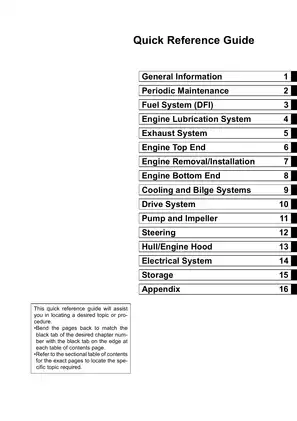

This 479-page PDF contains Kawasaki Service Manual P/N 99924-1376-03, Third Edition (1), dated June 30, 2008. Kawasaki designed it primarily for trained mechanics working in a properly equipped shop; owners with basic mechanical knowledge, proper tools, and workshop-procedure experience can also use it for basic maintenance and repair.

Engine and Fuel System Documentation

The 1,498 cc water-cooled DOHC four-cylinder is treated as a repairable assembly, not merely as a maintenance item. The engine chapters move from compression and valve-clearance checks into camshaft timing, TDC location, cylinder-head removal, valve-guide and valve-seat repair, piston and ring inspection, crankcase separation, and crankshaft and connecting-rod measurement. Color-coded selection tables support main-bearing and connecting-rod bearing replacement. The semi-dry-sump lubrication material covers the oil cooler, oil separator, oil pan, oil pump, relief valve, screen, and pressure switch, with model-specific oil-flow charts.

The Fuel System (DFI) chapter combines mechanical service with circuit-level diagnosis. It explains the meter's User and Dealer self-diagnosis modes, the service-code/character table, ECU fail-safe responses, and retrieval or erasure of stored codes through the Kawasaki Diagnostic System. Tests are provided for the throttle, inlet-air, water-temperature, oil-temperature, crankshaft, camshaft-position, and vehicle-down sensors. Fuel-injector signal and unit tests, ECU power-supply checks, throttle-body and idle-speed-controller service, fuel-line pressure and flow tests, and fuel-pump, relay, tank, and vent-valve procedures are also covered.

Electrical, Propulsion, and Model-Year Detail

Electrical troubleshooting extends beyond the main wiring diagram. Charging and ignition circuits, starter-motor inspection, meter-unit checks, steering-position-sensor testing, immobilizer inspection, and lanyard-key registration are documented with connector views and test specifications. On the mechanical side, the manual follows the drivetrain from the engine coupling through the drive shaft and single-stage jet pump, including bearing and seal replacement, impeller clearance checks, steering setup, and reverse-system adjustment.

Year-specific callouts matter when parts are already off the craft. The C7F-C8F chapters cover the clean-air valves and separate breather case, while those models use left and right water-box mufflers; the C9F uses a single left-side muffler. Separate hull views, oil and cooling/bilge flow charts, and cable-wire-hose routing pages show the later configuration. The exhaust outlet and speed sensor also change sides on the C9F.

Diagrams, Tools, and Service Data

Named visual references include the Fuel System Diagram, DFI System Wiring Diagram, Engine Oil Flow Charts, Cooling and Bilge System Flow Diagrams, Charging System Circuit, and Steering Position Sensor Circuit. Chapter exploded views identify tightening points and required oil, grease, sealant, or locking agent. Related tables supply component torque specifications, fluid data, electrical baselines, runout and clearance limits, wear limits, and bearing-selection information.

Special-tool listings identify the KDS software (57001-1503), signal converter (57001-1504), communication cable and adapter (57001-1470), and KDS adapter cable (57001-1696). Other job-specific tools include the throttle-sensor setting adapter (57001-1521), impeller holder (57001-1695), and key-registration unit (57001-1582).

Scope and Repair Cautions

This publication is specific to the listed Ultra LX model codes and is not a substitute for Kawasaki's separate Parts Catalog. Fuel-system repair is accompanied by pressure, spill, ventilation, and ignition-source precautions. The manual also warns that turning the crankshaft with the cam-chain tensioner removed can disturb timing and damage the valves, while laying the hull on its right side can let exhaust-system water enter and seriously damage the engine.
