Yamaha YP400X Majesty 2008 Service & Repair Manual (P/N LIT-11616-21-34)

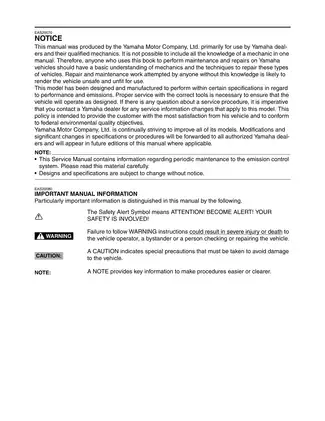

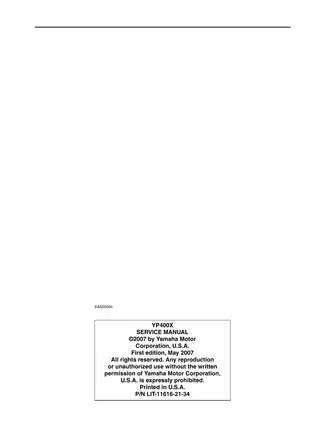

Yamaha factory service manual P/N LIT-11616-21-34, manual No. 5RU-28197-11, first edition May 2007, for the 2008 YP400X Majesty, model 5RUT.

PDF Search, Bookmarks and Wiring Detail

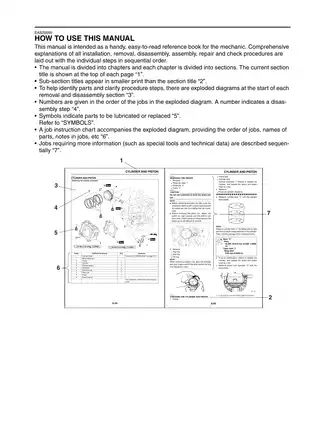

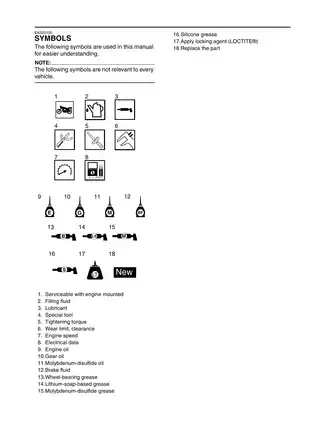

Text search and schematic detail: The main text is searchable, with embedded bookmarks for chapters and subsections. Small wire-color and connector labels require zooming in the FI and full-vehicle wiring diagrams; those schematic labels are not searchable.

The ZIP contains one printable English PDF with 343 pages, including eight front-matter pages, 14 further blank or header-only pages, the rear cover, and the appended one-page wiring diagram.

Engine, CVT and FI Service Coverage

Selected contents are outlined below; other topics include instrument-display functions and headlight-beam adjustment.

• Engine repair: Engine removal and installation, camshaft and timing-chain service, cylinder-head and valve work, piston inspection, crankcase separation, and crankshaft and balancer-shaft service.

• CVT and final drive: Primary and secondary sheave removal, clutch and V-belt inspection, spring-compressor procedures, sheave reassembly, and final-transmission inspection and assembly.

• Brakes and chassis: Wheel service, caliper and master-cylinder repair, hydraulic bleeding, handlebar service, fork overhaul, steering-head work, rear-shock checks, and rear-arm inspection.

• Cooling system: Radiator removal and pressure testing, thermostat testing, water-pump inspection and seal installation, cooling-system checks, and coolant replacement.

• Fuel delivery and emissions: Fuel-tank and pump service, injector and throttle-body checks, pressure-regulator testing, throttle-position sensor checks, and air-induction diagnosis.

• Electrical troubleshooting: Circuit diagrams and fault-finding paths for ignition, electric starting, charging, lighting, signaling, and radiator-fan control, with component tests.

• FI diagnosis: ECU self-diagnosis, fail-safe tables, diagnostic-monitoring tests, sensor readings, actuator checks, malfunction-history handling, and fault-code-specific troubleshooting.

The publication is written primarily for Yamaha dealers and their qualified mechanics and assumes a working knowledge of mechanics and vehicle repair techniques.

Engine Repair and Periodic Maintenance

Exploded assembly views and job charts identify parts, work order, replacement items, lubrication points, and related torque data. Step-by-step procedures cover internal engine work, including valve-guide replacement, valve-seat checks and lapping, piston-ring inspection, crankshaft journal-bearing selection, and balancer-shaft installation.

Oil-pump inspection and assembly, starter-clutch checks, and starter-motor disassembly and repair are also included. Bearing color codes and crankcase markings support selection of replacement crankshaft journal bearings.

Camshaft installation: The manual warns that crankshaft movement during installation can cause damage or incorrect valve timing, while uneven cap tightening can damage the cylinder head, caps, and camshafts.

Periodic maintenance includes valve-clearance adjustment, idle and throttle-cable checks, ignition-timing checks, compression testing, and engine and final-transmission oil service. Air-filter and V-belt-case filter work, fuel-line and exhaust inspection, coolant checks, brake inspection, steering-head adjustment, fork checks, wheel and tire inspection, battery service, and fuse checks are covered.

CVT, Brakes and Suspension Detail

The CVT instructions distinguish lubricated assembly points from the V-belt and sheave running surfaces that must remain free of grease. Secondary-sheave disassembly and reassembly use the specified spring compressor and fixed block; belt installation includes the replacement-indicator reset.

Brake sections distinguish front-caliper service from the rear caliper’s brake-lock mechanism and piston alignment requirements. Wheel-bearing replacement and static balancing accompany the wheel procedures, while steering-head service includes bearing-race replacement and ring-nut adjustment.

Fork overhaul: The manual explains how excessive separation force can damage seals and bushings, and how bottoming the inner tube can damage the oil-flow stopper. Rear-shock coverage concerns removal, inspection, installation, and preload adjustment.

Fuel-system, hydraulic-brake, battery, and spring-loaded CVT work should be carried out with suitable vehicle support, electrical isolation, and the specified tools.

Fuel Delivery and Cooling-System Tests

Configuration identifiers include the AISAN throttle body marked 5RUT 30 and 5RU/AISAN fuel pump. Those identifiers help match the covered configuration before repair or parts selection.

Fuel-system procedures address pump installation, fuel-hose connector retention, pressure-regulator operation, throttle-body diaphragm and piston-valve checks, and air-induction reed-valve inspection. Cooling-system material adds radiator-cap and leak testing, thermostat opening checks, and water-pump mechanical-seal installation.

FI Fault Isolation and Electrical References

The FI material follows the system from component layout through fault isolation. It identifies the 5RU31/Yamaha ECU, injection-system relay, fuel pump and injector, ISC valve, throttle-position sensor, intake-air pressure and temperature sensors, coolant-temperature sensor, crankshaft-position sensor, lean-angle sensor, and related warning-light and meter circuits.

Code-specific tables link symptoms to connectors, wiring checks, component tests, and reinstatement methods. These references support systematic fault isolation before parts replacement; intake-pressure faults, for example, are separated into electrical-circuit and sensor-hose problems.

Electrical component tests cover switches, relays, ignition and charging components, sensors, the fan motor, and the V-belt reset coupler. Starter-motor specifications identify the SM-13/MITSUBA unit.

Named visual references include Outline of the FI System, Cooling System Diagrams, Cable Routing, Starting Circuit Cut-off System Operation, Fuel Injection System – Circuit Diagram, and the 2008 YP400X Wiring Diagram.

A separate troubleshooting chapter addresses hard starting, incorrect idle, poor medium- and high-speed performance, overheating or overcooling, clutch faults, weak braking, fork problems, unstable handling, and lighting or signaling failures.

Factory Specifications and Special Tools

Assembly-specific reference tables cover engine, chassis, and electrical specifications, with dedicated torque sections, lubrication charts, maintenance schedules, capacities, clearances, wear limits, bearing data, and electrical test values.

The special-tool section lists international and U.S./Canada numbers where applicable. CVT and engine examples include the sheave spring compressor 90890-04134 / YM-04134 and valve spring compressor 90890-04019 / YM-04019.

Cooling and fuel tests reference radiator cap tester 90890-01325 / YU-24460-01, pressure gauge 90890-03153, and fuel-pressure adapter 90890-03181. Fork-seal driver components 90890-01367 and 90890-01381 are also identified, helping mechanics plan the required equipment before disassembly.

A Preview of Valve and V-Belt Inspection Data

For cold-engine valve checks, the specified intake clearance is 0.15–0.20 mm and exhaust clearance is 0.25–0.30 mm. The adjustment section includes valve-pad selection and clearance rechecking.

The V-belt inspection section lists a standard belt width of 30 mm and a wear limit of 27 mm, alongside checks for cracks, damage, and contamination.
