Yamaha YZF750 1993–1998 Service Manual (P/N LIT-11616-09-20)

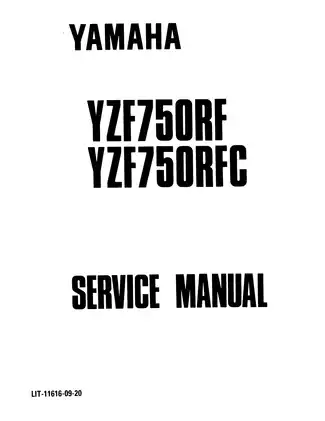

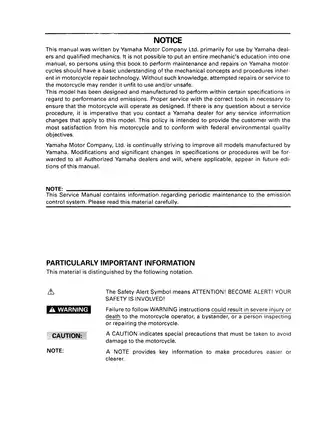

The 448-page PDF contains Yamaha's factory YZF750RF/YZF750RFC Service Manual (literature number LIT-11616-09-20, first edition, November 1993) together with the YZF750RH/YZF750RHC Supplementary Service Manual (LIT-11616-09-71, first edition, February 1995). A separate set cover is marked LIT-11616-ZF-75, and the supplement identifies 4LE-28197-10 as the RF/RFC base-manual reference required for complete RH/RHC service information. Yamaha states that the material was written primarily for dealers and qualified mechanics, making it suited to technicians who already understand motorcycle repair fundamentals and have access to the specified service tools.

• Exact 4LE coverage: RF/RFC specifications are separated into 4LE1 USA and 4LE2 California configurations, with engine serial starts 4LE-001101 and 4LE-000101. The RH/RHC supplement covers 4LE3 USA and 4LE4 California, starting at 4LE-003101 and 4LE-004101. California-specific evaporative-emissions hose routing is included.
• Engine overhaul work: Covers engine removal and remounting, complete disassembly, inspection, repair, and reassembly of the cylinder head, valves and guides, camshaft case, timing and HY-VO chains, pistons, crankshaft, and connecting rods. The clutch, six-speed transmission, shift mechanism, oil pump, starter clutch, generator, and lubrication components receive the same workshop-level treatment.
• Fuel, cooling, and exhaust systems: Details removal, disassembly, inspection, assembly, synchronization, and fuel-level adjustment for the MIKUNI BDST38/4 carburetors. Radiator, oil cooler, thermostatic valve, water pump, coolant service, and EXUP cable and valve checks are also covered.
• Chassis and hydraulic repair: Includes wheel and static-balance procedures, brake pad service, caliper and master-cylinder overhaul, hydraulic-clutch service, and brake and clutch bleeding. Front-fork teardown and steering-head service are documented along with rear-shock removal and inspection, swingarm-link work, and drive-chain and sprocket inspection; the sealed shock is not internally rebuilt.
• Electrical fault isolation: Provides circuit-guided testing for the ignition, electric starter, charging, lighting, signal, cooling-fan, fuel-pump, and EXUP systems. The RH/RHC supplement adds tachometer-displayed self-diagnosis for EXUP and fuel-level circuit faults.
• Factory reference data: Supplies component torque tables, fluid and lubricant specifications, inspection and wear limits, clearance data, electrical test values, cable-routing layouts, exploded assembly views, and separate full wiring diagrams for RF/RFC and RH/RHC models.

Service Depth Beyond Routine Maintenance

The base manual follows the liquid-cooled 749cc DOHC, forward-inclined parallel four-cylinder engine from scheduled checks through internal repair. Periodic service coverage includes valve-clearance adjustment, compression measurement, ignition-timing checks, carburetor synchronization, throttle and EXUP cable adjustment, and hydraulic-system bleeding. General troubleshooting then works through hard starting, poor idle or high-speed performance, shifting and clutch faults, overheating, weak braking, fork leakage, unstable handling, lighting problems, and EXUP faults.

The engine chapters go well beyond remove-and-replace work. They provide inspection methods and service limits for the valve train, cylinders and pistons, crankshaft bearings, connecting rods, clutch pack, transmission shafts and gears, oil pump, cooling components, and related seals and bearings. Lubrication grades, coolant data, general and component-specific torque specifications, and electrical resistance and output checks are placed alongside the applicable repair sections.

RH/RHC Changes and Diagnostic Material

The 30-page RH/RHC supplement is not a stand-alone overhaul manual. It updates the RF/RFC baseline with its own identification data plus revised engine, chassis, and electrical specifications. The additional pages cover cable routing and cowling layout, front-fork and rear-shock settings, a radiator/oil-cooler assembly view, self-diagnosis, troubleshooting, and a dedicated wiring diagram. This distinction matters when choosing carburetor, cooling, suspension, or ignition data for a 4LE3 or 4LE4 machine.

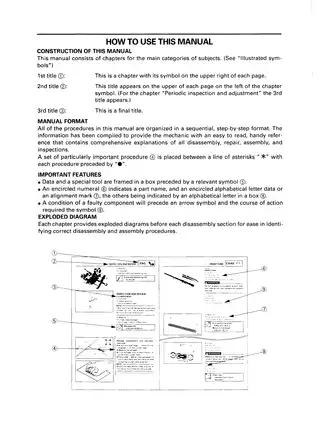

Named visual references include coolant-flow and engine-lubrication diagrams, cable-routing views, fuel-pump and EXUP circuit diagrams, and model-specific complete wiring diagrams. Exploded drawings appear ahead of disassembly sections to identify parts, fasteners, lubricant points, replacement items, and tightening locations.

Factory tool callouts identify the YU-08030-A vacuum gauge with YM-03060 adapter for carburetor synchronization, the YM-04019 valve-spring compressor with valve-specific attachments, and the YU-24460-01 radiator-cap tester. Chassis and electrical work calls for tools such as the YM-01441 fork-spring compressor, YM-01442 fork-seal driver, YM-34487 dynamic spark tester, and YU-03112 pocket tester.

Yamaha cautions that uneven camshaft-cap removal or tightening can damage the cylinder head, caps, and camshaft. It also specifies fresh brake fluid for cleaning brake and hydraulic-clutch internals because solvent can swell and distort the seals. Work involving brake hydraulics, pressurized coolant, compressed fork springs, or engine removal should follow the manual's safety warnings and final torque and operational checks before the motorcycle is returned to service.
