1991–1997 Lexus GS300 Service & Body Repair Manual Collection
1,559 Pages • Printable PDF • 39.40 MB • Download
Lexus Models Covered & Key Technical Specifications
Model & Model Codes: GS300 (JZS147 series; A340E automatic transmission)
Model Years: 1991–1997 (1991, 1992, 1993, 1994, 1995,1996, 1997)
-
Refrigerant charge volume: 850 ± 50 g (29.92 ± 1.76 oz.)
-
Normally functioning refrigeration system (low pressure): 0.15–0.25 MPa (1.5–2.5 kgf/cm²)
-
Normally functioning refrigeration system (high pressure): 1.37–1.57 MPa (14–16 kgf/cm²)
-
Standard idle speed (clutch not engaged): Approx. 700 rpm
-
Standard idle speed (clutch engaged): Approx. 800 rpm
-
Compressor lock sensor resistance (at 20°C / 68°F): 1050 – 570 ohms

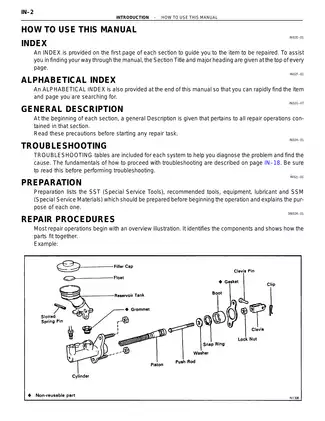

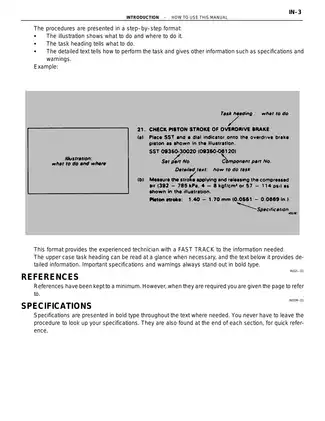

Lexus Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| Lexus GS300 service and repair manual sections | 1,449 |
| Lexus GS300 body repair manual sections — JZS147 series | 110 |
The service sections cover mechanical repair and system diagnosis, while the body repair material adds collision-repair methods, structural measurements, and panel-replacement information.
Coverage limits: The compilation has gaps in the original page sequences, including Body pages BO–10 through BO–87. Valve-body inspection and internal transmission repairs refer to the separate A340E/A341E repair manual, RM402U, which is not included.
Mechanical Service, Electrical Diagnosis and Collision Repair
-
Engine repair: Engine removal, cylinder-head and cylinder-block disassembly, bearing inspection, timing-belt replacement, valve adjustment, and cooling and lubrication service.
-
A340E transmission: Hydraulic pressure tests, stall and time-lag checks, shift diagnosis, valve-body removal, speed-sensor replacement, and transmission removal and installation.
-
Brakes and traction control: Master-cylinder and caliper service, parking-brake adjustment, ABS actuator testing, speed-sensor diagnosis, and TRAC bleeding procedures.
-
Steering and axles: Power-steering pump and rack overhaul, wheel-bearing replacement, suspension inspection, alignment adjustment, and rear-differential setup.
-
Climate control: Built-in A/C diagnostics, manifold-gauge troubleshooting, cooling-unit and heater-unit service, magnetic-clutch work, and sensor and servomotor testing.
-
Electrical and SRS: Circuit diagrams, connector views, terminal-value tables, charging and starting tests, body-electrical troubleshooting, and airbag-system diagnosis.
-
Collision repair: Body-dimension drawings, panel cutting and welding information, corrosion protection, sealing locations, and plastic-component handling precautions.
The service sections are written for technicians with an understanding of vehicle systems and basic electricity; the collision-repair material also calls for body-shop measuring and welding equipment.
Engine Repair and Fault Isolation
Cylinder-head coverage extends to valve guides, valve seats, camshaft bearings, and adjusting shims. Cylinder-block procedures include piston and connecting-rod inspection, crankshaft measurements, bearing selection, and assembly clearances.
Fuel-system diagnosis covers pressure and injector testing alongside SFI circuit inspections. Separate procedures address the volume air flow meter, idle air control valve, and Acoustic Control Induction System, with cooling-system and oil-pump service in their own sections.
The timing-belt inspection section links one-sided belt wear to belt-guide and pulley-alignment problems. Shim-selection charts and the specified valve-adjustment tool, SST 09248–55040, support valve-clearance work.
Transmission, Steering and Chassis Work
A340E troubleshooting combines symptom charts with road, hydraulic, and electrical tests. Its system diagram maps the ECM, shift solenoids, speed sensors, and related inputs; pressure-test evaluations distinguish possible control faults from hydraulic leakage.
Steering coverage includes vane-pump inspection, rack seals, preload adjustment, and progressive power-steering diagnosis. Rear-differential procedures address backlash, bearing preload, and tooth-contact patterns.
ABS and TRAC sections provide actuator checks and fault-isolation charts alongside conventional brake repair. Propeller-shaft coverage is limited to service and torque specifications plus a memo page; the referenced removal and installation pages are absent.
A/C Diagnostics and Component Service

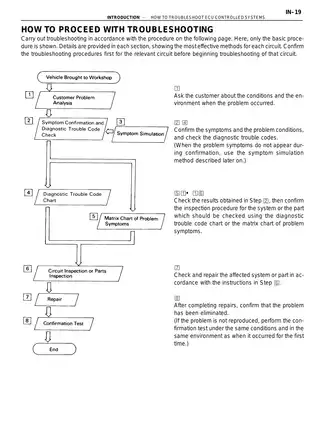

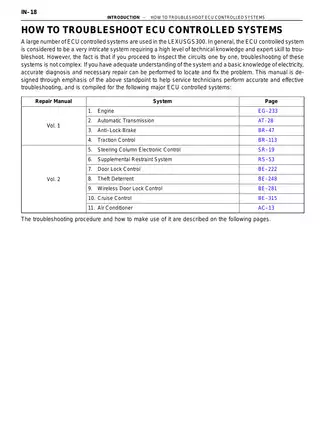

The manual explains customer problem analysis, diagnostic trouble-code retrieval, and symptom simulation using heat, vibration, and moisture conditions. These methods help narrow down intermittent faults before components are replaced.
A/C checks include panel-based sensor diagnostics and actuator tests, plus procedures using the Lexus hand-held tester. The compressor-lock-sensor wiring diagram and A/C lock-amplifier checks accompany terminal-value tables and connector views.
Room, ambient, evaporator, and engine coolant temperature sensors have dedicated circuit or component checks. Solar-sensor and damper-position signals are also covered. The Code 21 explanation distinguishes a solar-sensor fault from the code that can appear when the sensor receives insufficient light, helping avoid an unnecessary sensor replacement.
Manifold-gauge troubleshooting charts distinguish refrigerant shortage, circulation restrictions, compressor problems, and moisture freezing at the expansion-valve orifice.
Cooling-unit and heater-unit procedures cover the evaporator, expansion valve, and heater core. Other sections address the blower motor control relay, air-mix servomotors, water valve, receiver, and condenser. Heater removal references Body page BO–78 for instrument-panel access; that page is outside the included Body material.
Body Electrical Systems and Collision Repair
Combination-meter wiring diagrams and connector layouts support instrument-circuit diagnosis. Other electrical sections address door locks, theft deterrent, cruise control, power seats, and the power tilt/telescopic steering column.
The body repair material supplies engine-compartment, body-opening, underbody, and suspension-crossmember measurement drawings. Panel-replacement information identifies cut locations, weld points, and sealing areas; painting procedures are excluded.
Its high-strength-steel precautions explain the risk of panel warping during hammering and drill damage during spot-weld removal. Brake, refrigerant, SRS, and welding work requires the system-specific precautions and workshop equipment described in the manuals.
Selected Valve-Clearance and Compressor Specifications
Cold valve-clearance specifications distinguish intake valves at 0.15–0.25 mm from exhaust valves at 0.25–0.35 mm. The adjustment section pairs these ranges with shim-selection charts.
For the A/C compressor, standard magnetic-clutch clearance is 0.5 ± 0.15 mm. Compressor suction- and discharge-hose connections are specified at 10 N·m (7 ft-lbf), alongside the installation and leak-check information.
Searchable Text, Section Bookmarks and PDF Contents
Text access and diagram detail: Body text is searchable, and 23 embedded bookmarks open the main sections. Many diagram labels are embedded as images and cannot be located through text search. Small wiring labels need zooming; some diagram lettering remains less sharp than the surrounding text.
The collection is supplied as one printable English PDF with 1,559 pages. That total includes eight memo pages, the body-repair foreword, and its three-page appendix; the two publication totals above already include these pages.
