1968-1982 Chevrolet Corvette C3 Repair Manual - Shop Service & Parts Book
Comprehensive coverage for your 1968-1982 Chevrolet Corvette C3. Includes detailed repair sequences, specifications, and wiring diagrams for all models. Ref: 0786H
Manual Preview

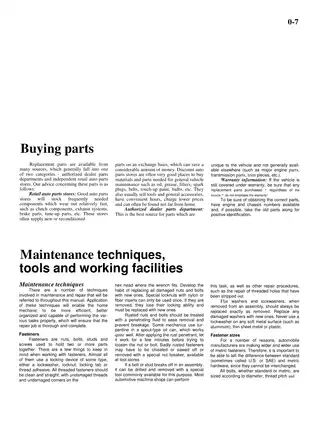

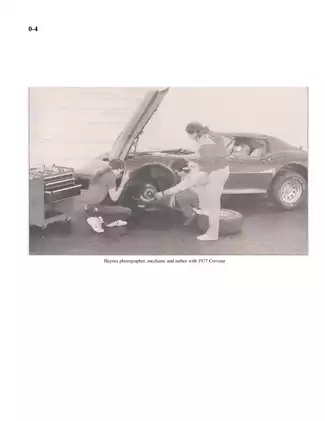

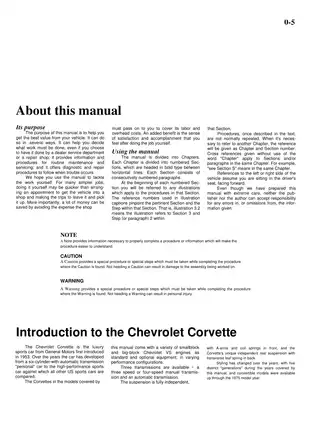

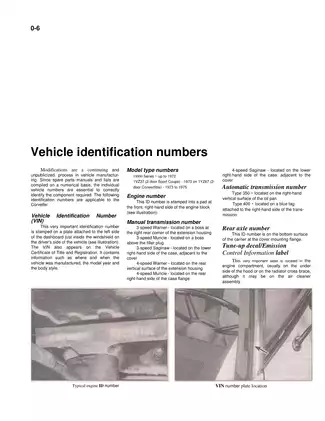

Sample pages from the 1968-1982 Chevrolet Corvette C3 Repair Manual - Shop Service & Parts Book manual
Purchase & Download
Models Covered & Key Technical Specifications
Practical Service Installation Manual: Chevrolet Corvette C3 (1968-1982) Repair-Index
Chevrolet Corvette C3 (1968-1982) (0786H) -- 1968-1982 Reference | Procedural Compendium | Engineering Package System RPM Specs: 800 rpm establishes the standard idle speed for most applications. Core Weight Data: 427 cu. in. signifies the standard engine displacement configuration. Specific Resolution Data: 454 cu. in. represents the larger engine displacement specification. Critical Deviation Limits: 4.0 x 3.48 in defines the standard cylinder bore diameter. Universal Throughput Data: 1-8-4-3-6-5-7-2 signifies the typical firing order sequence. Technical Mapping Configuration: 4.0 x 3.25 in establishes the standard stroke measurement.
Professional Workshop Service Manual & Technical Specifications
Practical Service Installation Manual: Chevrolet Corvette C3 (1968-1982) Repair-Index
Chevrolet Corvette C3 (1968-1982) (0786H) -- 1968-1982 Calibration Scope: Reference // Technical Benchmarks: Procedural // Calibration Scope: Engineering
The manual presents information on:
Parts identification is covered for engine variants and cylinder configurations. Removal procedures are documented for transmissions, including Muncie, Saginaw, and Warner types. Technical specifications are provided for engine components, including bore, stroke, and torque values. Factory specifications are documented for carburetion, ignition timing, and chassis lubrication. Engine rebuild procedures are documented for complete engine overhauls and component replacements. Torque specifications for clutch, flywheel, differential, and engine components are detailed.
Engine Systems Overview
The Chevrolet Corvette C3, a luxury sports car, has evolved significantly since its introduction in 1953. This manual covers models from 1968 to 1982, detailing various small-block and big-block V8 engines with different performance configurations. It also provides information on the available transmission options: three-speed or four-speed manual, and automatic transmissions. The suspension system, featuring independent A-arms and coil springs in front and a unique independent rear suspension with a transverse leaf spring in back, is also covered extensively.
Detailed System Coverage
This manual provides comprehensive documentation for the cooling, heating, and air conditioning systems, ensuring optimal performance and comfort. It includes procedures for radiator, water pump, thermostat, and heater core servicing, as well as air conditioning system checks and component replacement.
Fuel and Exhaust Systems
Explore the intricacies of the fuel and exhaust systems, covering everything from fuel tank maintenance to carburetor overhaul and adjustment. Detailed specifications for various carburetors, including Holley and Rochester models, are provided, along with procedures for idle speed, choke, and vacuum break adjustments.
Engine Electrical Systems
Understand the engine electrical systems, including the charging system, ignition system, and starting system. This section covers alternator, battery, starter motor, and ignition coil checks, replacement, and troubleshooting, ensuring your Corvette's electrical components are in top condition. Torque specifications for engine and transmission components are detailed in the specifications table.
