Chevrolet Corvette Sting Ray / ZR-1 1995 Owner's Manual (P/N 10242165 B)

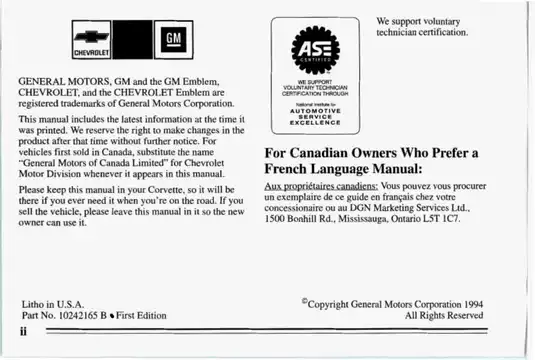

General Motors’ 1995 Chevrolet Corvette Owner’s Manual covers the Coupe, Convertible, and ZR-1, including LT1 and LT5 engine configurations. This is P/N 10242165 B, First Edition, published in 1994. It explains vehicle operation and owner maintenance; full chassis/body diagnosis, overhauls, and workshop repair procedures require the separate Corvette Service Manual.

PDF Search, Bookmarks and Page Count

Search coverage and navigation: OCR text search works through much of the manual, but some warning boxes and cover lettering are outside the searchable text. Embedded bookmarks cover the main sections and many individual topics. Small instrument-panel fuse-map labels need magnification and remain somewhat soft.

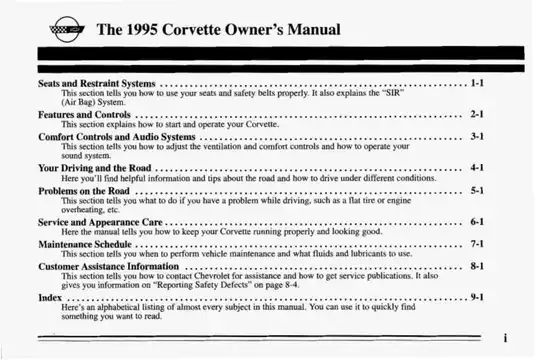

One English-language, printable PDF contains 386 pages, including both covers, 10 introductory pages, and the 12-page index.

Corvette Controls, Owner Service and Roof Options

The selected topics below show part of the manual’s coverage. Other sections explain climate-control operation and Delco/Bose audio controls.

• Engine and transmission operation: LT1/LT5 starting instructions, the ZR-1 Engine Power Switch, automatic-transmission functions, and manual-transmission shifting guidance.

• Routine maintenance: Engine Oil Life Monitor reset, air-filter replacement, transmission-fluid checks, hydraulic-clutch fluid access, and maintenance schedules for different driving conditions.

• Cooling system: Overheating guidance and separate step-by-step coolant high-fill procedures for LT1 and LT5 engines.

• Security and electrical equipment: Passive Keyless Entry transmitter matching and battery replacement, PASS-Key operation, accessory connections, and fuse-block references.

• Roof configurations: Step-by-step Coupe roof-panel removal, storage, and installation, Convertible soft-top operation, and optional hardtop removal and installation.

• Roadside procedures: Jump starting, front and rear towing arrangements, wheel changing, compact-spare use, and ZR-1 rear-tire storage instructions.

• Restraint systems: Seat and safety-belt use, driver and passenger Supplemental Inflatable Restraint airbags, readiness-light checks, deployment explanations, and airbag-service precautions.

The illustrated controls and basic owner checks suit Corvette owners learning the vehicle and handling routine upkeep; the maintenance section distinguishes those tasks from work requiring qualified personnel and suitable equipment.

LT1/LT5 Controls and Operating Differences

The ignition section explains ACC, LOCK, OFF, RUN, and START. Manual-transmission coverage includes the shift pattern, recommended upshift speeds, downshift limits, and One-to-Four shift operation. The tachometer section identifies different fuel-shutoff limits for the two engines.

ZR-1 power selection: The LT5 Engine Power Switch section explains the primary and secondary intake runners and fuel injectors, NORMAL/FULL modes, and the temperature, system-voltage, and SERVICE ENGINE SOON conditions governing full-power availability. These details help distinguish normal operating restrictions from a suspected malfunction.

Selective Ride Control settings, anti-lock braking, Acceleration Slip Regulation, and the associated warning indicators are also explained at the owner-operation level.

PKE, PASS-Key and Electrical References

Keyless entry: PKE coverage includes operating range, matching up to three transmitters, and DL2450 battery replacement. Separate illustrations show the Coupe and Convertible antenna arrangements. PASS-Key coverage explains the ignition-key resistor pellet and the temporary starter/fuel-system lockout caused by an incorrect key.

The Delayed Accessory Bus keeps the windows and audio system available for up to 15 minutes after switch-off if neither door is opened. The accessory-plug section identifies battery, RUN-power, and ground connections, along with its 10-amp load limit.

Electrical illustrations include the Instrument Panel Fuse Block, Forward Lamp Fuse Block, and ECM Engine Fuse Block, with numbered circuit descriptions. LT1/LT5 Instrument Cluster layouts, Power Curves, and Belt Routing views provide further reference material. Full vehicle wiring schematics are not included.

Maintenance Planning, Fluids and Cooling

Service planning: Maintenance Schedules I and II distinguish short-trip, idling, dusty, and other operating conditions. Owner checks, periodic professional inspections, recommended lubricants, and maintenance-record pages help organize the work appropriate to the vehicle’s use.

The fluid tables specify GM4718M engine oil with SAE 5W-30 preferred, DEXRON-III automatic-transmission fluid, and SAE 5W-30 manual-transmission fluid. Rear-axle requirements identify GM P/N 12345977 or SAE 80W-90 GL-5 lubricant and the limited-slip additive. DOT-3 brake fluid and GM Specification 1825M coolant requirements are also documented.

Variant-specific access: Hydraulic-clutch fluid instructions distinguish the LT1 Powertrain Control Module arrangement from the LT5 Engine Control Module arrangement. Capacity tables separate engine configurations and distinguish automatic-transmission drain/refill quantities from overhaul quantities.

The LT1 high-fill section identifies its specific filling and air-bleed requirements and warns of severe engine damage from an incorrect procedure. Complete cooling-system draining, flushing, and refilling is referred to the dealer or separate service information.

Roof Handling, Tires and Roadside Work

Roof hardware: The Coupe roof-panel instructions explain storage-bracket engagement and bolt installation; incorrect handling can damage the panel or strip the bolt threads. Convertible hardtop coverage identifies the HATCH (45) fuse and the flat ratchet wrench listed as GM P/N 10137741.

Tires and roadside equipment: The manual distinguishes conventional tires, optional Extended Mobility Tires, and spare-tire-delete equipment. Wheel-changing instructions include the special handling and storage requirements for ZR-1 rear tires.

The optional LTPWS sensor is positioned opposite the valve stem; the manual warns that improper tire service or tire sealant can damage it. Bulb-replacement instructions also distinguish the ZR-1 center high-mounted stoplamp from other versions, alongside wiper-blade replacement procedures.

Airbag precautions: SIR coverage explains frontal deployment conditions and why the airbags are not designed for rollover, side, or rear impacts. The service warning addresses stored energy after ignition switch-off and battery disconnection and requires qualified personnel for airbag work.

Examples from the Oil, Axle and Wheel Specifications

Approximate crankcase capacities with a filter change are 4.5 qt (4.3 L) for the LT1 and 8.6 qt (8.1 L) for the LT5. The capacity table includes a reminder to recheck fluid levels after filling.

The wheel-nut specification is 100 lb-ft (140 N·m). For a complete limited-slip rear-axle refill, the listed additive quantity is 4.0 oz (118 ml), alongside the axle-lubricant requirements.
