Chevrolet Malibu 1997–2003 Repair & Owner’s Manual Collection (P/N 22675723 A)

The repair articles provide workshop procedures, the wiring volumes support circuit tracing, and the owner’s manuals explain vehicle operation and scheduled maintenance.

Coverage limits: This is a mixed-year technical collection, not a year-by-year service manual covering every system from 1997 through 2003. The Malibu transmission application is 4T40-E/MN4; 4T45-E material belongs to shared transmission references. The air-bag volume is for the 2002 Impala and should not be used as Malibu-specific SIR repair coverage. The vacuum diagrams and supplemental repair/code references also include broader applications.

Separate bulletin references: The 1998–99 3.1L engine chapter refers to a TSB for revised cylinder-head bolt specifications. The 2002 engine chapters require separate TSB information for revised lower-intake gaskets, bolts and tightening specifications. These bulletins are not included in the collection.

PDF Search, Bookmarks and File Contents

Search and diagram detail: Eighteen PDFs contain searchable body text. The 1998 wiring PDF supports searches of headings and captions, while its diagram labels and the other 29 PDFs are not searchable. Embedded bookmarks are available in both owner’s manuals. Small labels in the sampled wiring diagrams are readable when enlarged.

The ZIP contains 48 printable English-language PDFs totaling 2,954 pages: 2,213 pages in 43 repair/reference files, 667 pages in two owner’s manuals, and 74 pages in three general supplements. These totals include six opening pages in each owner’s manual and all other title, introductory, notes and index pages. The separate cooling-repair extract overlaps material in the full cooling chapter and is included in the total.

Engine, Transmission and Electrical Repair

These are selected repair and diagnostic topics; additional wiring subjects include radio and power-sunroof circuits.

• Engine repair: Step-by-step engine removal, cylinder-head and timing-system procedures, with separate on-vehicle diagnosis and internal-overhaul chapters for the LG8.

• Transmission service: Fluid and cooler checks, Park/Neutral switch and shift-cable adjustment, servo service, internal disassembly, clutch inspection and reassembly.

• Brakes and chassis: ABS automated bleeding, EBCM/BPMV diagnosis, disc/drum service, CV-joint repair, suspension work and power-steering procedures.

• Cooling and HVAC: Cooling-fan fault charts, pressure-cap and leak tests, thermostat and water-pump replacement, plus manual A/C and heater diagnosis.

• Body systems: Door-lock, power-window, mirror, lighting, cruise-control and wiper/washer diagnosis, with component replacement procedures and connector information.

• Electrical diagrams: 78 numbered wiring figures across the 1998 and 2002 volumes, supported by system schematics, connector end views and component-location references.

The repair sections suit experienced mechanics who can interpret scan-tool data and use engine/transaxle support equipment; the owner’s manuals address everyday vehicle use and maintenance.

Engine Diagnosis and Internal Repair

On-vehicle work: The 2002 engine chapter covers compression and cylinder-leakage testing, oil-pressure and leak diagnosis, and drive-belt complaints. Repair procedures address engine support and replacement, intake manifolds, rocker arms, pushrods, lifters, timing chains, cylinder heads, oil pans, pumps and crankshaft seals.

Unit repair: The companion chapter adds block disassembly, boring and honing, crankshaft and bearing inspection, piston and connecting-rod service, camshaft bearings, valve guides and seats, oil-pump overhaul, sealing and reassembly.

The earlier engine articles distinguish the DOHC SFI LD9 from the V6 SFI L82. Their engine-management material covers PCM replacement and programming requirements, ignition components, fuel rails, injectors, pressure regulators and related sensors.

Tool references include engine support fixture J-28467-A, camshaft alignment tool J-36008-A, sprocket wrench J-39579 and fuel-pressure gauge J-34730-1.

The LD9 timing chapter warns that an incorrect chain/sprocket combination or a tensioner left in its installation position can damage the engine. The V6 instructions distinguish shorter orange intake pushrods from longer blue exhaust pushrods and identify incorrect lower-intake fastener sequencing as a cause of sealing leaks.

Transmission Service and Overhaul

Routine service includes cooler flushing and flow checks, mount work and oil-feed-pipe replacement. Internal-overhaul coverage extends to the case, oil pump, channel plate, check balls, valve body, differential and final drive, clutch assemblies, bands, sprockets, seals and selective thrust components.

Torque-converter inspection and oil-circuit diagrams support assessment of the hydraulic and mechanical assemblies. Clutch work identifies compressor J-23327 with adapter J-41232; the overhaul article also explains the risk of premature transaxle failure from contamination retained in the cooler and lines.

Brake and Chassis Diagnosis

Brake chapters combine road-test diagnosis with hydraulic tests, manual and pressure bleeding, rotor/drum inspection and parking-brake adjustment. ABS material supplies scan-tool data, DTC charts and EBCM/BPMV replacement procedures.

Chassis references cover axle-shaft and CV-joint work, front and rear suspension service, power-steering pressure/flow testing and hydraulic bleeding. Steering-column coverage includes shift-lock operation and service precautions.

Cooling, HVAC and Body Systems

Cooling documentation includes scan-tool output controls, fan-relay fault charts, overheating and coolant-loss diagnosis, and component replacement. The exhaust chapter adds manifold, crossover-pipe, catalytic-converter, muffler and tailpipe procedures.

Manual A/C and heater material addresses air delivery, vacuum controls, blower faults and compressor-clutch operation. Body chapters extend into window regulators and motors, door hardware, locks, mirrors and their electrical fault charts.

Circuit Tracing and Test References

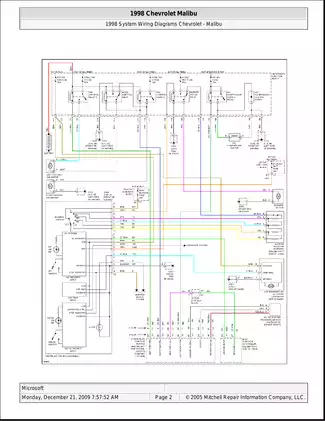

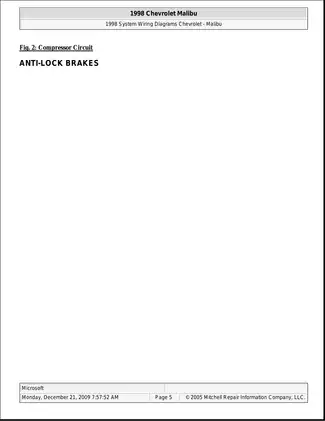

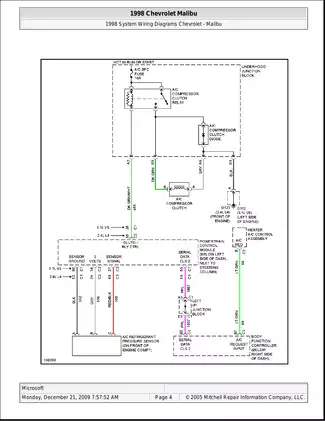

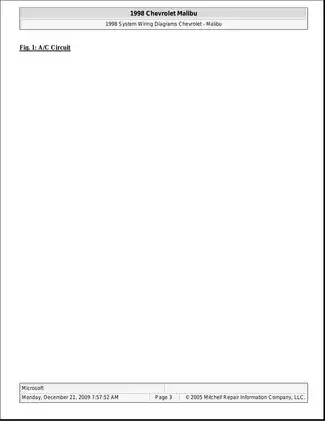

The diagrams let you follow power, ground and control paths between components and connector terminals. Examples include A/C Compressor Circuit, Anti-lock Brake Circuits, Body Computer Circuits, Cooling Fan Circuit, Engine Performance Circuits and the 4T40-E Transmission Circuit.

Separate diagnostic chapters connect those circuit references with symptom charts, scan-tool data, relay/fuse identification and starting/charging tests. That combination supports tracing a fault through the circuit and locating the relevant component or connection.

Reference tables supply fastener torques, capacities, pressure and flow data, electrical ranges, clearances, wear limits, tightening sequences and sealant/lubricant information. Illustrations throughout the repair material are credited to General Motors.

SIR and Workshop Safety

Follow the applicable safety procedures before repair work: disable the SIR system around steering-column, instrument-panel or HVAC components; recover refrigerant with approved equipment; relieve fuel and cooling-system pressure; and use the specified support fixtures for engine or transaxle work. Do not probe SIR circuits with ordinary electrical test equipment.

Selected Crankcase Capacity Data

The 1998 engine-performance specifications list approximate crankcase capacities, including the oil filter, of 4.0 qt (3.8 L) for the 2.4L LD9 and 4.5 qt (4.2 L) for the 3.1L L82. Both tables identify these as approximate quantities and retain the requirement to check the final oil level.
