Malaguti Spider Max 500 / GT500 2004 Service Manual Set

296 Pages • ZIP Download: Printable PDF • 19.60 MB

5.0starstarstarstarstar(1)
$15.25 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Malaguti Models Covered & Key Technical Specifications

Models: Spider Max 500, GT500

Sub-models / Variants: 4-stroke single-cylinder, Piaggio M341M engine

Model Year: 2004


  • Engine: 4-stroke single-cylinder, 4 valves

  • Engine Displacement: 460 cm³

  • Fuel System: Electronic injection with electrical fuel pump

  • Transmission: Automatic variator, V-belt, dry centrifugal clutch

  • Front Suspension: Telehydraulic fork, 41 mm legs, 120 mm travel

  • Rear Suspension: Hydraulic shock absorbers, 75 mm travel

  • Front Brakes: 2 discs 270 mm diameter, braking distributor system

  • Rear Brake: Disc 260 mm diameter

  • Tires: Front 120/80-16, Rear 150/70-16

  • Battery: 12V, 14Ah

  • Engine Oil Capacity: 1700 cc

  • Transmission Oil Capacity: 250 cc

Malaguti Manual Features & Selected Content Preview

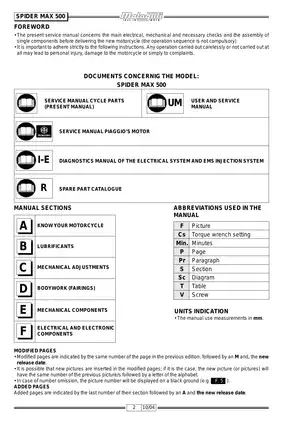

Publication Pages
Malaguti Spider Max 500 / GT500 Cycle Parts Service Manual — October 2004 104
Malaguti Spider Max 500 / GT500 Electrical System and EMS Injection Diagnostics Manual — December 2004, including March 2005 revisions 126
Malaguti 500cc 4T–4V–H2O Engine Workshop Manual — Piaggio M341M powertrain, May 2004 66

The chassis procedures provide access and removal information used by the electrical and engine volumes. Together, the publications connect mechanical repair with system testing and adjustment.

PDF Search, Wiring Detail, and File Contents

Search and circuit diagrams: Text search is available throughout the technical sections. There are no embedded PDF bookmarks. Dense wiring diagrams require zooming to read small pin numbers and wire codes; larger versions of the general electrical and injection diagrams are included.

The ZIP contains one English-language printable PDF with 296 pages, including three publication covers and three notes pages. The March 2005 electrical revisions are included in the publication totals above.


Chassis Repair, Engine Service, and EMS Troubleshooting

These selected coverage highlights summarize the main workshop areas. Additional topics include seat-release cable routing and headlight access.

  • Chassis and engine mounting: Engine removal and installation, engine-mount service, V-Box frame disassembly, and frame dimensional checks.

  • Brakes and suspension: Caliper overhaul, integral brake-system bleeding, fork disassembly, steering-bearing service, and rear shock adjustment.

  • CVT and final drive: Pulley and centrifugal-clutch disassembly, drive-belt inspection, and final-reduction gearbox repair.

  • Internal engine repair: Cylinder-head and timing-system work, crankcase separation, countershaft timing checks, and oil-pump inspection.

  • EMS diagnosis and adjustment: Symptom-based troubleshooting, active component tests, throttle-position sensor reset, and idle CO calibration.

  • Electrical references: Wiring schematics, connector pin assignments, dashboard testing, service-reminder resets, and Immobasic key registration.

These manuals are written for skilled mechanical and electrical service personnel; the engine volume also addresses independent mechanics and assumes basic technical knowledge.

Bodywork, Brakes, and Frame Service

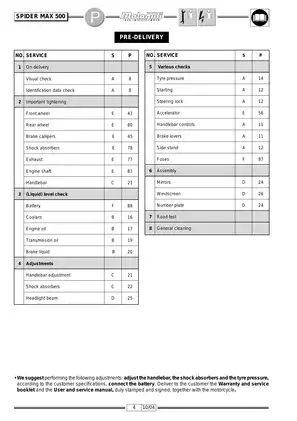

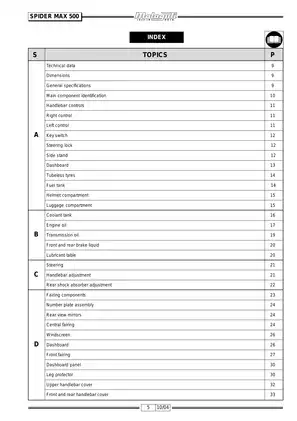

The cycle-parts volume has six sections covering pre-delivery checks, fluid service, bodywork removal, and chassis repair. Component-access illustrations identify the fuel pump, relays, EMS control unit, and under-seat diagnostic connector.

Brake circuits: The manual specifies DOT 4 fluid and distinguishes the linked right-front/rear circuit from the independently operated left-front brake. The front-caliper exploded view identifies internal parts, while the Braking System Circuit illustrations show hose routing and frame attachment points.

The engine-mount section warns that overtightening the threaded bushing can cause vibration and permanently damage its bearing.

Twin-Radiator Cooling System

Cooling coverage distinguishes the thermal expansion valve on the engine from the valve controlling the right radiator. The Coolant Circuit flowchart and hose-routing illustrations accompany radiator removal and separate left- and right-side bleeding procedures.

Piaggio Engine and Transmission Repair

The engine volume provides step-by-step procedures for cylinder-head removal, clutch disassembly, and crankcase separation. Compression testing and valve adjustment are supported by valve-seat and guide inspections.

Top-end matching: Piston/cylinder selection tables and cylinder-base gasket data support rebuilding with correctly matched components. Bottom-end checks cover crankshaft runout, endplay, connecting-rod clearance, main-bearing selection, and lubrication passages. The crankshaft journals cannot be reground, and the connecting rod is not separately replaceable.

Transmission inspection: Specifications address variator rollers, pulley bearings, clutch shoes, and driven-pulley spring condition. The special-tool list identifies driven-pulley spring compressor 020444Y. Other engine procedures cover water-pump seals, starter freewheel inspection, and stator continuity and insulation tests.

Electrical and EMS Fault Isolation

No-start, difficult hot/cold starting, unstable-idle, and power-loss charts lead into circuit-level checks. Individual sections test the rpm/phase sensor, temperature sensors, ignition coil, idle stepper motor, and fan control.

Fuel-system diagnosis: Pressure, flow, electrical, delivery, and leakage tests help distinguish pump or filter problems from injector faults before replacement parts are selected. The manual warns that compressed-air cleaning can damage the fuel filter and allow contamination to clog the injector.

The procedures specify Malaguti diagnostic tester 08607500 (Piaggio 020460Y) and test harness 08607600. The harness supports ECU circuit measurements with the engine running.

The General Electrical Diagram, Injection System Diagram, and EMS Central Unit Terminal Layout support circuit tracing. Dashboard coverage includes indicator testing and oil/V-belt reminder resets. Immobasic instructions distinguish initial key registration, additional keys, and keylock-kit/immobilizer replacement when all enabled keys are lost.

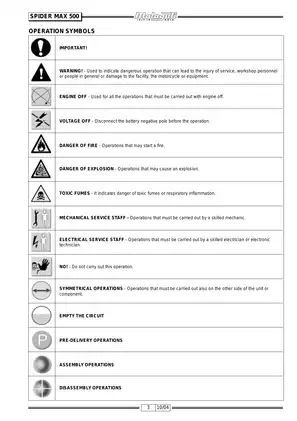

Always ensure the maxi scooter is properly secured on a stable lift. Follow the manual’s battery-isolation requirements for teardown and its separate powered-test precautions for diagnostics.

Valve Clearances and EMS Test Values: A Preview

Component-specific torque tables, fluid capacities, fork-oil setting data, and wear limits accompany the repair chapters. For valve adjustment, the engine manual specifies 0.15 mm cold clearance for both intake and exhaust valves.

The EMS fuel-pressure regulator check specifies 300–320 kPa (3–3.2 bar) with pump supply voltage above 12 V.

The coolant-temperature sensor reference gives 2,500 ± 100 Ω at 20°C and 308 ± 6 Ω at 80°C, alongside further temperature/resistance data for circuit diagnosis.
