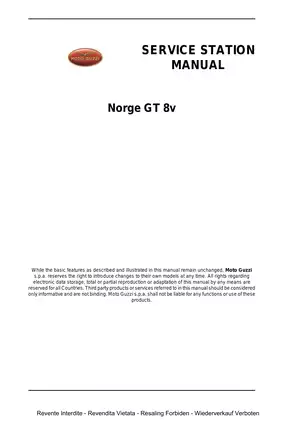

2011 Moto Guzzi Norge GT 8v Service & Repair Manual (PN 897237)

The 2011 Moto Guzzi Norge GT 8v Service Station Manual, identified on its cover as 897237, documents scheduled maintenance, electrical diagnosis, and mechanical repair for the Norge GT 8v.

• Engine repair: Engine removal and installation, cylinder-head and valve service, cam timing, piston inspection, crankshaft work, and lubrication-system repair.

• Clutch and gearbox: Dry-clutch disassembly, actuator checks, control-rod selection, gearbox teardown, shaft inspection, and selector-fork checks.

• Fuel injection: Cylinder synchronization with Navigator and a vacuum gauge, throttle-position learning, lambda-sensor diagnosis, and stepper-motor control.

• Electrical troubleshooting: General wiring diagram, component-location keys, harness-routing illustrations, ECU connector pin assignments, charging checks, and instrument-panel diagnostics.

• Suspension and final drive: Fork disassembly and inspection, steering-bearing adjustment, rear-shock settings, swingarm removal, and bevel-drive bearing and seal service.

• Brakes and ABS: Fault-code diagnosis, tone-wheel checks, modulator replacement, brake-disc inspection, pad replacement, and conventional and Navigator-assisted bleeding.

Written for Moto Guzzi dealers and their qualified mechanics, this manual assumes existing mechanical knowledge and does not teach basic workshop skills.

Engine, Clutch, and Gearbox Repair

The engine sections cover cylinder and piston selection, valve-guide clearances, crankshaft bearing fits, and cylinder-head gasket selection from piston-position measurements. An inlet valve seat detail drawing supports the head-inspection material, while component-specific torque tables accompany assembly illustrations.

Gearbox coverage extends to individual shaft gears, bearings, the selector drum, and shift forks. The clutch control rod selection chart links measured protrusion to the appropriate replacement rod, helping a mechanic identify the correct rod after clutch replacement. The procedure specifies checking tool 020678Y.

The crankshaft section warns that rotation with only the connecting rods fitted can strike and damage the lubrication jets inside the crankcase. Lubrication coverage also explains the separate cooling and lubrication rotors and documents oil-pump, sump, thermostatic-valve, and pressure-relief-valve work.

Injection and Electrical Diagnosis

The Weber-Marelli injection system uses a Magneti Marelli IAW 5 AM2 ECU. Navigator coverage explains measured parameters, operating states, actuator tests, stored faults, throttle-position learning, and adaptive-parameter resets.

Lambda-sensor and injector troubleshooting distinguishes component faults from wiring and connector problems. The ECU connector pin configuration views and circuit-specific checks help trace those faults before selecting a replacement component.

Cylinder synchronization is documented with a vacuum gauge and Navigator. The manual warns that disturbing the throttle abutment screw requires throttle-body replacement.

Electrical documentation also covers immobilizer and key programming, starting interlocks, heated grips, and windshield wiring. Harness-routing illustrations identify connector positions and attachment points throughout the vehicle.

Suspension, Final Drive, and ABS

Fork service includes disassembly, bushing and seal inspection, reassembly, and oil-level measurement; the special-tool list identifies Marzocchi fork oil-seal tool 9100903. The shock absorber setting table distinguishes standard, half-load, and maximum-load adjustments.

The chassis section covers frame geometry, swingarm and universal-joint inspection, bevel-drive casing separation, wheel-axle bearings, pinion seals, and support-unit service. Bodywork procedures cover access through the fairings, fuel tank, airbox, and adjustable windshield.

The ABS functional diagram explains the hydraulic circuits and modulator operation. Diagnostic coverage includes wheel-speed faults, tone-wheel condition, controller coding, and electrical checks. The bleeding section distinguishes regular bleeding from Navigator-assisted bleeding for persistent lever or pedal sponginess.

Because brake fluid and battery electrolyte pose hazards, follow the manual’s safety precautions and consult a qualified technician if you lack the necessary training.

A Preview of Electrical Checks and Assembly Settings

These examples represent a small selection of the manual’s electrical test data and mechanical settings.

Fuel-level sensor resistance is listed as 250–300 ohms at 0 L and 10–20 ohms at 22.5 L, measured between pins 3 and 4. Charging voltage is specified as 14.2–14.8 V at 5,000 rpm.

Cold valve clearances are 0.15 mm intake and 0.20 mm exhaust, with the piston at TDC on the compression stroke. The front wheel spindle nut tightening specification is 80 Nm.

PDF Search, Bookmarks, and Diagram Detail

Text access and illustration limits: Body text and tables are searchable; labels embedded in diagram images are not. Embedded bookmarks are partly usable: some links are inactive, and some open one page before the named section. Small labels in the general wiring diagram remain partly illegible when enlarged; the separate ABS diagrams are clearer.

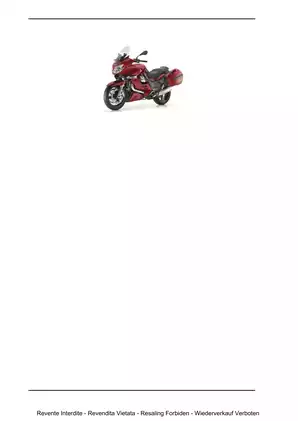

One printable English-language PDF contains 357 pages total. This includes four opening pages covering the title, copyright, introduction, and model illustration, one contents page, 12 chapter-divider pages, and a two-page alphabetical index.
