Detailed Workshop Manual for Moto Guzzi Stelvio 1200 4V Adventure (2008-2010) (271 P.) | Factory Grade

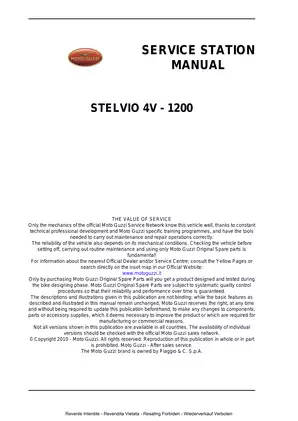

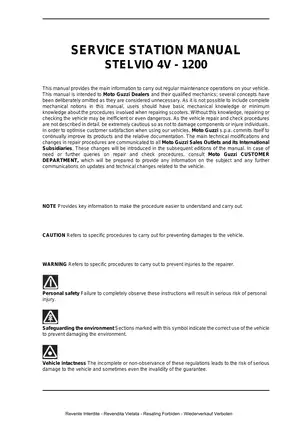

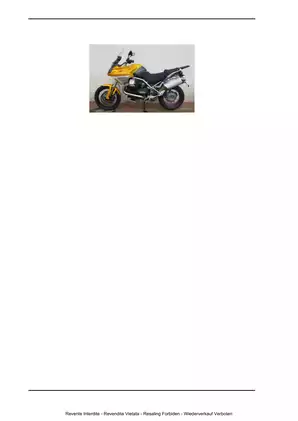

Moto Guzzi Stelvio 1200 4V Service Station Manual

This specialized service documentation provides master-level guidance for the mechanical upkeep and complex repair of the Stelvio 1200 4V touring platform. It serves as the definitive technical authority for Moto Guzzi service centers, ensuring that every adjustment—from transverse V-twin timing to cardan shaft alignment—is executed with factory precision. By adhering to these rigorous diagnostic and maintenance protocols, technicians can guarantee maximum machine reliability, optimal fuel delivery, and the long-term preservation of the motorcycle’s high-performance engineering.

Operational Investment Protection

• Eliminates costly "guesswork" by providing exact factory tolerances and clearance values for the 1200cc power plant.
• Prevents component fatigue and mechanical failure through a structured, multi-interval routine maintenance matrix.
• Safeguards the vehicle's resale value by ensuring all service work meets official Moto Guzzi station standards.
• Reduces downtime during complex overhauls by utilizing specialized tool codes and streamlined disassembly sequences.

Master Registry & Technical Logistics

• File Format: PDF
• Total Page Count: 271 Pages
• Official Document Number: 895768
• Original Publication Date: Copyright 2010

Platform Compatibility & Identification

This manual covers the Stelvio 1200 4V series manufactured between 2008 and 2010. Technicians can verify specific model revisions using the chassis number stamped on the right side of the headstock or the engine serial located on the left side near the oil level check cap. Compatibility is confirmed for World Manufacturer Identifier (WMI) code ZGU, model LZ, version A00.

Logic Systems & Diagnostic Decoding

The platform utilizes the Magneti Marelli IAW 5AM2 Engine Control Unit (ECU) for integrated engine management. The manual details a comprehensive range of fault codes accessible via the instrument panel or Navigator diagnostic tool:

• ECU 10/11: Throttle Valve position error (DC V DC or Ground).
• ECU 14/15: Engine Temperature sensor circuit failure.
• ECU 21: Lambda Probe signal error.
• ECU 26/27: Primary Injector circuit malfunctions.
• DSB 01-03: Immobilizer and Key Transponder logic failures.
• Service Code: Entry code 10695 is required for advanced technician-only diagnostic menus.

Critical Benchmarks for Long-Term Durability

Specialized Engineering Schematics

The documentation includes high-definition visual paths for every critical technical system. This includes the complex 90° V-twin lubrication circuit with its independent trochoidal pumps for cooling and pressure. Detailed electrical wiring diagrams trace the path from the 550W permanent magnet alternator through the auxiliary fuse clusters (15A/3A) to the Marelli injection components. Suspension layouts specifically detail the 45mm upside-down telescopic forks and the single-sided swingarm's progressive linkage for precise shock calibration.

Comprehensive Service Architecture

• CHARACTERISTICS: Technical data, weight, mass, and tightening torque registries.
• SPECIAL TOOLS: Engine locks, seal punches, and clutch centering tool codes.
• MAINTENANCE: Routine service tables and consumable replacement steps.
• ELECTRICAL SYSTEM: Component arrangement, ECU logic, and wiring diagrams.
• ENGINE OVERHAUL: Gearbox removal, timing system synchronization, and piston assembly.
• CHASSIS & BRAKES: Bevel gear servicing, cardan shaft inspection, and brake bleeding.
• POWER SUPPLY: Electronic injection control, throttle body synchronization, and sensor recovery.

FAQ

What are the primary torque requirements for the cylinder head assembly to ensure proper combustion sealing? To maintain the structural integrity of the 1200cc top end, the cylinder head fixing screws require a two-stage procedure: an initial pre-tightening to 15 Nm (11.06 lbf ft) followed by a final tightening to 42 Nm (31 lbf ft). Additionally, the rocking lever support nuts (M10x1.5) must be secured using a similar step-up method of 15 Nm plus a final 42 Nm to prevent component shifting under thermal load.

How do I troubleshoot an ECU 14 error code related to the engine management system? An ECU 14 indicates an Engine Temperature Error specifically caused by a short to the V DC. Technicians should verify the NTC sensor resistance, which should measure approximately 3.750 kOhm at 20°C (68°F); if the circuit is open or shorted to the brown connector PIN 5, the Magneti Marelli IAW 5AM2 control unit will trigger a recovery value of 30°C (86°F) to protect the power plant from critical failure.

Which specific spark plug and gap settings are required to maintain ignition stability? The transverse V-Twin requires NGK PMR8B (Long Life) or NGK CR8EKB (Long Life) spark plugs. For consistent ignition across all RPM ranges and to prevent fouling, the electrode gap must be precisely calibrated between 0.6 mm and 0.7 mm (0.024–0.028 in), secured to the head at a torque of 15 Nm (11.06 lbf ft) using Molykote assembly paste.

What is the factory-specified valve clearance for the 1200 4V timing system? Precision valve calibration is essential for engine longevity and must be performed with a cold engine at Top Dead Centre (TDC). The inlet valves must be set to 0.10 mm (0.0039 in) and the exhaust valves to 0.20 mm (0.0079 in); clearances exceeding these benchmarks will cause excessive tappet noise, while tighter settings risk valve burn-out and compression loss.

What are the critical tire pressure benchmarks for a full-load touring configuration? To ensure handling stability and safety, tire pressures must be checked at ambient temperature. For the standard 110/80 R19 front and 180/55 R17 rear setup, the front must be maintained at 2.5 bar (36.3 PSI) and the rear at 2.9 bar (42.1 PSI) to guarantee the correct contact patch during high-speed transit.

Which lubricant specifications are required for the transmission and final drive cardan? The 6-speed gearbox requires exactly 500 cm³ of AGIP Rotra MP 85W-90 oil to ensure smooth gear engagement. For the rear final drive, the cardan assembly requires 380 cm³ of AGIP Rotra MP 80W-90 combined with 20 cm³ of AGIP Rocol OT5 additive; adhering to these specific volumes prevents seal rupture due to over-pressurization during thermal expansion.
