2012 Moto Guzzi California 1400 MY12 Maintenance and Service Manual

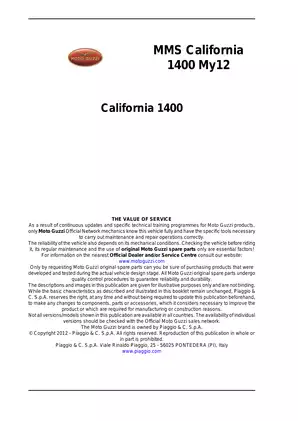

This Piaggio & C. S.p.A. maintenance and service manual (© 2012) covers the Moto Guzzi California 1400 MY12 and its 1379.6 cc V-twin engine. The cover carries document code B043153.

Text search and diagram navigation: Body text and tables are searchable; labels within the general wiring diagram are not. Section bookmarks include some headings without destinations and links that land one page early. Small labels in the general wiring diagram remain indistinct when enlarged; separate connector views and pinout tables are more legible.

• Engine repair: Engine removal and installation, cylinder-head and crankshaft work, cam timing, piston inspection, and lubrication-system service.

• Transmission and clutch: Gearbox overhaul, primary and secondary shaft inspection, desmodromic drum checks, and clutch actuator assessment.

• Electronic diagnosis: Marelli 7SM ECU fault tracing, CAN line tests, immobilizer diagnosis, and ride-by-wire throttle and twistgrip self-learning.

• ABS braking: Modulator replacement, wheel-speed sensor checks, diagnostic-tool bleeding, and brake disc and pad service.

• Suspension and driveline: Front fork teardown, steering bearing preloading, wheel-bearing replacement, swingarm removal, and cardan shaft inspection.

• Maintenance data: Routine service schedules, electrical test specifications, component-specific torque tables, fluid capacities, and factory special-tool references.

This manual is suited to experienced mechanics with engine-rebuilding skills, electrical test equipment, and access to the specified factory tools and diagnostic functions.

Engine Repair and Lubrication

The engine chapters detail cylinder-head disassembly, hydraulic tappets with rollers, valve-guide inspection, and camshaft installation. Inlet and outlet valve-seat detail drawings accompany the inspection data, while staged cylinder-head tightening data, piston selection classes, head-gasket selection, and crankshaft bearing tables support internal engine repair.

The lubrication conceptual diagrams distinguish the cooling and lubrication rotors in the oil pump. Oil-pump, sump, pressure-control valve, and blow-by sections explain the associated assemblies.

During crankshaft work, the manual warns that connecting rods can strike the lubrication jets inside the crankcase.

Valve-clearance coverage: The maintenance schedule lists valve-clearance adjustment, but this edition does not include the referenced checking procedure or valve-clearance settings.

Gearbox, Clutch and Alternator

Exploded assembly views accompany transmission-shaft disassembly and checks for gear wear, shaft runout, selector forks, and the desmodromic drum. The clutch section provides control-rod selection data and identifies checking tool 020678Y.

Alternator removal, installation, and belt tensioning are documented with belt tensioner 020677Y. Gearbox oil and final-drive oil have separate service procedures and capacity entries.

Marelli Diagnostics and Harness Routing

The electrical section maps component locations and cable routing through the front, center, and rear of the vehicle. The general wiring diagram, ECU connector views, and pinout tables support engine-speed sensor, injector, ignition-coil, starting-circuit, and CAN fault diagnosis.

Error-code entries link symptoms to connector checks and circuit tests, helping distinguish wiring faults from component failures before replacement. Navigator parameters, activation tests, ECU initialization after replacement or remapping, and throttle self-learning are covered; the power-supply section also cross-references Navigator and P.A.D.S. activation functions.

ABS, Suspension and Rear-Wheel Fitment

The ABS functional diagram explains the hydraulic circuits, with fault tables for speed sensors, the pump, and CAN communication. Repair coverage includes conventional and Navigator-assisted bleeding after brake-component replacement.

Front-fork service covers bushings, seals, and component inspection. The manual warns that straightening a bent fork tube weakens it.

Rear-wheel installation distinguishes type A and type B coupling flanges and their different spacer requirements. These details help identify the required configuration before reassembly; cardan-shaft illustrations also distinguish acceptable from unacceptable spline wear.

Bodywork procedures cover the fuel tank, lighting, footrests, fenders, and pannier supports, followed by pre-delivery checks.

Engine removal requires a secured frame, suitable lifting equipment, and the designated service tools.

Printable PDF and Included Pages

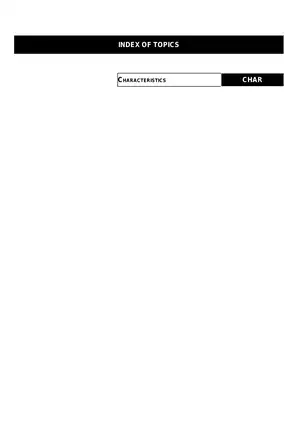

The single English-language, printable PDF contains 357 pages: 337 content pages, four opening pages, 12 chapter dividers, two otherwise blank pages, and a two-page alphabetical index. All are already included in the total.
