Moto Guzzi V7 Classic 2008–2014 Service Manual Set (P/N 981078)
332 Pages • ZIP Download: 3 Printable PDFs • 7.00 MB
Moto Guzzi Models Covered & Key Technical Specifications
Model & Model Code: V7 Classic (GU091)
Sub-models / Variants: Parts List market versions (AUS, CA, EU, J, UK, USA); 25 kW version (throttle-body parts).
Model Years: 2008–2014 (2008, 2009, 2010, 2011, 2012, 2013, 2014)
-
Engine oil type: 10W-60
-
Engine oil change interval filter replacement: 7,500 km (4,687 miles)
-
Drainage plugs tightening torque: 12 Nm (1.2 kgm)
-
Spark plug tightening torque: 20 Nm (2 kgm)
-
Spark plug electrode gap: 0.6–0.7 mm (0.023–0.027 in)
-
Fuel tank capacity: 15 liters (3.30 UK gal; 3.96 US gal)
-
Fuel reserve: 2.5 liters (0.55 UK gal; 0.66 US gal)
-
Battery recharge current: 1.8 A
-
Fuse ratings: 3 A, 15 A, 30 A
Moto Guzzi Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| Moto Guzzi V7 Classic Service Station Manual — P/N 981078, English | 134 |
| Moto Guzzi V7 Classic Owner's Manual — Ed. 01 2009, Spanish/English | 147 |
| Illustrated Parts List — V7 Classic 750 2008, GU091 / Cat. GU09100, English | 51 |
Use the service procedures alongside the exploded parts views when planning repair work. The owner's booklet covers vehicle operation, routine checks and basic maintenance.
Overhaul scope: The service manual contains internal-engine and gearbox specifications and torque tables, but not full engine or gearbox overhaul procedures. The parts list's internal-engine, clutch and gearbox drawings support parts identification rather than step-by-step overhaul work.
PDF Search, Bookmarks and Wiring Detail
Text search and diagram detail: All three PDFs have searchable text. The service manual and parts list have embedded bookmarks; the owner's booklet has none. Some small pin numbers and wire codes in the service manual's General Wiring Diagram remain blurred even when enlarged.
ZIP download containing three printable PDFs totaling 332 pages. This total includes all covers and indexes, the service manual's blank page and the parts list's two introductory pages.
Injection Diagnosis, Chassis Repair and Parts Identification
The following is a selection of the contents, rather than a complete contents list. Other topics include cold-start troubleshooting and headlight aiming.
-
Routine maintenance: Scheduled checks, engine-oil and filter replacement, spark-plug inspection, brake-fluid checks, pad-wear inspection and component-specific service specifications.
-
Electrical and injection diagnosis: Sensor testing, connector pin-outs, wiring diagrams, AXONE parameters, electrical errors, component activations and throttle-body synchronization.
-
Engine removal and access: Step-by-step engine removal and installation, fuel-tank removal, air-filter access, exhaust removal and lambda-sensor removal.
-
Fork and steering service: Fork-leg removal, disassembly, seal and bushing inspection, oil-level setting, reassembly and steering-bearing play adjustment.
-
Swingarm and final drive: Universal-joint inspection, swingarm removal and installation, bevel-gear disassembly, bearing and seal replacement, shimming and tooth-contact checks.
-
Owner operation: Instrument-panel settings, warning indications, rear-shock preload adjustment, battery care, bulb replacement and storage preparation.
-
Illustrated parts coverage: Numbered assembly views and part codes for chassis, brakes, electrical equipment, engine internals, clutch, gearbox and market-specific components.

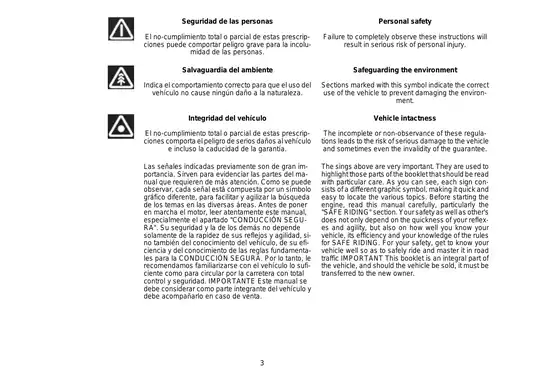

The service manual is written for Moto Guzzi dealers and qualified mechanics; the owner's booklet distinguishes routine owner checks from work requiring specialist tools or technical training.
Marelli Injection and Electrical Fault Tracing
The Weber-Marelli injection system uses a Magneti Marelli 15RC ECU. AXONE 2000 coverage includes live parameters, device statuses, stored errors, actuator tests, throttle-position learning and self-adjustable parameter reset. Cylinder synchronization uses the diagnostic tool together with a vacuum gauge; CO is not manually adjustable.
Fault-finding covers engine-speed, throttle-position, engine-temperature, intake-air-temperature, lambda and oil-pressure signals. Separate checks address speed, neutral, clutch, side-stand, bank-angle and instrument-panel temperature inputs, plus fuel-pump and fuel-level operation.
Sensor characteristics, connector pin-outs and harness-routing Tables A–G support tracing a fault through its wiring before selecting a replacement component. The Components Arrangement views and Power Supply Circuit Diagram connect component identification with the electrical and fuel-system sections.
Engine Access, Suspension and Final Drive
Mechanical reference data covers the air-cooled transverse V-twin, dry single-disc clutch, mechanical gearbox and Cardan final drive. Valve-clearance, idle-speed, lubricant and tightening specifications accompany the relevant maintenance and removal sections.
The Front Fork Diagram identifies the seals, bushings, spring and pumping components used in the fork procedures. Handling precautions address the fork-leg rim, upper-bushing seat and O-rings, where damage can compromise sealing.
Final-drive work extends to pinion and crown inspection, bearing and seal work, shim selection and illustrated tooth-contact patterns. Dedicated tools include 19.92.88.00 for bevel-gear alignment, 19.92.61.00 for the bevel-pinion sealing ring and 19.92.76.00 for the swingarm-holder bearing.
The bevel pinion and crown are a matched pair with matching stamped numbers; mismatching them risks incorrect tooth contact and accelerated wear. Reassembly also specifies the vertical orientation of the pinion-case oil-passage grooves.
Owner Checks and Replacement-Part Selection
The owner's booklet explains clock adjustment, total and trip odometers, outside-temperature display, maintenance indication, Trip Fuel reserve-distance tracking and unit selection.
Its maintenance material covers spark plugs, battery removal and ordinary charging, fuses, lighting and brake-pad inspection. The scheduled-service chart also addresses valve-clearance adjustment, cylinder synchronization, steering, suspension, safety switches and drivetrain fluids.
The parts list contains 48 numbered illustrated tables, including Frame I/II, Cylinder Head, Gear Box, Electrical System II, Throttle Body and the Transmission Complete II exploded view. Market labels distinguish applicable parts, including the CA-USA Fuel Vapour Recover System and throttle-body components marked for the restricted-power version.
The publications give different spark-plug tightening torques; follow the specification in the applicable publication and procedure. Fuel-system work, supported engine removal, brake-fluid service and suspension or final-drive disassembly carry factory safety cautions.
Oil-Capacity and Fork-Level Examples
For an engine-oil change with filter replacement, the specified quantity is 1,780 cm³. The gearbox and final-drive capacities are listed separately as 1 L and 170 cm³; their lubricant references also distinguish SAE 85W-90 gearbox oil from SAE 85W-140 final-drive oil.
The fork-filling section specifies a 150 mm air gap measured from the sleeve rim, with the spring removed and the fork fully compressed. It also requires matching oil levels in both fork legs.
