Moto Guzzi California 1000, 1000i, 1100, 1100i Parts Catalog (P/N 9200–2970)

• Factory manual set for the California 1000, 1000 i, 1100, and 1100 i, with distinct coverage for Dell'Orto carburetor and Weber IAW electronic fuel-injection configurations.
• Documents engine-gearbox unit removal, cylinder-head and valve service, piston and crankshaft checks, valve timing, oil-pump inspection, and engine reassembly.
• Details dry twin-plate clutch work, five-speed gearbox inspection and shimming, Cardan shaft and rear-drive overhaul, suspension service, and wheel and brake-system repair.
• Includes carburetor setup, Weber-Marelli injection checks, Digiplex ignition timing, Ducati charging-system diagnosis, Valeo starter data, and separate carburetor and injection wiring diagrams.
• The California 1100/1100 i parts catalog supplies 44 numbered exploded assembly plates plus an unillustrated No. 45 accessory listing, with OEM part numbers, quantities, variant notes, and touring-hardware coverage.
• The California supplement provides model-specific injection settings and wiring, but refers general electronic injection/ignition information to separate Service Manual Code 29 92 01 60, which is not included in this set.
• 304-page PDF set — V1000 G5/1000 SP Workshop Manual Code 17 92 01 61: 154 pages; California supplement Code 30 92 01 60: 50 pages; California 1100/1100 i parts catalog Best.-Nr. 9200-2970: 100 pages.

How the Factory Set Is Structured

The V1000 G5/1000 SP workshop manual supplies the repair foundation, while the California supplement documents the systems, settings, and component changes specific to the 1000, 1000 i, 1100, and 1100 i. The 1000 models use the 948.8 cc engine and the 1100 models use the 1064 cc version; fuel-system coverage separates Dell'Orto PHF 36 carburetors from the Weber IAW digital injection setup. The OEM parts catalog covers the California 1100 and 1100 i only, so 1000/1000 i owners should treat it as a workshop-reference set rather than a model-specific parts book.

Because the procedures assume familiarity with component layouts and call for dedicated pullers, punches, supports, timing fixtures, and measuring equipment, this material is suited to professional technicians and experienced owners equipped for major motorcycle repair.

Repair Procedures and Specifications

Engine coverage runs from removing the engine-gearbox unit through stripping, inspection, and assembly. It addresses cylinder heads, valves and guides, cylinders, pistons, connecting rods, crankshaft balancing, flywheel installation, timing components, the oil-delivery pump, filters, pressure-control parts, and leak checks. The related tables provide component-specific torque settings, wear and clearance limits, lubrication data, and inspection dimensions.

Drivetrain chapters cover clutch removal and assembly, gearbox stripping, bearing and seal service, shaft and selector inspection, reassembly, and shimming. Rear-drive procedures include Cardan-joint work, bevel-gear inspection and contact checks, bearing setup, seal replacement, and final-drive shimming. Chassis repair extends to swingarm bearings and play, adjustable forks and rear shocks, wheel removal, spoke tensioning and balancing, tire service, master cylinders, calipers, discs, and the linked rear/left-front brake circuit with its bleeding procedure.

Fuel and electrical sections add Dell'Orto synchronization and idle/CO adjustment, Weber IAW throttle-potentiometer and sensor checks, Digiplex timing checks, alternator/regulator testing, and starter specifications. Electrical references include the pressure-delaying valve operation chart, charging-output graphs, ignition component views, and full wiring diagrams for the carburetor and injection versions.

Parts Identification and Variant Notes

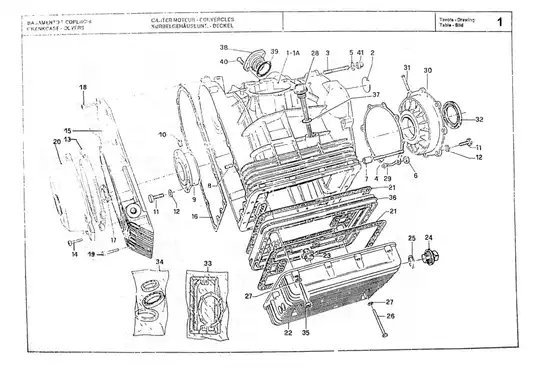

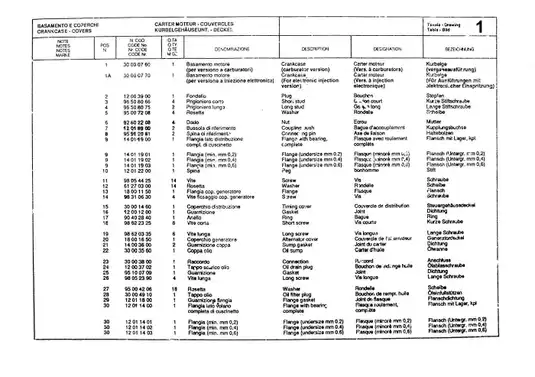

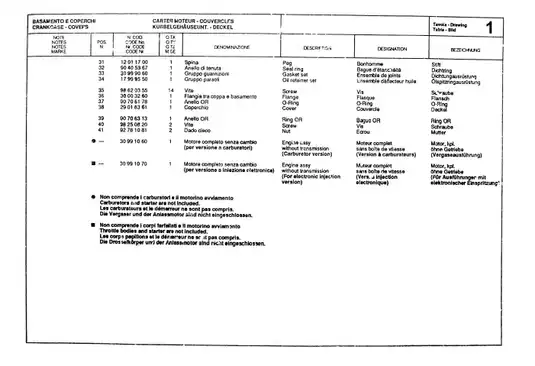

The parts catalog pairs callout drawings with multilingual tables listing the manufacturer part number, description, quantity, model application, and remarks. Particularly useful plates cover the crankcase and oil sump; crankshaft, connecting rods, pistons, and valve train; gearbox shafts and selector mechanism; swingarm, Cardan drive, and rear-drive box; and the separate carburetor- and injection-version ignition systems. Touring equipment is broken out for windshields, luggage racks and backrests, rigid cases, top-case mounts, rear crash bars, and leather side or tool bags.

The supplement records a revised clutch-shaft torsional absorber beginning with gearbox No. T119206. It also distinguishes second- and third-series Ducati charging components. The later alternator, Code 37 71 24 05, must not be paired with the earlier regulator, Code 29 70 38 61, because the higher charging current can damage the regulator; the later regulator, Code 37 70 38 05, is approved with either alternator. Reversed regulator connections are also identified as a cause of irreversible regulator damage.

Rear-drive reassembly has its own trap: replacement of internal parts requires fresh shimming, and the cover, housing marks, and lubrication holes must be aligned correctly. That information is central to maintaining proper bevel-gear contact and oil flow during a repair.

This is factory workshop and parts-reference material, not a substitute for safe repair practice. Support the engine and motorcycle securely, isolate the electrical system, and follow proper hydraulic-brake procedures before carrying out heavy component removal or brake work.
