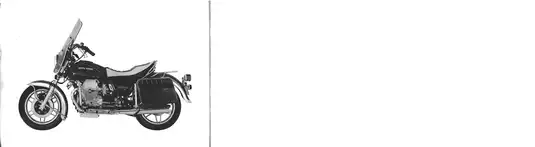

Moto Guzzi California II 1981–1987 Owner´s Manual (P/N 29 92 01 01, 17 92 01 61)

• 313-page scanned PDF set combining the California II Owner's Manual and parts book with the V1000 G5 / 1000 SP base workshop manual and the California II-specific supplement. The G5 and SP are base-reference models, not California II trim variants.
• Covers engine/gearbox-unit removal and internal engine repair. Procedures address cylinder-head and valve work, cylinder/piston and crankshaft inspection, flywheel and timing-drive assembly, oil-pump checks, and crankcase leak testing.
• Details the twin-plate dry clutch and five-speed gearbox, from stripping and inspection through shimming and bench assembly. Rear-drive overhaul, bevel-gear contact setup, and swingarm bearing replacement and play adjustment are included.
• Includes front fork removal and lubrication plus oil-pneumatic suspension data. Chassis work extends to wheel removal and balancing, linked-brake bleeding, master-cylinder and caliper overhaul, brake inspection limits, and a fault table.
• Provides Dell'Orto setup and vacuometer synchronization alongside air-filter service. Electrical material covers dual-point ignition timing, Bosch charging and starter tests, fuse assignments, test data, and fault isolation.
• Supplies 27 exploded parts drawings and California II, V1000 G5, and 1000 SP wiring diagrams. A printed-panel circuit addition and the U.S. “New Type” update from serial VT100167 for machines built after January 1984 are also included.

These four PDFs are designed to be used together. The California II workshop booklet continues the base manual at printed page 191, adding model-specific data rather than repeating repair procedures. The included G5/SP volume supplies those underlying chapters. The owner's handbook addresses the rider; the overhaul material is suited to experienced mechanics with measuring equipment and the listed service tools.

Document Set and Publication Codes

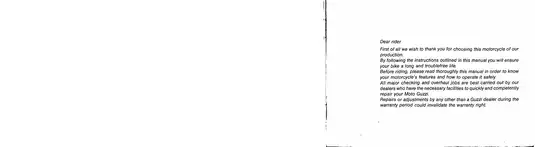

The set contains 313 PDF pages. The California II Owner's Manual, code 29 90 00 01, has 56 pages and carries a SEIMM print date of 2/83. The California II Workshop Manual Additions, code 29 92 01 01, has 15 pages and carries a SEIMM print date of 8/82. The California II Parts Book accounts for 88 pages. The 154-page V1000 G5/1000 SP Workshop Manual is code 17 92 01 61, carries a GBM/Moto Guzzi 9/95 print imprint, and includes printed-panel wiring addition 17 92 01 65.

The appended June 1984 circular identifies the amended parts catalog/microfiche as code 29 92 00 01 3. These PDFs are scanned reproductions of factory and distributor material; the parts-book file carries later archive markings.

Engine, Drivetrain, and Brake Repair Depth

Engine tables cover cylinder and piston grading, valve/guide/seat limits, crankshaft journal classes and undersizes, spring loads, timing data, oil-pressure tests, torque settings, and leak checks. Drivetrain data adds gear-ratio tables, gearbox shaft and selector shimming, rear-drive contact patterns, and bevel-set clearance. The brake chapters separate the independent right-front circuit from the pedal-operated rear/left-front circuit, with hydraulic repair data for both layouts.

The illustrated repair-shop tool list names more than 50 fixtures and gives their part numbers. Examples include engine support 18 91 24 50, timing plate 19 92 96 00, clutch assembly tool 12 90 65 00, and rear-drive inner-race puller 17 94 83 60.

California II Parts Plates and 1984 U.S. Update

The parts book pairs exploded views with part-number tables in Italian, English, French, and German. Representative drawings include Head-Cylinders, Connecting and Timing System, Gears-Shaft-Controls, Rear Fork and Transmission, Rear/Left-Front Brake Controls, and Electrical Equipment. Germany- and England-specific changes are also listed.

The May 3, 1984 North American dealer bulletin and five-page June 1984 factory circular document the U.S. “New Type” California II from serial VT100167. They identify later PHF 30 DD/DS carburetors and revised exhaust, shift, chassis, seat, instrument, and luggage parts.

Electrical references include the California II schematic and component legend, the V1000 G5 and 1000 SP schematics, and the printed-panel circuit. Their legends identify connectors, relays, switches, charging and ignition components, warning lamps, lighting, and fuse-block connections.

Owner-Level Service and Assembly Cautions

The owner's manual covers controls, cold and hot starting, the side-stand cutout, fuel-tap positions, luggage limits, running-in, service schedules, lubrication, throttle and clutch adjustment, brake fluid and bleeding, carburetor balancing, valve and ignition adjustment, electrical service, and the axle-load tire-pressure table.

The rear-drive section calls for the cover, gaskets, and spacer to keep their lubrication holes aligned and the BASSO mark downward; incorrect indexing can restrict oil flow to the bevel gears and bearings. The owner's manual also warns that improper initial engagement of a spark plug can strip the cylinder-head threads.

Brake, wheel, fork, and drivetrain repair work should be undertaken only with the motorcycle securely supported and with the specified fluids, gauges, and service fixtures available.
