Moto Guzzi Breva 750 IE 2003–2010 Service Manual Set

The workshop procedures cover repair and inspection, while the owner books handle operation and routine maintenance. The catalog’s numbered exploded views link the assemblies being serviced to replacement-part references.

Torque-table limitation: Some workshop tightening values conflict between the general summary and component-specific tables. Affected torque specifications require independent confirmation before use.

PDF Search, Bookmarks, and Wiring Detail

Text search and diagram detail: The workshop manual, English 2006 owner book, and parts catalog have searchable text. Text-encoding errors limit searching in the multilingual book, which has no embedded bookmarks. The English owner book and parts catalog have usable bookmarks; the workshop file’s two file-level entries do not provide chapter navigation. Small workshop wiring labels remain partly blurred when enlarged; the multilingual book’s English wiring diagram is readable with zoom.

Delivered as a ZIP containing four printable PDFs totaling 887 pages, including all title and contents pages, 41 note pages, and the owner books’ service/importer information and closing pages.

Engine Repair, Axone Diagnosis, and Shaft-Drive Service

This selected coverage overview highlights major workshop topics. Other included subjects include instrument-display functions and headlight aiming.

• Engine repair: Step-by-step engine removal and refitting, timing-unit service, clutch and flywheel work, cylinder-head repair, and crankcase disassembly.

• Gearbox and final drive: Gearbox and clutch-housing disassembly, Cardan-shaft inspection, pinion-housing service, bevel-gear contact checks, shimming, and reassembly.

• Injection diagnosis: Throttle-body synchronization, Axone 2000 live data, stored faults, active component tests, throttle-position self-teach, and lambda adaptation reset.

• Suspension and steering: Marzocchi fork removal, oil service, overhaul and troubleshooting, steering-bearing adjustment, and paired rear-damper inspection.

• Electrical testing: Dashboard and ECU pinouts, ignition and sensor checks, charging and starter references, component layouts, and complete wiring diagrams.

• Owner maintenance and parts: Pre-ride checks, service schedules, oil and filter changes, brake-pad inspection, and exploded engine, chassis, and electrical parts views.

The workshop volume is written for Moto Guzzi dealers and qualified mechanics familiar with motorcycle repair; the owner books support rider checks and routine maintenance.

Engine Disassembly and Inspection

Photo sequences and assembly views support engine removal, gearbox separation, timing-drive service, alternator removal, speed/timing-sensor work, and clutch and flywheel inspection.

Cylinder-head coverage extends to valves, guides, valve-seat repair and recutting, and spring-pack inspection. Cylinder and piston sections include measurement locations, selection grades, ring inspection, and assembly clearances. Further procedures cover the crankcase, connecting rods, crankshaft, oil sump, oil pump, and oil-pressure control valve.

Named specialist tools include valve tool 10 90 72 00, clutch-centering tool 19 90 65 00, flywheel holder 19 91 18 00, bevel-gear alignment tool 19 92 88 00, and gearbox support 19 90 25 00.

Gearbox and Bevel-Gear Setup

Gearbox procedures address the preselector, shaft and fork assembly, clutch shaft, clutch housing, and transmission-gear arrangement. Rear-drive coverage includes swingarm removal, taper bearings, seals, the hollow shaft, and transmission-case reassembly.

The bevel pinion and gear must carry matching identification numbers. Tooth-alignment views and illustrated contact patterns explain how shim selection changes gear engagement, supporting assessment of the gear pair during final-drive repair.

Axone Diagnostics and Electrical Checks

The fuel-system and injection-system layouts identify the tank, pump, filter, throttle bodies, injectors, ECU, lambda sensor, temperature sensors, bank-angle sensor, and crankshaft-position input.

Axone coverage includes live engine parameters and active tests for the fuel pump, coils, injectors, and tachometer. Setup pages explain throttle-position alignment after throttle-body or ECU replacement and lambda adaptation reset after relevant engine, exhaust, ECU, injection, or lambda-sensor work.

The CO setting is not manually adjustable; the documented facility is resetting self-adaptive parameters. A factory warning states that disturbing the throttle end-stop screw requires throttle-body replacement.

Electrical references identify the Magneti Marelli 15 RC ECU and provide dashboard pin assignments, ECU connections, sensor characteristics, and charging and starting test information. Other visual references include timing-check and phonic-wheel views, the front-fork diagram, and the complete wiring diagram.

Fork, Steering, and Rear Suspension

The workshop procedures cover the non-adjustable Marzocchi fork, including seals, bushings, internal inspection, and reassembly. Its troubleshooting table relates oil leakage and excessively soft or hard action to possible causes.

Fork cautions identify damage risks from excessive vise pressure and careless seal removal, including damage to the slider rim and bushing seat. Rear-suspension inspection addresses both dampers together and requires matching spring-preload settings.

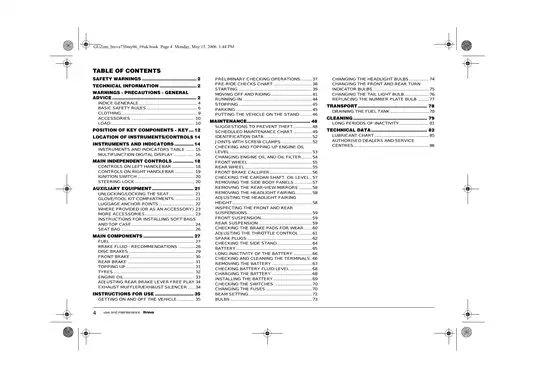

Owner Maintenance and Repair Scope

Owner-book procedures cover fuel and brake-fluid requirements, tires, engine-oil and filter service, final-drive oil checks, brake-pad wear, throttle adjustment, spark plugs, battery service, fuses, bulbs, storage, and luggage-accessory installation. The English book also describes front-caliper removal and refitting.

The dated publications contain different maintenance schedules and lubricant recommendations. Use the information that matches the motorcycle’s own documentation rather than combining the tables.

The French catalog’s 50 illustrated parts tables cover the engine, injection, exhaust, clutch, gearbox, final drive, frame, bodywork, suspension, wheels, brakes, controls, instruments, lighting, starter, alternator/regulator, wiring, locks, and decals.

Workshop repair coverage is deepest in the powertrain, injection, shaft drive, suspension, and electrical systems. Brake, wheel, and bodywork material consists mainly of owner-maintenance procedures, selected removal tasks, torque references, and parts illustrations rather than a full hydraulic-brake overhaul chapter.

Before mechanical or electrical work, support the motorcycle securely on firm, level ground, remove the ignition key, allow the engine and exhaust to cool, and follow the publication’s fuel, brake-fluid, and battery precautions.

A Preview of Ignition and Injection Test Values

The component-inspection section specifies ignition-coil primary resistance of 0.5–0.6 Ω and injector resistance of 16 Ω.

For the intake-air temperature sensor, the reference is 3.7 kΩ at 20°C (68°F), providing a temperature-specific resistance value alongside the sensor and ECU connection information.
