Moto Guzzi V1000 G5 & 1000 SP Repair Manual Set, 1978–1986 (P/N 17 92 01 61)

Use the workshop manual to plan the repair, then check the dated parts catalog for your model to match exploded-view callouts to part numbers and quantities.

The 1980 SP addendum covers wiring for the printed instrument-panel circuit. The March 1982 bulletin updates paint, decals, and color-specific bodywork in the June 1980 SP parts catalog.

PDF Files, Bookmarks, and Wiring Detail

Search and navigation: The workshop PDF and May 1978 G5 catalog have no text search. In the other three catalogs, only the introductory text page is searchable. All four catalogs have section bookmarks; the workshop PDF has none. Enlarge the wiring diagrams to read small terminal numbers and wire codes. Some codes in the SP addendum remain faint, and a dark band obscures several lines in the workshop ignition timing section.

The ZIP contains 5 printable PDFs totaling 346 pages. The workshop PDF contains 154 pages, including the 1980 addendum, covers, and blank end pages. The June 1980 SP catalog PDF contains 64 pages, including the two-page March 1982 bulletin. Catalog cover and introductory pages are included in the totals above.

Engine, Drivetrain, Brakes, and Electrical Repair

These selected workshop and parts topics show the types of work covered. The workshop manual also includes a lubrication and maintenance chart and horn fault checks.

• Engine overhaul: Step-by-step procedures cover removal of the engine and gearbox as a unit, engine disassembly, and inspection of the cylinder heads, pistons, crankshaft, and flywheel.

• Timing, lubrication, and fuel: Timing chain and gear replacement, valve timing with a degree plate, oil-pressure testing, and Dell’Orto carburetor float setup, idle adjustment, and synchronization.

• Clutch, gearbox, and rear drive: Dry twin-plate clutch service, gearbox disassembly and bench assembly, shaft and selector-drum shimming, shift checks, and bevel-gear setup.

• Chassis and brakes: Fork and swingarm bearing service, model-specific wheel work, master-cylinder and caliper overhaul, bleeding, and a braking fault chart.

• Electrical testing: Alternator, regulator, rectifier, and starter checks; twin-breaker adjustment; static and strobe timing; and separate G5 and SP wiring diagrams.

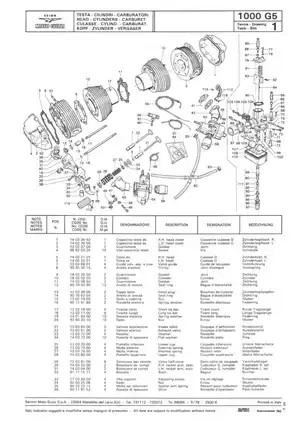

• Parts identification: Dated catalogs show exploded assemblies for the engine, drivetrain, chassis, bodywork, brakes, instruments, and wiring harnesses.

The workshop procedures are suited to mechanics and experienced owners who are comfortable using pullers, gauges, and dedicated holding tools for internal repairs.

Engine Inspection and Workshop Tools

The overhaul chapter includes valve guide and seat inspection, cylinder and ring checks, connecting rod and crankshaft matching classes, engine balance checks, and crankcase leak testing. It also covers the drive-side main-bearing flange and the reference marks used during assembly. The timing section distinguishes in-frame chain or gear replacement from the degree-plate and dial-indicator checks used to verify valve timing.

The factory tool chart identifies engine support 18 91 24 50, flywheel and starter ring-gear holding tool 12 91 18 01, clutch assembly tool 12 90 65 00, and gearbox support 14 92 96 00. The lubrication chapter separates the relief-valve and warning-switch bench checks from the oil-pressure test with the engine in the bike. The carburetor section includes vacuum-gauge checks for balancing the two carburetors.

Gearbox, Rear Drive, and Running Gear

The clutch section shows the flywheel reference mark used during assembly. Gearbox views identify the selector forks and sliding sleeves, and the bench checks cover neutral positioning and gear engagement. The rear-drive tooth-contact drawings show how to judge whether the pinion and crown wheel are meshing correctly after parts are replaced.

The rear-drive cover is indexed by its BASSO marking and matching arrows. Misaligned oil passages at the housing or cover can restrict lubrication.

The chassis chapters distinguish the G5’s spoked wheels from the SP’s cast wheels and include tire removal and balancing. Rear shock coverage gives model-specific spring checks and adjustments; the manual refers faulty damper units to the manufacturer for overhaul.

Linked Brakes, Wiring, and Parts Lookup

The hydraulic diagrams separate the independent right-front brake from the pedal-operated left-front and rear circuit. The brake chapter covers pad, disc, and line inspection. It also warns that mineral oil, grease, and aggressive solvents can damage hydraulic seals. Support the bike securely during heavy assembly work and follow the workshop precautions for fuel and electrical isolation.

Charging checks include stator winding resistance and rectifier diode tests, and the starter section gives bench test conditions. The ignition chapter covers the automatic advance unit, coils, and plugs and includes a strobe advance graph.

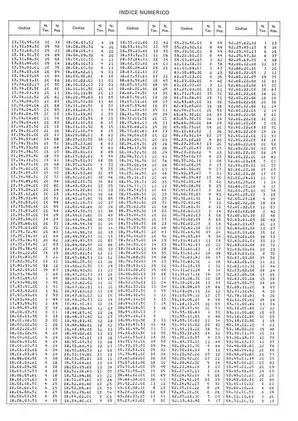

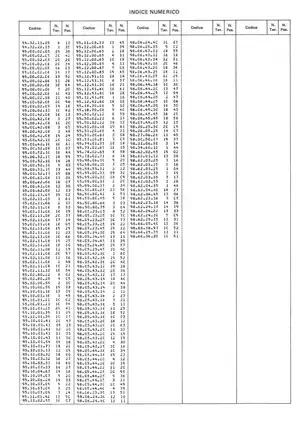

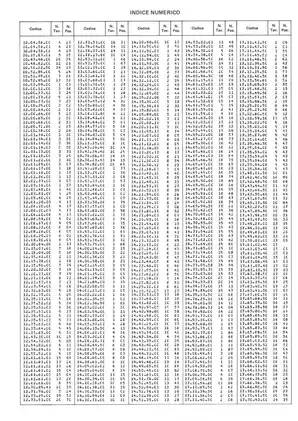

The May 1978 G5 catalog has a numeric index and 20 numbered plates. The March 1980 G5 and SP microfiche catalogs contain 41 and 38 sheets, respectively; the June SP catalog has 22 numbered plates. The G5 catalogs identify rear and parking brake control hardware. Many plates give part descriptions in Italian, English, French, and German.

Rocker, Oil Relief, and Rear-Drive Specs at a Glance

For both models, the workshop manual lists 0.22 mm cold rocker clearance for the intake and exhaust valves at compression TDC. The oil relief-valve bench check gives an opening range of 54–60 psi.

The rear-drive section specifies 0.10–0.15 mm pinion-to-crown-wheel clearance with the correct tooth-contact pattern established.
