Yamaha VMax 1200 / VMX12N(C) 2001–2007 Service Manual (P/N LIT-11616-14-12)
439 Pages • ZIP Download: 1 Printable PDF (English)
Yamaha Models Covered & Key Technical Specifications
Models & Model Codes: VMax 1200 (VMX12N(C))
Model Years: 2001–2007 (2001, 2002, 2003, 2004, 2005, 2006, 2007)
-
Engine: Liquid-cooled, 4-stroke, DOHC, V-type 4-cylinder, 1,198 cm³
-
Bore x stroke: 76 x 66 mm (2.99 x 2.60 in)
-
Compression ratio: 10.5:1
-
Fuel system: 4 x MIKUNI BDS35 carburetors
-
Transmission: 5-speed, constant mesh, shaft drive
-
System voltage: 12 V
-
Engine oil capacity (with filter): 3.4 L (3.0 Imp qt, 3.6 US qt)
-
Radiator capacity: 3.05 L (2.68 Imp qt, 3.22 US qt)
Yamaha Manual Features & Selected Content Preview

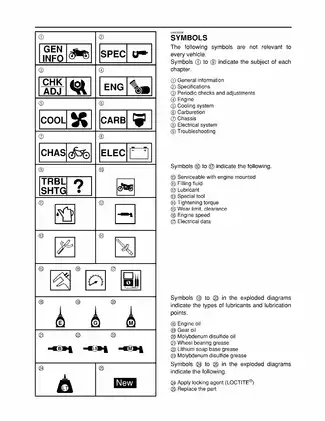

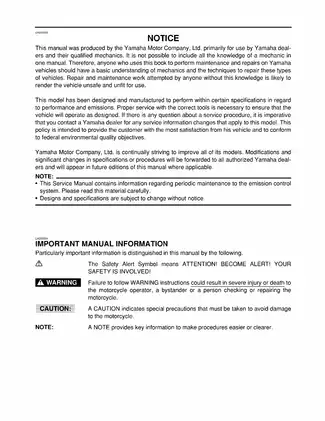

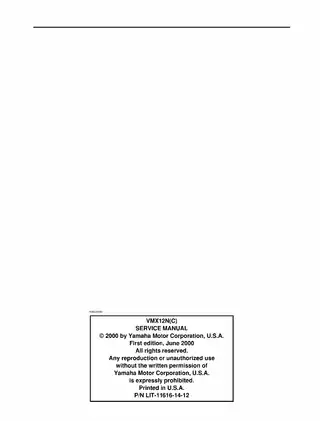

This Yamaha factory service manual for VMax 1200 / VMX12N(C) is the First Edition, June 2000: P/N LIT-11616-14-12, manual code 5GK-28197-E0. California-specific data are identified where the configuration differs.
PDF Bookmarks, Diagram Detail, and File Contents
Navigation and small labels: PDF text search is not available. Embedded bookmarks cover the chapters, major service sections, and full wiring diagram. Small wire-color and connector labels require zooming, particularly in the chapter circuit diagrams.
ZIP download containing one printable English PDF with 439 pages, including 16 cover and front-matter pages and one rear-cover page.
Engine, V-Boost, Shaft Drive, and Electrical Repair
The following selected service topics show part of the manual's coverage. Other examples include throttle-cable free-play adjustment and headlight-beam adjustment.
-
Top-end and V-Boost work: Camshaft and timing-chain removal, inspection, and installation; cylinder-head and valve service; V-Boost checks, butterfly-shaft lever clearance adjustment, and synchronization.
-
Engine and transmission repair: Engine removal and installation, clutch and starter-clutch service, generator work, oil-pump inspection, crankcase separation, crankshaft and balancer service, connecting rods, pistons, and internal transmission checks.
-
Shaft-drive setup: Middle-drive and driven-shaft disassembly and assembly, middle-gear backlash and alignment, final-drive leak diagnosis, ring-gear backlash, stopper-bolt clearance, and pinion-to-ring-gear alignment.
-
Fuel and cooling systems: Mikuni BDS35 carburetor inspection, assembly, fuel-level adjustment, and synchronization, plus fuel-pump testing, radiator and cap checks, thermostat service, and water-pump repair.
-
Chassis and hydraulic repair: Wheel removal and static balancing, brake discs and pads, master cylinders and calipers, clutch master and release cylinders, front-fork overhaul, steering-head service, rear-shock inspection and replacement, and swingarm work.
-
Electrical diagnosis and reference data: Circuit diagrams and fault isolation for ignition, starting, charging, lighting, signaling, cooling-fan control, fuel pump, and V-Boost systems, with torque tables, capacities, wear limits, clearances, and electrical test values.
Yamaha produced the manual primarily for dealers and qualified mechanics; any other user is expected to already understand basic mechanics and motorcycle repair techniques.
Factory Procedures and Periodic Maintenance

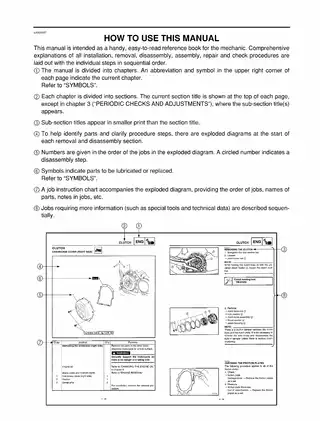

Step-by-step procedures cover work such as camshaft installation, carburetor assembly, and front-fork overhaul. Exploded views and job instruction charts identify part order, replacement items, lubrication points, special tools, and related technical data.

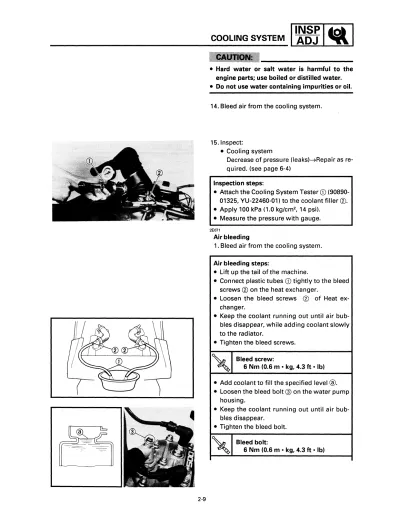

The maintenance chapter covers valve-clearance adjustment, ignition-timing checks, compression and oil-pressure checks, hydraulic clutch and brake bleeding, final-drive service, steering and suspension checks, and battery and lighting work.
Fault Isolation and Circuit Testing
The dedicated troubleshooting chapter separates starting problems, incorrect idle, poor midrange or high-speed performance, difficult shifting or jumping out of gear, clutch slip or drag, overheating, poor braking, fork faults, unstable handling, and lighting or signaling failures. It directs the mechanic to the affected engine, fuel, chassis, or electrical system.
Electrical checks extend to switch continuity, bulb and socket condition, pickup and ignition coils, charging components, relays, thermal switches, fuel-pump operation, and V-Boost servo operation. The starting-circuit cutoff logic is diagrammed and tested separately, helping distinguish an interlock fault from a starter-motor problem. Starter-motor service includes brush, commutator, armature, bearing, and oil-seal checks.
Diagrams and Yamaha Special Tools
Named references include the cooling-system diagrams, oil-flow diagrams, ignition-system circuit diagram, electric-starting circuit diagram, V-Boost circuit diagram, and full VMX12N(C) wiring diagram with component legend and wire-color key. Separate cable-routing pages support reassembly.
The special-tool section identifies both function and part number. Examples include the YU-08030-A vacuum gauge for carburetor synchronization, YM-33961 tappet adjusting tool, YM-33222 middle-drive gear holder, YM-04062 universal-joint holder, and YM-01230 final-gear backlash band.
California Data and Service Limits
California coverage includes the evaporative-emission-control maintenance item and separate carburetor, idle/vacuum, camshaft, and ignition specifications. No separate later-model supplement is included.
Rear shocks: The manual covers adjustment, inspection, removal, and replacement of the assemblies. The nitrogen-filled dampers are not to be opened; this section does not provide internal shock-rebuilding procedures.
The camshaft section warns that incorrect shaft movement or timing during installation can damage the pistons and valves. In middle-gear repair, overtightening the driven-shaft bearing housing can reduce backlash and damage both the gears and collapsible collar.
Brake and clutch hydraulics, a pressurized cooling system, battery service, and internal engine repair require the correct support, isolation, tools, and safety procedures described by Yamaha.
Valve-Clearance and Carburetor Fuel-Level Examples
Valve adjustment: Cold valve clearance is 0.11–0.15 mm for intake valves and 0.26–0.30 mm for exhaust valves. Pad-selection charts relate measured clearance to replacement pad thickness.
Carburetor fuel level: The fuel-level procedure specifies 15–17 mm below the line on the vacuum chamber, with gauge-based measurement and float-adjustment guidance.
