Aprilia Models Covered & Key Technical Specifications

Model: Dorsoduro 1200 (engine: M555M)

Model Years: 2010–2012 (2010, 2011, 2012)


  • Engine displacement: 1197 cm³

  • Engine type: 90° longitudinal V-twin, 4-stroke

  • Transmission: Mechanical 6-speed

  • Engine idle speed: 1400 ± 100 rpm

  • Bore / stroke: 106 x 67.8 mm

  • Wheelbase: 1528 mm

  • Fuel tank capacity: 15 liters

  • Engine oil capacity: 3.1 liters (without filter change), 3.35 liters (with filter change)

  • Compression ratio: 12.0:1

  • Electrical system battery: 12 V - 12 Ah YTX 14 - BS

Aprilia Manual Features & Selected Content Preview

Aprilia’s 2010 Dorsoduro 1200 Service Station Manual (P/N 897269) covers maintenance, diagnostics, and repair of the M555M engine and the vehicle’s chassis systems.

PDF Search, Bookmarks, and Wiring Detail

Text navigation and circuit labels: The main text is searchable, but embedded diagram labels are not consistently included in text searches. PDF bookmarks cover chapters and individual procedures, although some chapter entries have no working destination and some section links land on the preceding page. Small labels in the General wiring diagram remain partly blurred when enlarged.

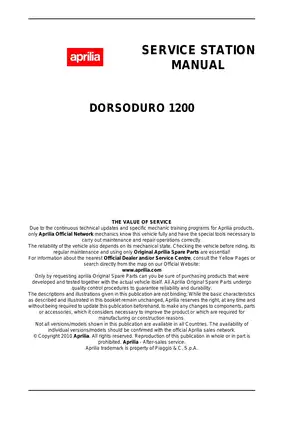

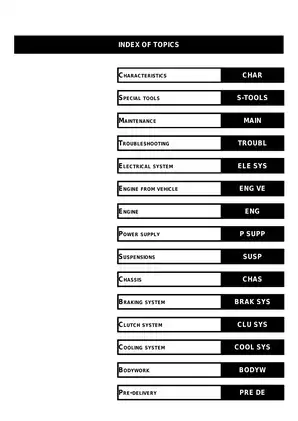

One printable English PDF contains 382 pages, including the original cover and front matter, two blank pages, and a two-page alphabetical index.


Engine Overhaul, Ride-by-Wire Diagnostics, and Chassis Service

These selected contents outline the main workshop coverage. Other topics include drive-chain inspection and adjustment, bodywork removal, and pre-delivery checks.

  • Engine overhaul: Step-by-step procedures for engine removal, cylinder-head disassembly, valve and guide inspection, cam timing, piston and ring checks, and crankcase splitting.

  • Transmission and clutch repair: Gearbox disassembly, gear-selector checks, and wet multi-plate clutch inspection and reassembly.

  • Marelli 7SM fuel injection: Ride-by-wire fault isolation, demand-sensor and throttle-body self-learning, and ECU activation following replacement or remapping.

  • Electrical troubleshooting: EFI and no-start diagnosis, injector and ignition-coil testing, CAN communication checks, immobilizer key registration, and wiring references.

  • Sachs suspension: Front fork overhaul with bushing and seal service, internal inspection, reassembly, and oil-level setting; steering-bearing adjustment and rear shock removal.

  • Braking system: Conventional front and rear brake service, pad replacement, and hydraulic bleeding. Dedicated ABS and ATC diagnostic and repair procedures are not included.

  • Cooling and lubrication: Water-pump and radiator removal, coolant replacement, and oil-pump disassembly, inspection, and installation.

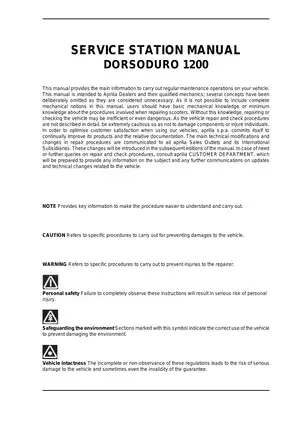

Written for Aprilia dealers and their qualified mechanics, the manual assumes prior mechanical knowledge and access to the specified workshop equipment.

Engine Rebuild Data and Special Tools

Crankshaft class tables guide main-bearing and connecting-rod bushing selection, while cylinder-piston coupling tables distinguish factory size classes. The manual identifies different marking locations on first- and second-generation crankcases and separates primary-drive gear classes. These details help match replacement components to the engine being rebuilt.

Cylinder-base gasket selection is tied to measured piston protrusion and the resulting compression ratio. Crankshaft endplay measurement and main-bushing removal and installation are covered as workshop procedures.

The factory tool listings identify timing pin 020719Y, timing tool 020720Y, and clutch housing locking tool 9100896, along with dedicated bushing removal and installation tools. Component-specific torque tables, wear limits, and assembly tolerances accompany the repair sections. Maintenance references include recommended engine oil, coolant, brake fluid, and clutch fluid.

The cam-timing section warns that applying final torque to the camshaft gear nuts with the shafts still mounted in the head can permanently damage the cylinder head. Crankcase assembly notes also address excess sealing compound, which can obstruct the engine’s oil passages.

Engine removal requires secure support and lifting equipment; the safety notes also address hot components and pressurized coolant.

Marelli Diagnostics and Component Limits

Diagnostic procedures reference Navigator and Piaggio Group Diagnostic Software. Current and stored fault status, live parameters, and actuator tests support fault isolation. The operating descriptions distinguish SERVICE warnings from URGENT SERVICE conditions involving reduced torque, limp-home operation, or engine shutdown.

Demand-sensor and throttle-body replacement are linked to the corresponding self-learning procedures. The throttle bodies are replacement assemblies rather than internally rebuildable units; the demand sensor’s contactless potentiometers are also non-serviceable.

Wiring References and Assembly Drawings

The General wiring diagram and ECU engine/vehicle connector pinouts support circuit tracing. Front Cable Harness Arrangement views show routing and retention points. Gearbox Shafts and Timing System exploded drawings identify assembly components, while the Cooling System circuit diagram shows the cooling layout.

Valve, Spark-Plug, and Fork Service Data

Valve-clearance specifications list 0.15–0.20 mm at the intake and 0.20–0.25 mm at the exhaust, alongside the shim-adjustment procedures. Spark-plug inspection data gives an electrode gap of 0.6–0.7 mm.

For the Sachs fork, the oil-level reference is 135 mm from the sleeve edge, with the spring removed and the preload pipe installed. The filling section specifies an upright, compressed fork for this measurement.
