1996–1997 Aprilia Leonardo 125 Service & Repair Manual PDF (P/N 928V)

This Aprilia service and repair manual covers the 1996–1997 Leonardo 125 with the liquid-cooled, four-stroke Rotax 120 engine. The cover carries code 928V. It is the September 1996 edition, reprinted in January 1997.

PDF navigation and wiring detail: Body text and specification tables are searchable, with embedded bookmarks for chapters and individual procedures. The cover and labels within the full wiring diagrams are not searchable. Small labels in those diagrams require zooming.

• Scheduled maintenance: Regular service intervals, lubrication charts, oil and filter service, throttle adjustment, idle adjustment, and fluid-capacity specifications.

• Engine access: Component access with the engine installed, complete engine removal, and identification of the speed variator, clutch, and drive belt.

• Fuel system: A-96 and B-96 configurations, fuel-supply checks, pump removal, and Mikuni BS 26 carburetor disassembly and inspection.

• Cooling system: Radiator and fan removal, coolant replacement and bleeding, temperature-sensor checks, and cooling-fan circuit diagnosis.

• Electrical diagnosis: Charging-system tests, C.D.I. ignition checks, connector test data, wiring diagrams, and troubleshooting charts.

• Chassis repair: Disc brakes and hydraulic bleeding, wheel bearings, steering column bearings, telescopic front-fork service, and rear hydraulic shock absorbers.

Written for professional mechanics, this manual assumes prior repair knowledge and intentionally leaves out basic explanations.

A-96 and B-96 fuel systems

Separate fuel-system diagrams distinguish the earlier A-96 layout from the B-96 arrangement. The operating description follows B-96, including its vacuum-operated pump, header tank, return circuit, and stabilizer jet. These layouts help identify the correct hose connections when tracing a fuel-delivery fault.

The carburetor section identifies Mikuni BS 26-49 and BS 26-61 variants, with variant-specific jet and needle data. Inspection coverage includes the diaphragm, float, needle valve and seat, and automatic cold-start device. Main and pilot jet specifications accompany the carburetor data.

C.D.I. testing and electrical fault isolation

The ignition section pairs component resistance checks with measurements at the C.D.I. harness connector. Expected readings and follow-up checks help distinguish wiring, pick-up coil, and ignition-coil faults before component replacement. The manual cautions that resistance testing of the C.D.I. unit itself provides only an approximate assessment.

Ignition and coolant-temperature indicator circuit diagrams support those checks. Cable-routing drawings and electrical component position views locate the hardware, while troubleshooting charts cover starting, charging, overheating, and running faults.

Engine removal and separate engine-manual coverage

The engine chapter identifies parts accessible with the engine in the frame and documents removal of the complete engine assembly. Internal engine repair is covered by separate engine service manuals No. 929 and No. 930, which are not included. The thermostat-valve and coolant-pump sections also refer to those publications.

Valve-clearance adjustment is included in the maintenance schedule. Follow the manual's chassis-support and lifting precautions during engine removal.

Brake, steering and suspension service

Brake coverage extends to pad replacement, disc wear and runout checks, and separate front and rear hydraulic circuits. Wheel service includes axle and rim inspection, front bearing replacement, and balancing.

Front-fork procedures cover oil-level checks, disassembly, seals, bushings, and internal component inspection. Steering bearing adjustment and rear shock preload are also covered. The steering section warns that forcing the adjusting nut can damage the bearings.

The engine connection link and its fulcrum pin nut receive separate attention, including silent-block inspection and component-specific torque data.

1997 updates and air-filter precautions

The Updates section revises air-filter details, fuse locations, electrical component positions, and the complete wiring diagram. Its revised fuse layout groups the fuses beneath the battery cover, helping match electrical access information to the updated configuration.

Air-filter coverage distinguishes the engine-intake element from the drive-belt housing filter. The manual warns that oil carried into the belt housing can damage the drive belt or cause slipping.

English, Italian and Spanish PDF edition

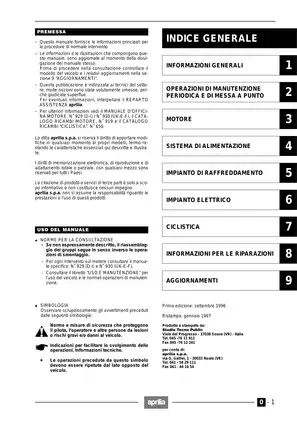

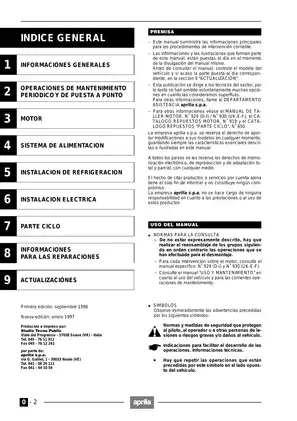

One printable 262-page PDF contains English, Italian, and Spanish text: one cover, four preliminary pages, 236 pages across sections 1–8, a 20-page Updates section, and one final unnumbered sheet of update headings. All nine notes pages are already included in these counts.
