John Deere 1420/1435/1445/1545/1565 Front Mower Technical Manual, 2002 (P/N TM1806)

John Deere Technical Manual P/N TM1806, published November 2002 as the North American Version, covers the 1420, 1435, 1445, 1545, and 1565 Front Mowers.

Searchable Text, Bookmarks, and Diagram Detail

Finding procedures and wiring details: Searchable PDF text and embedded bookmarks provide access to system sections and individual procedures. Dense wiring diagrams require zooming to read small wire, pin, and connector labels.

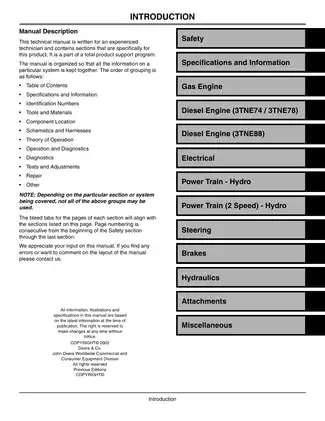

A single printable 834-page PDF includes 814 numbered manual pages, a 16-page index, the original cover, a one-page introduction, and two unnumbered blank pages.

Engine Overhaul, Hydrostatic Drives, and Attachment Repair

The following selected coverage highlights outline the main workshop areas. Other topics include high-altitude carburetor jet installation and fuel-tank removal.

• Engine repair: Separate gasoline and diesel chapters with step-by-step procedures for engine removal, cylinder-head work, internal inspection, and overhaul.

• Hydrostatic power train: Single-speed and two-speed range transaxle diagnosis and repair, including the hydrostatic unit, charge pump, differential, PTO, and 4WD/MFWD components.

• Electrical troubleshooting: Serial-specific schematics, wiring harness drawings, component locations, circuit diagnosis, bench tests, and electrical repair procedures.

• Hydraulic systems: Pressure and flow testing, lift and auxiliary-circuit diagnosis, weight-transfer troubleshooting, pump repair, and control-valve service.

• Steering and brakes: Steering leakage tests and toe-in adjustment, plus turn-brake adjustment, brake-switch checks, and linkage repair.

• Attachments: Mower-deck and 7-Iron V-Flex diagnosis, belt and spindle service, gearbox repair, and heavy-duty snowblower repair.

• Service specifications: Component torque values, wear limits, hydraulic pressures and flows, electrical test values, fluid capacities, and adjustment data.

This technical manual is written for experienced technicians.

Gasoline and Diesel Engine Work

Engine documentation is separated by build: the 1420 John Deere/Yanmar 3TG72-JMA gasoline engine, 1435 Yanmar 3TNE74C-JUV diesel, 1445/1545 Yanmar 3TNE78A diesel, and 1565 Yanmar 3TNE88 diesel.

Diagnostic procedures cover compression, oil pressure, fuel pressure and flow, cooling-system pressure, thermostat operation, valve clearance, valve lift, injection nozzles, and fuel-system bleeding. Gasoline-engine coverage also includes carburetor inspection and choke and governor adjustments.

Internal repair extends to valve guides and seats, pistons and connecting rods, cylinder-bore measurement and honing, crankshaft and main bearings, camshaft and followers, timing gears, oil pumps, rear seals, and flywheels.

Injection-pump limits: The timing sections warn against routine timing adjustment. Pump and governor repair is assigned to a qualified fuel-injection repair shop, with removal and installation restrictions for authorized factory-trained technicians.

The 3TNE88 section identifies factory-set gear/hub timing that must remain undisturbed and warns that operating the injection pump without its required oil can damage it.

Transaxle Overhaul and Driveline Alignment

Power-train tests include neutral-creep adjustment, F-N-R linkage adjustment, differential-lock setup, and 4WD axle pivot-clearance checks. Repair procedures cover transaxle removal, hydrostatic-unit separation and overhaul, charge-pump service, PTO disassembly, differential repair, and 4WD axle work.

The 1545/1565 chapter adds two-speed range and four-wheel-drive output-unit repair. Component drawings identify the front axle housing and its relationship to the differential and 4WD driveline.

Alignment and assembly: JDG-1389-1 is the engine-alignment base, used with JDG-1389-2 for 1400-series machines or JDG-1389-3 for the 1545/1565. Engine-to-transaxle alignment is a specified damage-prevention check after driveshaft removal.

Two-speed hydrostatic assembly instructions distinguish swashplate thrust-washer and shim positions and orientation. Dimensioned fabrication drawings support making the PTO clutch-piston compression tool and differential-lock snap-ring tools.

The lubricant section specifies HY-GARD J20C, requires Low Viscosity HY-GARD J20D below -18°C (0°F), and warns against Type F automatic transmission fluid.

Serial-Specific Electrical Diagnosis

The early and later wiring documentation helps match circuit tests to the machine’s production configuration before tracing a fault. Examples include Schematic (1400 Gas Series S/N -20000) and Schematic (1400 Diesel Series S/N 20001-; 1500 Series S/N 10001-; 1545 All).

The Cranking Circuit Schematic and Operator Presence and PTO Interlock Circuit Schematic accompany circuit operation and fault-isolation information. Tests cover loaded and no-load starter amperage, alternator output, glow plugs, relays, switches, fuel-shutoff solenoids, cooling-fan circuits, and cruise control. Cab road-light wiring is also included.

Hydraulic, Steering, and Brake Diagnosis

Hydraulic testing distinguishes the 1400-series charge-pump system from the 1500-series hydraulic-pump system. Procedures cover oil warm-up, bleeding, charge pressure, pump flow, PTO relief, and implement relief.

For the 1500 series, implement-relief specifications are 9307 kPa (1350 psi) at slow idle and 11,031 kPa (1600 psi) at fast idle, with hydraulic oil at operating temperature.

Drawings include the Main Hydraulic Schematic With Optional Auxiliary Valve (1500 Series) and Double Spool Auxiliary Hydraulic Kit Schematic. Lift-cylinder coverage is removal and replacement; the manual identifies these cylinders as nonserviceable.

Steering leakage tests distinguish valve leakage from cylinder leakage. Brake repair extends to linkage, pedals, and park-brake hardware. Tool references include JDG1386 for STC hose removal, JT01682 with JDG472/JDG560 compression-test adapters, D05104ST/JDG692 cooling-system pressure equipment, and the JDG282 temperature gauge for hydraulic warm-up checks.

Mower Decks, V-Flex, and Snowblower Service

Attachment procedures cover 60-, 62-, and 72-inch mower decks and the 7-Iron V-Flex deck. Work includes deck leveling, belt tension, vertical-belt alignment, blade sharpening and balancing, spindle disassembly, driveshaft repair, and gearbox service.

The 60-inch heavy-duty snowblower material covers gear-case inspection, rotor and fan installation, coupler replacement, and rotor-bearing replacement. Miscellaneous repair sections address covers, the operator’s seat platform, wheels, and fuel tanks.

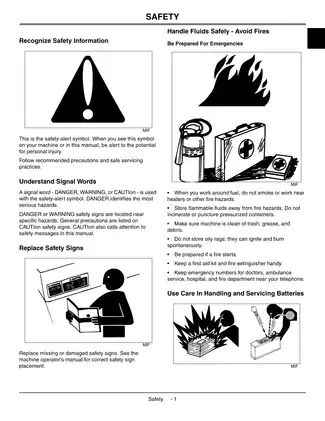

Follow the manual’s lifting/support, pressure-relief, rotating-PTO, and electrical-isolation precautions before repair work.

A Preview of Engine Clearances and Test Specifications

For the 1420 gasoline engine, the valve-clearance specification is 0.2 mm (0.008 in.) with the engine at room temperature. Its cooling-system capacity is 6.6 L (7 qt
