Yamaha DT230 (DT230L) Motorcycle Service Manual - Dealer Diagnostics & Repair 1998 Edition
Product Gallery

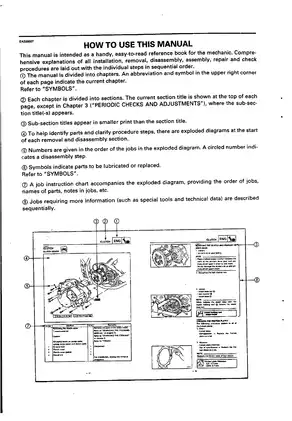

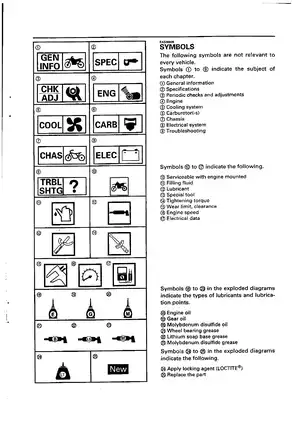

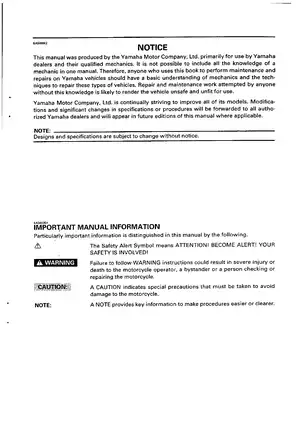

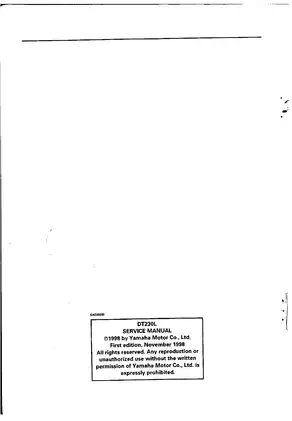

Sample pages from the Yamaha DT230 (DT230L) Motorcycle Service Manual - Dealer Diagnostics & Repair 1998 Edition manual
Purchase Information
Technical Specifications
- Document Number / Seller:
- 27739 / Daniel Jackson
- File Size:
- 7.27 MB
- File Type:
- Language:
- English
- Pages:
- 314
- Printable:
- Yes
- Estimated Download Time:
- 0.15 Minutes
- Delivery Format:
- Digital (PDF) - Instant Access
- Category:
- Motorcycle
- Brand:
- Yamaha
- Reviewed and Approved:
- Dec 24, 2025
Yamaha Models and Parts Covered in this Motorcycle Manual
- DT230 (1998)
- DT230L (1998)
Complete Manual Information
Yamaha DT230 (DT230L) Motorcycle Service Manual – 1998 Edition
Maximize the performance and reliability of your Yamaha DT230 with this official factory service manual. Originally released in November 1998 for the 4TP3 series, this professional-grade technical guide is the primary resource used by authorized Yamaha dealers. It provides exact specifications and verified repair procedures that go far beyond standard aftermarket manuals, ensuring your motorcycle remains in peak factory condition.
Advanced 2-Stroke Technology and Traction Control
The Yamaha DT230 is a highly specialized machine featuring an 8-bit microcomputer-controlled 3-Dimensional Traction Control System. This manual offers the only authorized technical breakdown of how this system monitors engine acceleration to optimize rear-wheel grip. It is an essential tool for any owner looking to maintain the complex electronic and mechanical synergy of this 224cc liquid-cooled 2-stroke engine.
- Full Model Coverage: Specific data for the DT230 and the DT230L technical series (Model Code 4TP3-AE1).
- Engine Precision: Detailed specs for the 66.8 x 64.0 mm bore and stroke, the YPVS (Yamaha Power Valve System), and the electric start mechanism.
- Factory Performance: Access accurate settings for the Mikuni TM30 carburetor and the 6.5:1 compression ratio.
Comprehensive Technical Features
- Professional Troubleshooting: Systematic diagnostic charts to quickly identify and resolve issues with the engine, electrical system, or fuel delivery.
- Step-by-Step Assembly: Clear, sequential instructions for major overhauls, including the constant-mesh 6-speed transmission and the cooling system.
- Visual Repair Guides: High-quality exploded diagrams identify every component and indicate exactly where to apply specific lubricants like Yamaha Bond No. 1215 or lithium soap base grease.
- Precision Torque Values: Complete tables for all critical fasteners, such as cylinder head nuts (22 Nm) and wheel axle nuts (104 Nm), to prevent mechanical failure.
Vehicle Identification and Maintenance
To ensure you are using the correct data for your specific bike, this manual includes:
- Serial Number Locations: Detailed guidance on finding the Vehicle Identification Number (VIN) on the steering head pipe and the Engine Serial Number on the crankcase.
- Model Code Labels: Instructions on identifying the specific model code affixed to the frame for accurate parts synchronization.
- Scheduled Service: Official maintenance intervals for 500 km, 6,000 km, and 12,000 km inspections.
- Chassis & Suspension: Full service specifications for the 250 mm travel telescopic forks and the New Monocross rear suspension system.
Manual Contents
- General Information: Identification, special tools, and motorcycle features.
- Specifications: Exhaustive engine, chassis, and electrical data.
- Periodic Checks and Adjustments: Comprehensive tuning for throttle play, idle speed, and oil pump bleeding.
- System Overhauls: Individual chapters for Engine, Cooling, Carburetion, Chassis, and the 12V Electrical System.
Whether you are performing a simple oil change or a complete frame-up restoration, this authorized 1998 Yamaha DT230L Service Manual provides the professional foundation needed for high-quality results.
