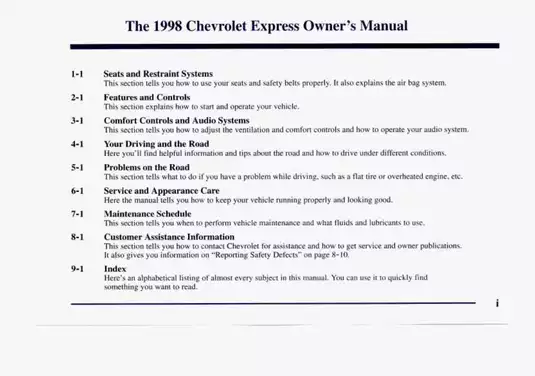

1998 Chevrolet Express Van Owner's Manual (P/N C9814 B)

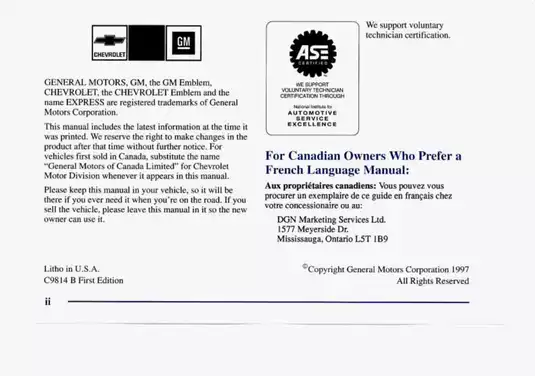

1998 Chevrolet Express Van owner's manual covering Passenger Van, Cargo Van, and Cab and Chassis configurations. GM First Edition, copyright 1997, marked C9814 B on the copyright page.

A 386-page scanned PDF in English, with an existing OCR text layer for searching the main text.

• Seats and restraints: Front seat adjustment, rear bench seat removal and reinstallation, safety belt checks, child restraint placement, and air bag identification.

• Starting and controls: Gasoline-engine starting, automatic transmission operation, Passlock security, remote keyless entry synchronization, and the optional engine coolant heater.

• Routine service: Air cleaner replacement, hot and cold transmission-fluid checks, brake wear guidance, bulb replacement, and windshield wiper blade replacement.

• Electrical reference: Instrument Panel Fuse Block and Engine Compartment Fuse Relay Center layouts, protected-circuit tables, warning-light explanations, and trailer harness color codes.

• Roadside and towing: Jump-starting, gasoline-engine overheating guidance, flat-tire procedures, vehicle towing, and trailer-weight tables organized by model, engine, and axle ratio.

• Maintenance planning: Separate Short Trip/City and Long Trip/Highway schedules, owner checks, periodic inspections, recommended fluids and lubricants, and maintenance records.

Written for vehicle owners learning the controls and routine care; hands-on maintenance assumes the knowledge, experience, and tools specified by GM.

VORTEC Engines and Maintenance Coverage

Engine identification and maintenance-parts tables distinguish the VORTEC 4300 (VIN W), 5000 (VIN M), 5700 (VIN R), and 7400 (VIN J) gasoline engines. Filter, PCV valve, spark plug, and radiator cap references help match routine service parts to the engine before ordering.

The schedules distinguish delivery work, frequent idling, dusty conditions, and trailer towing from highway use. They also separate standard and locking-differential servicing and identify inspections assigned to a qualified service center.

Capacity tables account for cooling systems with or without a rear heater, front-only versus front/rear air conditioning, and the different fuel tanks used in vans and Cab and Chassis models.

Dashboard Controls, Restraints and Roadside Procedures

Dashboard layouts and vehicle-symbol references explain lamps, indicators, and interior controls alongside new-vehicle break-in and ABS operation. Optional equipment coverage includes power door locks, cruise control, front/rear climate controls, and Delco audio systems with THEFTLOCK.

The restraint section explains Next Generation reduced-force air bag identification and child-restraint placement differences between passenger vans and Cargo/Cab and Chassis models.

Flat-tire coverage distinguishes jack storage for vans with 15-passenger seating and refers completed Cab and Chassis vehicles to the body supplier's instructions. Illustrations identify underhood service points and front and rear jacking positions.

The wheel-change section explains how improper wheel-nut tightening can cause brake pulsation and rotor damage. Cooling-system cautions describe corrosion risks to the engine, heater core, and radiator from unsuitable coolant.

Electrical References and Repair Limits

Fuse tables identify circuits for Passlock/EVO steering, the brake-transmission shift interlock, lighting, and upfitter provisions. Trailer information distinguishes six-wire light-duty and eight-wire heavy-duty harnesses, with additional electric-brake and accessory circuits in the latter.

Complete vehicle wiring schematics and internal engine/transmission overhaul procedures are outside this owner's manual's scope. Detailed mechanical and air bag repair requires the separate GM Service Manual.

Diesel-specific starting, fuel, lubrication, and maintenance information is assigned to the Diesel Engine Supplement, which is not included.

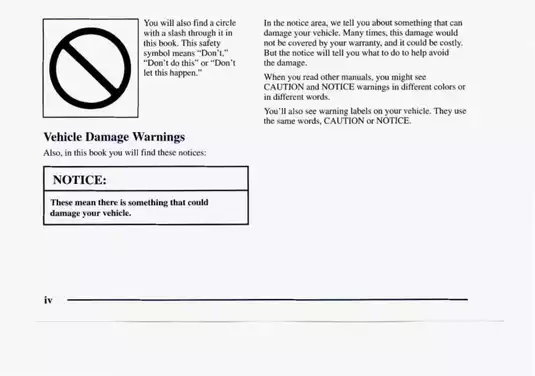

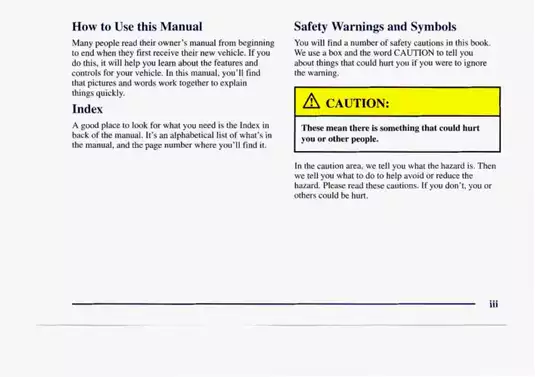

Review the manual's safety warnings on carbon monoxide, air bag deployment, and restraint installation before maintenance or repair work.

PDF Navigation and Scan Quality

Included pages: The total includes two cover pages, six preliminary pages, ten notes pages, three maintenance-record pages, and two publication-ordering pages. These are already counted in the 386 pages; there is no separately appended supplement.

Text search and navigation: OCR search covers the main text but does not reliably capture every table entry or image label. The 167 PDF bookmarks span the chapters and index; the Air Cleaner and Automatic Transmission Fluid bookmarks land before their matching subsections.

Readability: Body text is readable. Some small labels in the engine-compartment fuse layout remain blurred when enlarged.
