Chevrolet Cavalier 1998 Owner's Manual Set (P/N 10296279 B)

The supplement replaces the original instrument-panel and engine-compartment fuse information and is used with the owner’s manual for fuse identification. Its Sunfire reference applies to the supplement, not to the Cavalier owner’s manual as a whole.

Workshop repair scope: The separate Cavalier service manual is not included. These publications cover operation, maintenance, and roadside assistance, not full diagnostic trees, DTC test procedures, complete wiring schematics, connector-level diagnostics, major-component teardown, or internal engine and transaxle overhaul.

Text Search, Bookmarks, and Fuse-Map Detail

Search and diagram labels: OCR text supports searches across the main chapters and fuse supplement; some quick-reference pages and illustration labels are not searchable. Bookmarks cover chapters and subtopics, with occasional misplaced targets and no supplement bookmark. Small fuse-map labels need zooming and remain soft in places.

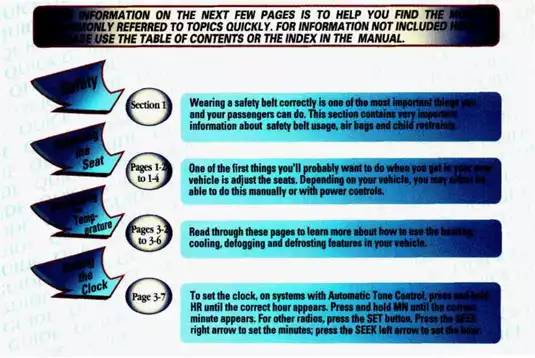

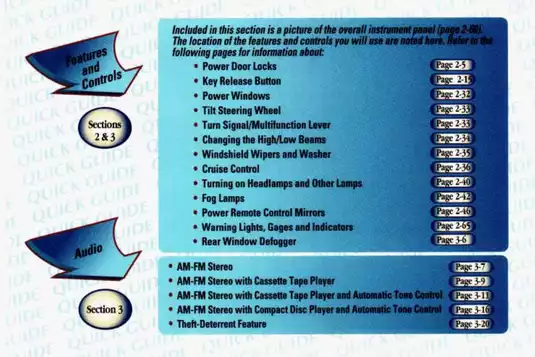

Both publications are supplied in one printable, 400-page PDF, including covers, quick-reference material, blank and note pages, and one additional page.

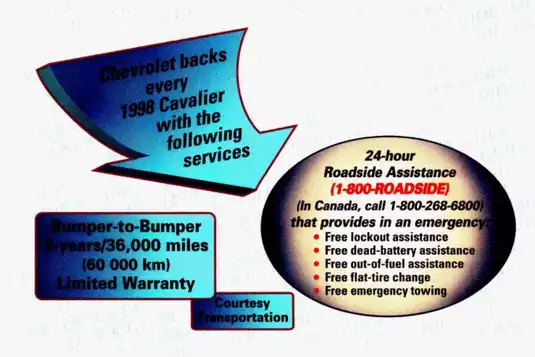

Owner Checks, Roadside Procedures, and Vehicle Controls

The overview below is a selection of covered topics. Other sections explain seat adjustment and child-restraint installation.

• Engine and fluid checks: Engine-specific starting instructions, coolant-heater references, air-cleaner replacement, and checks for engine oil, coolant, power steering, hydraulic clutch, brakes, and washer fluid.

• Transaxle operation: Five-speed manual and three- and four-speed automatic selector patterns, forward-range use, parking procedures, starter-switch checks, and brake-transaxle shift-interlock checks.

• Maintenance planning: Short Trip/City and Long Trip/Highway schedules, owner checks, periodic inspections, maintenance records, approved lubricants, capacities, replacement-part references, and wheel-fastener specifications.

• Electrical identification: Corrected Instrument Panel Fuse Block and Engine Compartment Fuse Block layouts and usage charts, with bulb-replacement instructions and Z-24 lamp references.

• Roadside procedures: Step-by-step instructions for jump starting and flat-tire replacement, plus jack placement, compact-spare use, towing, overheating checks, and freeing a stuck vehicle.

• Controls and security: Remote keyless-entry resynchronization, Passlock guidance, standard and optional climate-control operation, and Delco radio, cassette, and CD instructions.

• Convertible top: Step-by-step top and boot procedures, emergency manual-raising coverage, and care instructions for the fabric top and weatherstrips.

Written for vehicle owners, the manual explains routine operation and owner checks; maintenance work still requires the knowledge, experience, and tools specified by GM.

Maintenance Planning and Powertrain Differences

For repair planning, it gives a technician or experienced owner the model-specific baseline needed to identify the configuration, locate controls and service points, confirm operating limits, and check specifications before work begins.

The three-speed automatic has an owner-checkable fluid procedure. The four-speed unit is marked not owner serviceable and directs fluid-level checks and leak repairs to a dealer or service center.

The schedules distinguish severe-use conditions and assign EGR inspections specifically to the 2.2L engine. Periodic-inspection checklists address steering, suspension, front-drive-axle boots and seals, brakes, and cooling. Engine reference tables provide firing order and performance ratings alongside the service data.

Trailer Towing and Convertible Restrictions

Trailer-towing guidance applies to properly equipped vehicles with the 2.4L engine and four-speed automatic transaxle. It excludes the 2.2L, manual-transaxle, three-speed automatic, and convertible configurations.

Recreational towing is treated separately: four-wheels-down towing is covered for the four-speed automatic and five-speed manual, but not for the three-speed automatic.

The emergency manual-raising procedure requires two people; manual lowering, forcing the top, lifting by its linkage, or twisting it can damage the top mechanism.

Fuse Assignments, Displays, and Service Cautions

Fuse usage charts identify PCM, fuel-pump/injector, ABS, and SRS circuits. Accessory assignments cover HVAC, the cooling fan, lighting, remote keyless entry, power windows, sunroof, and convertible-top controls.

The Standard Cluster and Optional Cluster illustrations distinguish the displays. Warning-light guidance covers charging, hydraulic brakes, ABS, Enhanced Traction System, coolant level and temperature, oil pressure, OBD II, Passlock, and the manual-transaxle upshift indicator.

The instrument-panel control map and separate 2.2L Engine (Code 4) and 2.4L Engine (Code T) underhood views identify controls and service points, including engine-specific coolant-heater locations.

The SRS section calls for qualified technicians and warns that deployment remains possible for up to 10 minutes after ignition shutoff and battery disconnection. Yellow connectors may belong to the air bag system; damaged air bag covers may require module or instrument-panel replacement.

Incorrect or uneven wheel-nut tightening can loosen a wheel and cause brake pulsation or rotor damage.

A Preview of Fluid Capacities and Spark-Plug Data

The quick-reference chart lists 4.0 quarts (3.8 L) for an engine-oil and filter change. The five-speed manual transaxle’s complete drain-and-refill capacity is approximately 2.0 quarts (1.9 L).

The normal-maintenance parts chart pairs AC Type 41-948 spark plugs with the 2.2L engine and AC Type 41-942 with the 2.4L engine. Both entries specify a 0.050-inch (1.27 mm) gap.
