Yamaha FZ750/FZ700 1985–1993 Service Manual (P/N LIT-11616-FZ-75)
273 Pages • ZIP Download: 1 Printable PDF (English)
Yamaha Models Covered & Key Technical Specifications
Models: FZ700, FZ750
Sub-models / Variants: FZ700T, FZ700TC, FZ750N (model code: 1AE), FZ750S, FZ750U
Trade Names: FZ Series
Model Years: 1985–1993 (1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993)
Serial Numbers: FZ750N vehicle starting number: JYA1AE00*FA000101; FZ750N engine starting number: 1AE-000101
-
Engine: Liquid-cooled 20-valve DOHC in-line four-cylinder (FZ750N; the technical specifications below apply to this model)
-
Displacement: 749 cc
-
Compression pressure (Standard, at sea level): 1,079 kPa (11 kg/cm², 156 psi)
-
Valve clearance (Intake, cold): 0.11–0.20 mm (0.0043–0.0079 in)
-
Valve clearance (Exhaust, cold): 0.21–0.30 mm (0.0083–0.0118 in)
-
Engine oil capacity (without filter change): 2.70 liters (2.35 Imp qt, 2.85 US qt)
-
Coolant system capacity (excluding reservoir): 2.3 liters (2.0 Imp qt, 2.4 US qt)
-
Spark plug gap: 0.8–0.9 mm (0.031–0.035 in)
-
Front fork oil capacity (per fork): 408 cm³ (14.4 Imp oz, 13.8 US oz)
-
Max front fork air pressure: 39 kPa (0.4 kg/cm², 5.7 psi)
-
Transmission: Constant mesh, 6-speed
Yamaha Manual Features & Selected Content Preview

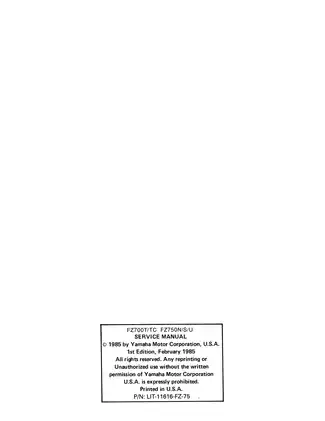

Yamaha Motor Corporation, U.S.A. Service Manual P/N LIT-11616-FZ-75, first edition, February 1985, identifies FZ700T/TC and FZ750N/S/U on its cover. The specification appendix and main circuit diagram are labeled FZ750N; an additional FZ700T/700TC wiring diagram appears at the end. This is a single factory publication, not a collection of annual supplements.
PDF Bookmarks and Wiring Diagram Detail
Text search and diagram navigation: PDF text search is unavailable. Embedded bookmarks cover the chapters and major subsections, although “Back to Index” points to a separate file that is not included. Small wiring labels require zooming in densely labeled areas.
The ZIP contains one printable English PDF with 273 pages, including five cover/front-matter pages, four otherwise blank pages, and one additional FZ700T/700TC wiring-diagram sheet.
Engine Overhaul, Hydraulic Service, and Electrical Fault Tracing
The following selected contents outline the main workshop coverage rather than reproduce the full contents list. Other topics include fuel-cock inspection and headlight adjustment.
-
Engine overhaul: Step-by-step procedures for engine removal and remounting, cylinder-head and camshaft-case disassembly, internal inspection, and engine assembly.
-
Clutch and transmission: Wet multi-disc hydraulic clutch service, primary-drive inspection, transmission disassembly, gear inspection, and shift-mechanism checks.
-
Carburetion: Mikuni BDS34 carburetor removal, separation, cleaning, component inspection, fuel-level adjustment, and synchronization.
-
Cooling system: Coolant draining and filling, radiator-cap and leak testing, thermostat inspection, and water-pump bearing and mechanical-seal replacement.
-
Brakes and hydraulic clutch: Wheel removal, wheel-bearing replacement, balancing, brake inspection, caliper and master-cylinder repair, and hydraulic bleeding.
-
Suspension and final drive: Front-fork overhaul, steering-head service, rear shock and linkage inspection, swingarm service, and O-ring drive-chain maintenance.
-
Electrical diagnosis: Fault-isolation charts and component tests for starting, charging, TCI ignition, lighting, signals, cooling-fan operation, and fuel-pump control.

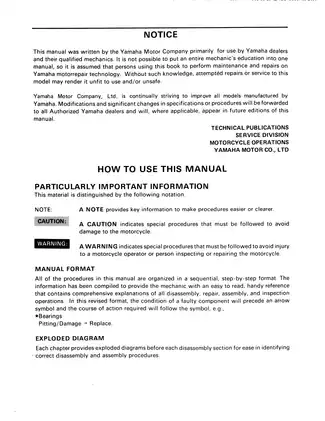

Written primarily for Yamaha dealers and qualified mechanics, this manual assumes familiarity with Yamaha repair technology and established workshop practice.
Internal Engine and Transmission Repair
Cylinder head and rotating assembly: Coverage extends to valve lifters and adjusting pads, valve-guide replacement, valve-seat cutting and lapping, cam-chain timing, piston and cylinder inspection, and crankshaft and connecting-rod bearing selection. Oil-pump inspection and starter-drive repair are also included.
Clutch and gearbox: Internal service reaches the clutch boss, friction and clutch plates, push rods, main and drive axles, gear dogs, shift cam, shift forks, bearings, and shaft-runout checks.

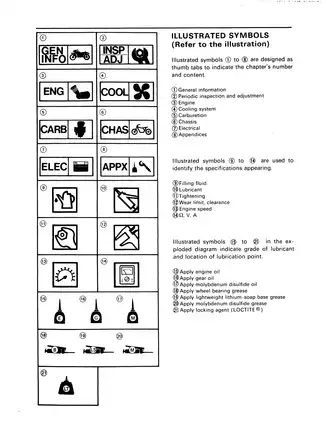

Exploded assembly views, lubrication symbols, tightening sequences, and inspection criteria connect disassembly with reassembly and replacement decisions. Bearing selection combines journal markings, color codes, and Plastigage checks so replacement bearings can be matched to the measured assembly.
Factory tool references include Universal Clutch Holder YM-91042, Valve Spring Compressor YM-04019 with YM-04108 attachment, and Cam Chain Cutter YM-01112.
The timing and assembly sections warn that uneven cam-cap tightening can damage the head, caps, and camshafts, while excessive camshaft rotation can damage pistons and valves.
Carburetor Adjustment and Routine Maintenance
The carburetor section distinguishes vacuum-piston and diaphragm inspection from jet, float, needle-valve, and starter-plunger work. Synchronization uses Vacuum Gauge YU-08030, with the required valve-clearance preparation explained in the maintenance chapter.
Periodic inspection coverage includes adjusting-pad selection, compression testing, ignition-timing checks, engine-oil service, brake adjustment, suspension setup, and steering-head inspection. Separate maintenance charts organize emission-control work and general lubrication.
Hydraulic Repair and Suspension Limits
Hydraulic clutch coverage includes the master cylinder, release cylinder, piston seals, inspection criteria, reassembly, and air bleeding. Brake sections address pad and disc condition, caliper pistons, master-cylinder components, and front/rear bleeding.
Front-fork procedures identify Fork Damper Rod Holder YM-01397 and T-handle YM-01326. The fork cautions explain how bottoming the inner tube during bushing removal can damage the oil-lock piece and how trapped air can eject the oil seal.
Rear suspension coverage includes the remote preload/damping adjuster, adjusting chain, relay arm, connecting rod, bearings, and seals. The nitrogen-charged shock is treated as a replacement assembly, not an internally rebuildable unit.
The manual requires secure support during engine, wheel, fork, and shock work. Its safety notes address releasing fork pressure before disassembly, avoiding heat or opening of the charged shock, and cleaning, refilling, and bleeding hydraulic circuits after connections are opened.
Circuit Diagrams and Component Testing
Named references include the FZ750N Circuit Diagram, FZ700T/700TC Wiring Diagram, Starting Circuit Operation diagram, Fuel Pump Circuit Operation diagram, Lubrication Diagram, and six Cable Routing views.
Troubleshooting charts address no-crank, no-charge, weak or absent spark, lighting and indicator failures, temperature-gauge faults, and an inoperative cooling fan. Component checks extend to the starter safety unit, sidestand relay and switch, fuel sender, fuel-pump controller, reserve switch, and associated wiring.
The charts connect symptoms with circuit measurements and component checks, helping distinguish power-supply, connection, relay, and component faults before replacement decisions are made. The appendix adds component-specific torque tables, clearances, wear limits, fluid specifications, carburetor settings, and electrical resistance and output data.
Selected Cooling-Test and Carburetor Settings
For the FZ750N cooling system, the thermostat inspection specifies an opening range of 80.5–83.5°C. The radiator-cap test specifies an opening pressure of 74–103 kPa.
The FZ750N Mikuni BDS34 fuel-level check specifies 8.3 ± 1.0 mm below the float-chamber line, with the reading taken after warming and stopping the engine.
