Husqvarna TE/TC/SM 2005 Service & Repair Manual (P/N 8000 A4443)

605 Pages • 1 Printable PDF (EN, IT, FR, DE, ES) • Download

4.5starstarstarstarstar_half(4)
$18.40 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Husqvarna Models Covered & Key Technical Specifications

Models: TE 250, TE 450, TE 510, TC 250, TC 450, TC 510, SM 400 R, SM 450 R, SM 510 R

Sub-models / Variants: TE-USA/CDN, TE-USA/CDN Enduro

Model Year: 2005

Serial Numbers: Valid from VIN: TE 250: ZCGH800AC5V006000, TE 450: ZCGH802BC5V006000, TE 510: ZCGH803CA5V006000, TC 250: ZCGH800AA5V052000, TC 450: ZCGH802BA5V052000, TC 510: ZCGH803CD5V052000, SM 400 R: ZCGH801AD5V006000, SM 450 R: ZCGH802BD5V006000, SM 510 R: ZCGH803CC5V006000, TE 250 USA/CDN: ZCGTE250#5V006000, TE 450 USA/CDN: ZCGTE450#5V006000, TE 510 USA/CDN: ZCGTE510#5V006000, TC 250 USA/CDN: ZCGTC250#5V052000, TC 450 USA/CDN: ZCGTC450#5V052000, TC 510 USA/CDN: ZCGTC510#5V006000, SM 450 R USA/CDN: ZCGSM450#5V006000, SM 510 R USA/CDN: ZCGSM510#5V006000


  • Engine: 4-stroke, single cylinder

  • Transmission: 5-speed constant-mesh (TC); 6-speed constant-mesh (TE, SMR)

  • Compression ratio: 12.5:1 (250 and 510 models), 12:1 (400 and 450 models)

  • Bore (250/400/450-510): 76 mm / 91.5 mm / 97 mm

  • Stroke (250/400-450/510): 55 mm / 60.76 mm / 67.8 mm

  • Valve angle (Inlet/Exhaust): 12° / 13°

  • Carburetor: Keihin FCR-MX 37 (250), Mikuni TMR 38 (SM 400 R), Keihin FCR-MX 41 (450-510)

  • Spark plug: NGK CR8EB

  • Spark plug gap: 0.7 mm

Husqvarna Manual Features & Selected Content Preview

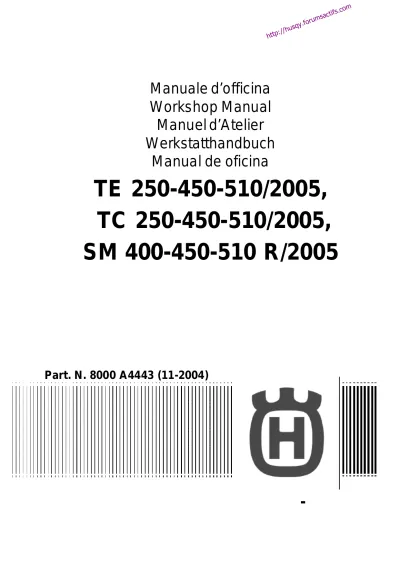

This Husqvarna workshop manual, P/N 8000 A4443, is the November 2004 first edition published by MV Agusta Motorcycles. It covers the 2005 TE 250/450/510, TC 250/450/510, and SM 400 R/450 R/510 R, with the supermoto models identified throughout the procedures as SMR.

Text Search, Chapter Bookmarks and Wiring Detail

Search and diagram access: The main text supports PDF search, and 19 embedded bookmarks open the main sections. Wiring-diagram labels and some illustration content are not searchable. Small wire-color codes and component labels in the two wiring diagrams require zooming.

One printable 605-page PDF contains Italian, English, French, German, and Spanish content. The total includes the two opening cover and copyright pages, chapter dividers, and USA/CDN/Australia notes.


Engine Rebuilds, Chassis Service and Fault Diagnosis

These selected workshop topics outline part of the coverage. Further sections address muffler-packing replacement and handlebar-position adjustment.

  • Engine repair: Step-by-step procedures for engine removal, crankcase splitting, crankshaft and counterbalancer work, DOHC cylinder-head service, piston/cylinder inspection, and timing-system installation.

  • Transmission and lubrication: Separate TC and TE/SMR gearbox reassembly, selector-fork and drum inspection, clutch repair, and dry-sump oil-pump service.

  • Carburetion and cooling: Keihin and Mikuni carburetor overhaul and setting data, accelerator-pump and TPS information, dual-radiator inspection, and coolant replacement.

  • Hydraulic clutch and brakes: Clutch master-cylinder overhaul, fluid replacement, clutch and front/rear brake bleeding, and brake-pad and disc wear checks.

  • Suspension and chassis: Marzocchi USD fork and Sachs rear-shock overhaul, swingarm/linkage and wheel-bearing service, steering adjustment, and chain/sprocket inspection.

  • Electrical diagnosis: Model-specific wiring diagrams, charging/starter/CDI tests, electrical-component locations, harness-routing views, and fault isolation.

  • Workshop references: Maintenance schedules, troubleshooting charts, torque tables, wear limits, fluid specifications, optional-kit information, and factory special-tool references.

Husqvarna prepared this publication for its workshops and authorized personnel; engine teardown, electrical testing, and pressurized-suspension work assume shop-level experience, precision measuring equipment, and the specified service tools.

VIN Coverage and Regional Equipment

The validity tables distinguish general-market machines from USA/CDN versions, while TE-USA/CDN and TE-USA/CDN Enduro configurations are shown separately. Matching the market and equipment to the appropriate wiring diagram helps avoid applying the road-equipped TE/SMR circuit to a different electrical configuration.

The main chapters treat TE and TC as competition motorcycles and give SMR separate road-use and competition maintenance schedules. Chapter Z adds USA/CDN/Australia noise-control notices, a U.S. off-highway statement, and TE/SMR-USA/CDN spark-arrester maintenance.

Carburetors, Starting Systems and Internal Engine Work

Fuel-system variants: The manual distinguishes the Keihin FCR-MX 37 used on the 250, the Mikuni TMR 38 on SM 400 R, and the Keihin FCR-MX 41 on the 450/510 models. These carburetors are documented with accelerator pumps and throttle-position sensors.

Engine rebuild detail: Valve-seat recutting, valve-guide replacement, cam-chain and tensioner work, piston-ring and connecting-rod inspection, and a cylinder-head-gasket selection chart extend the coverage into internal engine rebuilding.

Starting-system coverage distinguishes TE electric-and-kick starting from TC/SMR electric starting and the related optional kick-start equipment.

Suspension Service and Electrical Test Coverage

The fork chapter explains compression and rebound oil flow and includes fork-specific troubleshooting, oil-seal replacement, and damping-unit service. Sachs shock procedures extend to the reservoir, piston/rod assembly, seals, and air/oil diaphragm. Brake illustrations distinguish TE/TC and SMR hardware.

Diagrams and views: Illustrations include the TE/SMR wiring diagram and the TC/USA-CDN TE/SMR wiring diagram, supported by electrical-component location views. Generator and starter-motor test diagrams, frame harness-routing views, and the cooling-circuit layout provide further system references.

Electrical checks: Battery-leakage and regulated-output checks sit alongside stator and ignition-coil resistance tests, regulator/rectifier checks, and starter-relay/motor diagnosis. Gear-position sensor and TPS testing, connector/fuse checks, and lighting fault isolation are also covered.

Factory tool callouts include crankcase puller 1517 94702, flywheel extractor 8000 A1559, ignition checker 8000 A1512, and clutch-hub wrench 8000 79015. Fork tools 8000 91288 and 8000 91289 are also identified.

Equipment Kits, Repair Cautions and Supporting Publications

The kit chapter covers guards, carburetor kits, passenger footrests, turn signals, and a racing harness. TC race-start-hook and optional kick-starter installation are documented with model and regional restrictions.

Component damage warnings: The engine-removal notes warn that starting with the condenser removed after battery disconnection can damage the voltage regulator. The Sachs section warns that substituting nonstandard compression-shim blades can cause the shock absorber to rupture in use.

Pressurized suspension, brake, and engine work should be performed with the specified support and service tools and the factory safety notes.

The PDF includes an optional-parts list, not the separate illustrated spare-parts catalog identified as P/N 8000 A4444. Husqvarna also directs workshops to applicable Service Bulletins for newer adjustment data or repair methods.

A Preview of Valve-Clearance and Ignition Test Data

The valve-adjustment section specifies cold-engine clearances of 0.10–0.15 mm for intake valves and 0.15–0.20 mm for exhaust valves, alongside the shim-selection calculation.

The ignition-coil test section specifies secondary-winding resistance of 5.0–7.5 kΩ at 20°C with the spark-plug cap cable excluded. The cap-inclusive measurement has its own specification, distinguishing the two test configurations.
