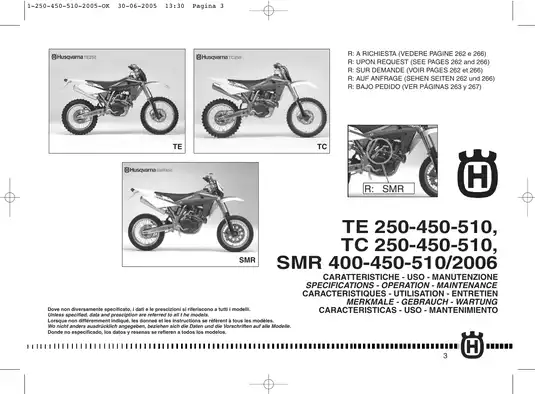

2006 Husqvarna TE 250/450/510, TC 250/450/510, SMR 400/450/510 Owner's Manual (P/N 8000 A5910)

This 2006 Husqvarna Owner’s Manual covers the TE 250/450/510, TC 250/450/510, and SMR 400/450/510. Published by MV Agusta Motorcycles S.p.A. as P/N 8000 A5910, 1st Edition 06–05, it documents operation, maintenance, adjustments, and component inspection.

• Engine maintenance: Oil and filter service, coolant replacement, air-filter care, and valve-clearance inspection and adjustment using replacement shim pads.

• Fuel and exhaust: Keihin FCR-MX and Mikuni TMR carburetor specifications, starting and idle adjustments, muffler repacking, and regional spark-arrester maintenance instructions.

• Brakes and clutch: Brake-pad replacement, disc inspection, front and rear brake bleeding, hydraulic clutch bleeding, and control-lever adjustments.

• Suspension and wheels: Fork compression and rebound settings, shock preload and SAG adjustment, steering-bearing play, chain adjustment, wheel removal, and spoke checks.

• Electrical systems: TE/SMR, TC 250, and TC 450/510 wiring diagrams, component locations, battery charging, lighting service, and digital-instrument functions.

• Inspection references: Engine and clutch service limits, component-specific tightening torques, special-tool identification, and separate maintenance schedules for road and competition configurations.

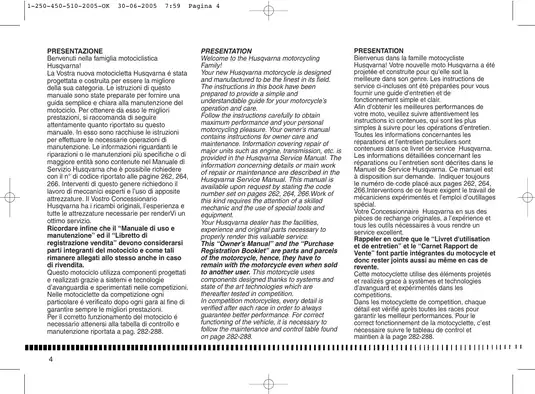

Written for owners handling operation and routine care, the manual assigns major repair work to skilled mechanics using special tools and equipment.

Engine Maintenance and Internal Inspection Limits

The technical tables document bore and stroke dimensions, the double-overhead-camshaft, four-valve configuration, primary gear ratios, transmission sprocket data, and secondary-drive combinations. Lubrication instructions cover the filter cartridge and mesh filters in the dry-sump system; cooling-system instructions cover coolant replacement and hose inspection.

The air-filter section explains how incorrect element seating can admit dust and accelerate piston-ring and cylinder wear.

Internal inspection: The Service Limit section includes cylinder-piston fitting drawings, piston-ring clearance checks, connecting-rod radial play, and camshaft and valve inspections. Clutch plate thickness, distortion, and spring limits are also covered.

Detailed engine and transmission disassembly and reassembly belong to the separately listed Workshop Manual, P/N 8000 A5911, which is not included. The special-tool list identifies equipment such as the flywheel extractor, 8000 A1559, and clutch hub retaining wrench, 8000 79015.

Carburetor Setup and Exhaust Care

Carburetor tables distinguish main, low-speed, and starting jets, metering needles, and needle positions. Separate SMR 400 starting and idle-adjustment instructions help you select the procedure for the Mikuni system rather than apply the Keihin procedure to it.

The exhaust section describes muffler packing replacement. The USA/CDN notes cover TE/SMR spark-arrester inspection and cleanout.

Brake, Clutch, and Suspension Adjustments

Brake-system differences: Separate front-brake bleeding procedures distinguish TE/TC equipment from the SMR system with its separate reservoir and upper bleed point. Brake-component layouts and bleeding illustrations accompany pad, disc, and hydraulic-system maintenance.

The hydraulic clutch has its own fluid requirements and bleeding procedure. Brake and clutch fluids are identified separately in the lubrication and supplies table.

Suspension setup: Fork-adjuster views accompany compression, rebound, air-release, and oil-level information. Rear-shock instructions distinguish spring preload, low- and high-speed compression damping, rebound, and SAG measurements, with setup guidance for hard, sandy, and muddy ground. Major service of the nitrogen-charged shock absorber is assigned to the dealer.

Chain and wheels: Chain-care instructions distinguish sealed and unsealed chains and warn that unsuitable cleaning solvents can damage O-rings. Wheel instructions include front-wheel reassembly and fork alignment, wheel and axle checks, and spoke-tension inspection.

Wiring Diagrams and Maintenance Schedules

The TE/SMR wiring diagram and separate TC 250 and TC 450/510 diagrams have component keys and wire-color references. Optional electric-start equipment is identified in the TC diagrams. Electrical component-location views cover the ignition and starting equipment.

TE/SMR digital-instrument instructions explain the display functions and warning lights. Battery sections include charging guidance and a charge-status table; lighting instructions cover bulb replacement and headlamp adjustment.

Maintenance charts distinguish competition use from limited-power road configurations, including motocross and enduro schedules. USA/CDN and Australian notes provide regional information.

Follow the manual’s precautions on exhaust ventilation and kick-starter kickback, including its protective riding-boot guidance.

Selected Spark Plug and Hydraulic Fluid Specifications

These examples provide a small sample of the maintenance specifications in the manual.

The NGK CR8EB spark plug is listed with a 0.7 mm (0.027 in.) electrode gap.

The fluid table specifies DOT 4 brake fluid for the braking systems and SAE 10 mineral oil for the hydraulic clutch. The clutch instructions expressly warn against using brake fluid in that circuit.

Multilingual PDF, Text Search, and Diagram Detail

Search and wiring detail: Text search works across many sections, while some instruction pages and diagram labels are not searchable. There are no embedded PDF bookmarks. Small wiring labels require zooming; some TE/SMR connector markings remain blurred. PDF page 230 is blank within the service-limit section.

Download one printable 322-page PDF containing English, Italian, French, German, and Spanish text. The total includes 22 lettered insert pages, one original cover page, one publication page, one blank page, and one final memorandum page.
