1998–2000 Husqvarna TE 410 e, TE 610 e, TE 610 e-LT, SM 610 S Repair Manual (P/N 8000 92316)

This January 2000 Husqvarna workshop manual, P/N 8000 92316, covers the 1998–2000 TE 410e, TE 610e, TE 610e-LT, and SM 610s, with model-specific service data and repair procedures.

The 429-page PDF is a multilingual scan. Its technical pages are image-based and do not support text search.

• Engine repair: Engine removal, cylinder-head disassembly, crankshaft inspection, crankcase separation, valve timing, and reassembly of the wet clutch and transmission.

• Fuel system: Dell'Orto carburetor overhaul, float-height inspection, accelerator-pump delivery checks, and model-specific jetting tables.

• Electrical diagnosis: KOKUSAN ignition checks, alternator and regulator tests, charging-system diagnosis, and wiring diagrams with component keys and wire-color codes.

• Suspension and brakes: Fork and rear-shock service, wheel inspections, brake-pad replacement, and model-specific hydraulic bleeding procedures.

• Cooling and lubrication: Water-pump disassembly and assembly, radiator inspection, coolant replacement, and diagrams of the cooling and dual-pump lubrication circuits.

• Workshop reference: Scheduled maintenance, troubleshooting charts, wear limits, valve-clearance data, torque tables, fluid capacities, and illustrated special-tool references.

The manual was written for authorized Husqvarna workshop personnel, with repair information that builds on practical experience and factory training.

Engine, Clutch, and Transmission Repair

The engine chapters extend to valve-seat and guide replacement, rocker-arm bushings and rollers, piston-to-cylinder matching, and connecting-rod inspection. Crankshaft alignment, selector-fork wear, and transmission-shaft assembly illustrations support internal repair work.

Cylinder inspection distinguishes matching piston categories and explains the restriction on reboring the treated cylinder bore. The valve-removal section also identifies a specific damage risk: a misaligned spring compressor can bend a valve stem.

Illustrated tool references include crankcase puller 800089743 and clutch-hub retaining wrench 800039524. Engine and chassis torque tables are grouped in a separate reference section.

Dell'Orto Carburetor Service

The setting tables distinguish PHM 40 MS and PHM 40 MS1 carburetors for the 610 models from PHF 36 DS and PHF 36 DS1 units for the 410. Needle, jet, and float specifications sit alongside an exploded carburetor view.

These separate settings help match the carburetor configuration to the correct factory data before investigating poor running. The procedures also cover idle adjustment and exhaust CO measurement.

KOKUSAN Ignition and Charging Diagnosis

Separate 1998–1999 and 2000 wiring diagrams show the circuit changes, including the clutch switch and vehicle-safety circuit on the later diagram. This distinction helps select the correct circuit when tracing a starting fault.

The electrical section provides ignition-coil resistance, alternator insulation, voltage-regulator, and on-vehicle charging tests. It specifically warns that disconnecting the battery while the engine is running can permanently damage the regulator.

Forks, Rear Shock, and Brake Service

The chassis data identify MARZOCCHI forks and a SACHS rear shock. Detailed internal fork and shock overhaul sections are labeled for the 410 and 1998–1999 610. The 2000 610 coverage documents fork compression/rebound and rear-shock rebound adjustment.

Brake instructions distinguish the floating front calipers on the TE 410e and TE 610e from the fixed calipers on the TE 610e-LT and SM 610s. The front-brake bleeding procedure changes with that configuration.

Cooling and Oil Circuits

Cooling diagrams show the thermostat, twin radiators, electric fan, and expansion tank. The lubrication diagram traces the delivery and scavenge pumps, cartridge filter, and screen filters, showing how oil moves between the engine compartments.

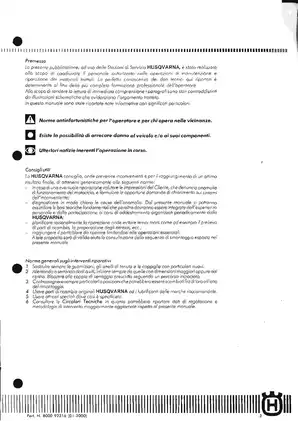

Working on motorcycle electrical and fuel systems carries inherent risks. Always reference the factory safety protocols outlined in these pages before beginning any major diagnostic work to prevent component damage or personal injury.

File Format and Readability

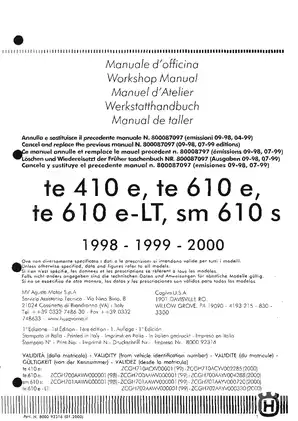

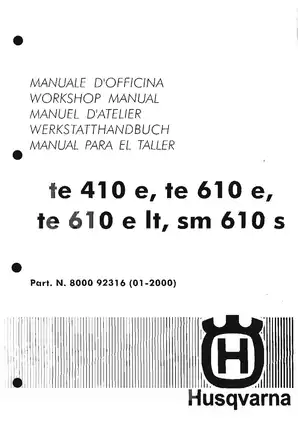

The total includes two cover/title pages, 17 chapter dividers, and 11 blank or footer-only pages. English, Italian, French, German, and Spanish share the same file; the page count covers all five languages.

There are 17 PDF bookmarks with German chapter labels, plus the printed contents and index. Small wire-color codes and connector details on both wiring sheets require magnification; line contrast varies in places.
