Husqvarna TE 410 E, TE 610 E/E-LT & SM 610 S 2000 Workshop & Parts Manual Set (P/N 8000 92316)

The parts catalog supports component identification and ordering; the workshop manual supplies the repair procedures, diagnostic checks, and assembly specifications needed for the corresponding work. Earlier-model procedures and 2000 updates are identified separately.

PDF Search, Bookmarks, and Diagram Detail

Finding text and reading wiring: The parts catalog has searchable text but no embedded PDF bookmarks. The workshop manual has no usable text search within its technical content; 17 embedded bookmarks, labeled in German, open its main sections. Small component numbers and wire-color codes in the workshop wiring diagrams require zooming.

The ZIP download contains two printable PDFs totaling 580 pages, with English text alongside Italian, French, German, and Spanish. Totals include the catalog’s cover and blank page, plus the workshop manual’s opening covers, preliminary material, section dividers, and 11 blank or header/footer-only pages.

Engine Repair, Chassis Service, and Parts Identification

These selected coverage highlights summarize the main workshop areas. Further topics include headlamp aiming and TE 610 E-LT rear-box operation.

• Engine overhaul: Step-by-step procedures for engine removal, crankcase separation, cylinder-head and crankshaft inspection, valve work, timing, and reassembly.

• Clutch and transmission: Clutch-pack inspection and adjustment, gearbox disassembly, selector checks, and shaft reassembly with component positioning diagrams.

• Maintenance and fuel system: Service schedules, valve-clearance adjustment, compression testing, carburetor inspection, accelerator-pump checks, and throttle and starter-cable adjustment.

• Suspension, wheels, and brakes: Fork removal and oil-level adjustment, rear-shock service, wheel inspection, brake-pad replacement, and hydraulic brake bleeding.

• Cooling and lubrication: Radiator and water-pump work, coolant replacement, oil-filter service, and diagrams explaining coolant flow and the dual-pump lubrication circuit.

• Electrical diagnosis: Separate earlier-model and 2000 wiring diagrams, ignition-coil resistance checks, alternator and regulator tests, and starter-system troubleshooting.

The workshop manual was written for Husqvarna workshop personnel and assumes technical knowledge, practical repair experience, and access to the specified tools and measuring equipment.

Exploded Assemblies and Model-Specific Parts

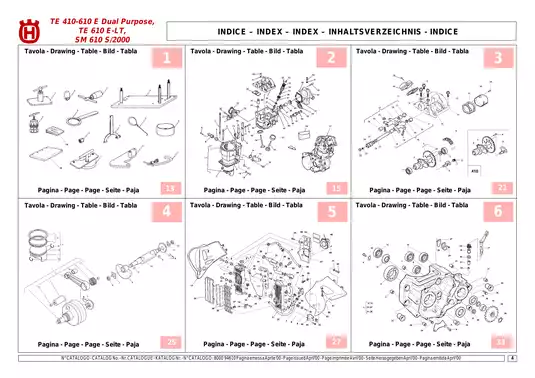

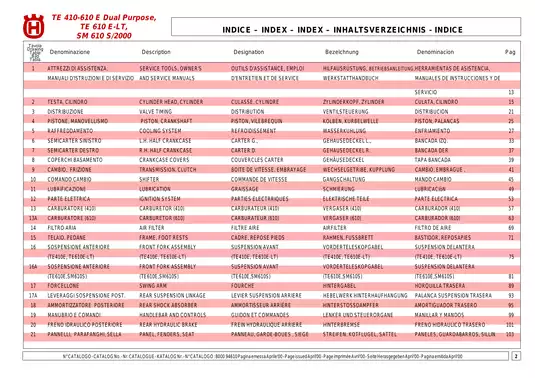

The catalog contains 38 indexed drawing sections, numbered through 30 with lettered variants. Representative titles include Cylinder Head/Cylinder, Transmission/Clutch, Carburetor 410, Carburetor 610, Rear Suspension Linkage, and Front Hydraulic Brake.

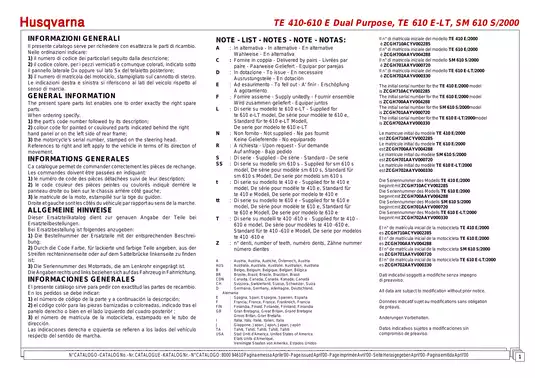

Part codes, quantities, descriptions, and applicability notes accompany the drawings in five languages. Model markers distinguish standard equipment, while country and option notes identify hardware differences that matter when ordering similar-looking components.

Cooling, lubrication, ignition, suspension, wheels, bodywork, fuel tanks, exhaust components, and Main Wiring Harness/Electrical Parts are also illustrated. The serial entries identify starting vehicles, rather than complete production ranges.

Engine Inspection, Reassembly, and Special Tools

The overhaul sections provide cylinder and piston measurements, valve-seat and guide work, camshaft and rocker-arm inspection, crankshaft alignment checks, and transmission wear limits. Cylinder liners and pistons are matched by category; the manual specifically excludes reboring the treated cylinder liner.

The maintenance chart calls for checking and cleaning the connecting-rod pin whenever the engine is opened. Troubleshooting tables connect symptoms such as hard starting, clutch slip, gear disengagement, and overheating with possible causes and remedies.

Reassembly instructions specify renewal of deformable sealing washers, oil retainers, gaskets, and self-locking nuts. Factory tool references include crankcase puller 8000 89743, flywheel extractor 8000 39523, clutch-hub retaining wrench 8000 39524, valve assembly/removal tool 8000 39521, and ignition-control/TDC tool 8000 90875.

Carburetor and Starting-System Differences

The 610 applications distinguish Dell’Orto PHM 40 MS carburetors for 1998–1999 from PHM 40 MS1 for 2000. The 410 changes from PHF 36 DS for 1999 to PHF 36 DS1 for 2000.

Catalog jetting includes a 158 main jet for the 410 and a 180 main jet for the 610, with 185 specified for USA 610 applications. The centrifugal starting decompressor is inspected for malfunction; it does not require adjustment.

Suspension Applicability and Brake Service

The fork and rear-shock overhaul subsections are specifically labeled for 410 and 610/1998–1999 applications. Separate settings describe the adjustable 2000 610 suspension; these should not be treated as blanket overhaul instructions for every suspension version.

Steering-bearing play, shock spring preload, rebound damping, and secondary-drive-chain adjustment are covered. During shock reassembly, the manual cautions against damaging the rod’s sliding surface, where scoring can affect sealing.

Brake coverage distinguishes front-caliper configurations and their bleeding procedures. Brake, suspension, engine, and electrical work can directly affect safe vehicle operation, so the specified workshop precautions, torque values, and inspection limits should be followed before returning the motorcycle to use.

Ignition and Charging Fault Checks

The wiring diagrams identify the starter motor and relay, alternator, voltage regulator, electronic unit, cooling fan, switches, lights, and fuse circuits. Their component keys support tracing a circuit before comparing measurements with the electrical test specifications.

The regulator section warns that disconnecting the battery while the engine is running can irreparably damage the regulator.

Selected Bearing, Ignition, and Fastener Data

Parts dimensions: The catalog lists a crankshaft main bearing measuring ø45 × ø85 × 19 mm and 610 intake/exhaust valve-seat inserts in +0.03 mm and +0.06 mm oversizes. These are component-identification details.

Electrical specifications: The workshop manual identifies a 240 W generator. At 20°C, ignition-coil resistance is 0.30 Ω ±15% for the primary winding and 6 kΩ ±20% for the secondary winding, or 11 kΩ ±20% with the spark-plug cap.

Fastener references: Torque tables list 23.5–26.5 Nm for the M8 cylinder-head nuts and 122.5–136.3 Nm for the flywheel nut. Chassis entries include 24.5–26.5 Nm for front brake-caliper screws and 137–147 Nm for the rear wheel axle.
