2006 Husqvarna SM 610 / TE 610 Workshop Manual
Single-cylinder 4-stroke engine, dual suspension systems, hydraulic brakes — complete factory documentation PN 8000 A4640
Manual Preview

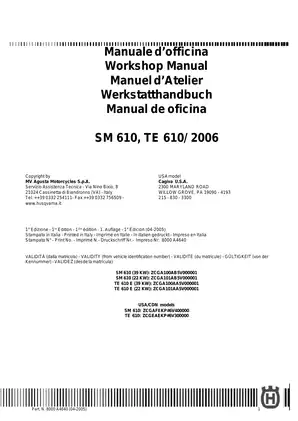

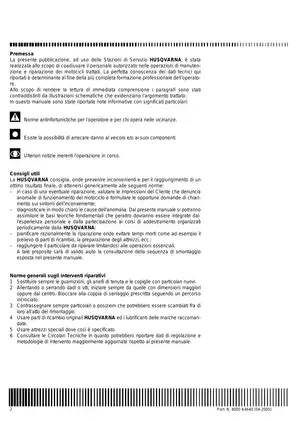

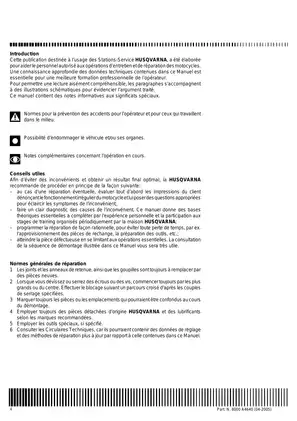

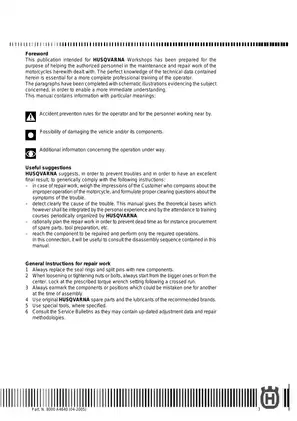

Sample pages from the 2006 Husqvarna SM 610 / TE 610 Workshop Manual manual
Purchase & Download
Models Covered & Key Technical Specifications
Husqvarna SM 610 & TE 610 — 2006 Precision Engineering Vault | SM/TE Series Repository.
- Calibrated Engine Displacement: 576.28 cm³ (35.15 cu in) is specified as the single-cylinder volume Architecture.
- Measured Compression Ratio: 11.1:1 — represents the established combustion chamber pressure Framework.
- Primary Power Output: 39 kW (SM model) delivers peak horsepower at rated engine speed Specifications.
- Advanced Fuel Capacity: Tank volume reaches 12 liters (3.17 US gallons) for standard operation Limits.
- Baseline Spark Plug Setting: Gap is set to 0.55–0.65 mm (0.022–0.026 in) for optimal ignition Parameters.
- Key Oil Specification: AGIP RACING 4T SAE 10W60 indicates the required lubricant grade for engine protection Standards.
Professional Workshop Service Manual & Technical Specifications
Advanced Reference Manual: Husqvarna SM 610 & TE 610 Motorcycle (2006)
Product-Line: SM 610, TE 610 2006 models // Design-Core: Engine, Transmission, Suspension logic // Diagnostic-Area: Service procedures and technical specifications.
| Specification | Parameters | Logic |
|---|---|---|
| Engine Systems | 576 cc single-cylinder 4-stroke, SOHC 4-valve | Complete technical data provided |
| Transmission | 6-speed constant-mesh gearbox with multi-plate clutch | Gear ratios and drive specifications documented |
| Suspension & Steering | Hydraulic fork (250-300mm travel), SACHS rear monoshock (290-320mm) | Adjustment procedures and calibration ranges included |
| Brake Systems | Front/rear hydraulic disc, independent circuits | Component specifications and torque values referenced |
| Electrical & Ignition | CDI ignition, 12V-700W starter, digital spark advance | System component inventory with specifications |
Content Summary
Systematizing the service groups into engine mechanics, drivetrain assemblies, suspension systems, and brake circuits, this manual encompasses lubrication procedures, cooling system logic, and frame alignment specifications. The document establishes engine disassembly sequences, establishes transmission adjustment frameworks, and establishes front/rear brake calibration methods. Reference materials addressing steering geometry, electrical component identification, and wheel service are also presented.
Technical Documentation
OEM specifications cover engine compression (minimum 8 bar), valve clearance data (0.05mm both intake/exhaust at cold), and ignition system parameters. Factory specifications are documented for the primary drive ratio (2.343), secondary transmission ratios (ranging 0.769–2.615 across gears), and final chain reduction (3.0). Engine rebuild procedures are documented for crankshaft main bearing service, connecting rod reconditioning, piston assembly sequence, and camshaft installation. Drivetrain specifications are addressed in clutch engagement adjustment (3-5mm lever free play), transmission fork positioning, and primary/secondary belt/chain tension protocols. Reassembly procedures are specified for cylinder head torque sequencing (25 Nm base fasteners, 37 Nm primary drive nuts), oil circuit flushing, and gasket replacement scheduling.
Service intervals are documented for initial 1000 km/6-month intervals through 20000+ km schedules, with cooling system fluid replacement, brake system bleeding, and suspension oil change procedures marked at specific mileage intervals. The manual documents torque specifications for the engine assembly to ensure proper cyclic stress resistance.
Suspension & Brake Component Data
Front fork specifications include MARZOCCHI inverted design with 45mm diameter shafts, hydraulic compression/extension adjustment (standard -12 clicks), and fork oil type reference (AGIP FORK 7.5). Rear suspension data documents SACHS mono-shock preload adjustment, spring length specifications (234.5–237.5mm), and dual hydraulic brake settings (TE 610 -20 clicks, SM 610 -26 clicks extension). Brake system documentation provides caliper type identification (floating/fixed configurations), pad area measurements (29.5–39.6 cm²), and fluid type requirements (DOT 4 specification). Wheel bearing inspection procedures, spoke tension verification methods, and rim warp tolerance tables (±2mm maximum) complete chassis service guidance.
The document provides comprehensive torque wrench settings organized by thread diameter and material type (M4–M14 fasteners on steel, brass, plastic, and aluminum components with values ranging 1.9–145 Nm). Diagnostic troubleshooting matrices address engine starting issues, compression faults, carburetor flooding, friction loss conditions, steering bearing play, suspension harshness, and electrical charging anomalies with corresponding remedy procedures.
