2007 Husqvarna SM 610 / TE 610 I.E. Service Manual (P/N 8000 A7918)

This Husqvarna workshop manual covers the 2007 fuel-injected SM 610 and TE 610 I.E., with the TE listed as TE 610 E in the model applicability table. Publication P/N 8000 A7918 is the February 2007 edition.

PDF Text Search, Diagram Detail, and Page Count

Search and diagram detail: The main text is searchable, but labels embedded in wiring-diagram images are not. There are no embedded PDF bookmarks. Small wire-color codes require zooming; some very fine ECU terminal markings in the full wiring diagrams remain indistinct when enlarged.

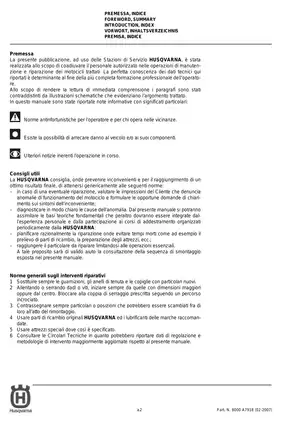

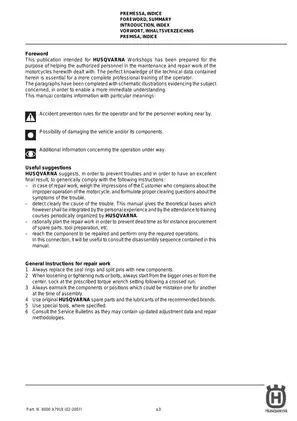

The download contains one printable 503-page PDF, with English, Italian, French, German, and Spanish text. That total includes 10 preliminary pages and eight blank section-end pages.

Engine Overhaul, Injection Diagnosis, and Chassis Service

The following selected contents highlight the main workshop procedures. Other topics include digital-instrument setup and headlamp adjustment.

• Engine repair: Step-by-step procedures for engine removal, crankcase separation, cylinder-head service, crankshaft inspection, camshaft timing, and reassembly.

• Transmission and clutch: Gearshaft assembly, selector-fork inspection, wet-clutch disassembly, plate and spring checks, and cable-operated clutch adjustment.

• Fuel injection: Diagnosis Software Kit connection instructions, TPS adjustment references, sensor monitoring, fuel-pump checks, and relay testing.

• Electrical troubleshooting: Charging-system and ignition-coil tests, starter-motor checks, open- and short-circuit diagnosis, wiring diagrams, and harness-routing drawings.

• Suspension: Marzocchi fork overhaul, oil-seal replacement, damping adjustments, Sachs rear-shock service, and swingarm and linkage inspection.

• Brakes and wheels: Disc and pad wear checks, pad replacement, front and rear brake bleeding, wheel-bearing replacement, and rim inspection.

• Cooling and lubrication: Coolant replacement, radiator and fan checks, water-pump service, oil-pump inspection, and filter maintenance.

Written for authorized Husqvarna workshop personnel, this manual assumes practical repair experience and access to the specified measuring equipment and special tools.

Engine, Timing, and Drivetrain Repair

The disassembly sequences, inspection limits, and assembly instructions support repair planning and decisions about which components can be reused. Troubleshooting tables connect symptoms such as clutch slip, difficult shifting, engine noise, and overheating with possible causes.

Cylinder head and timing: Coverage extends to valve seats and guides, rocker-arm bushings, cam rollers, and timing-chain wear. The manual warns that a misaligned valve-spring compressor can bend a valve stem. It also identifies the treated cylinder bore as unsuitable for reboring.

Clutch and gearbox: Exploded assembly illustrations accompany clutch removal and reassembly, while inspection sections distinguish plate wear, plate distortion, spring condition, and clutch-housing clearance. Gearshaft illustrations show component order and gear engagement. The special-tool section identifies the clutch-hub holding wrench, crankcase puller, and other workshop fixtures.

Fuel-Injection Diagnosis and Electrical Testing

Diagnostic equipment: The injection section describes Diagnosis Software Kit 8000 A9634, its PC connection, and the components it can monitor. These include the M.A.Q.S. pressure, throttle-position, and air-temperature sensors, plus the SM-specific tilt sensor.

TPS work after throttle-body removal or replacement is linked to the software’s idle-adjustment and feedback-adjustment commands. The workshop manual provides connection guidance and a feedback-adjustment illustration, but refers to the kit’s separate operating manual for detailed command instructions. The diagnostic software and interface cable are separate equipment, not part of this PDF download.

Circuit testing: Charging and starter wiring diagrams, generator and starter test charts, connector illustrations, and cable-color keys support the electrical checks. The manual warns that disconnecting the battery with the engine running can damage the regulator and ECU.

Suspension, Brakes, and Fluid Systems

Fork and shock service: Fork oil-flow illustrations explain compression and rebound operation before the overhaul procedures. The fork chapter identifies seal driver R5080AC and damper-holding tool R5081AA. Rear-shock coverage includes reservoir, diaphragm, seal, and reassembly work, with separate SM and TE adjustment information.

Brakes and chassis: Model-specific front-brake details accompany the inspection and bleeding procedures. Wheel and frame sections add bearing checks, axle and rim limits, spoke checks, and frame-reference dimensions.

Cooling and lubrication: Cooling-circuit and lubrication-flow diagrams show how the radiator, pump, filters, and oil passages relate. Component-specific torque tables supplement the repair chapters. Follow the manual’s precautions for hot coolant, brake fluid, pressurized suspension components, and electrical testing.

Examples of Internal Clearances and Fluid Capacities

For piston-to-cylinder fit, the overhaul section specifies a standard clearance of 0.04–0.06 mm and a service limit of 0.12 mm.

The capacity tables list a 12.5-liter fuel tank, including a 3.6-liter reserve, and a cooling-system capacity of 1.35 liters. These references accompany the manual’s inspection and fluid-service instructions.
