1998–2004 Husqvarna TE 610, SM 610 Owner's Manual – Operation & Maintenance

Husqvarna's owner's manual for the 1998–2004 TE 610 and SM 610 covers operation, routine maintenance, and basic troubleshooting. This is the 1st Edition (04-05); selected component sections also use the TE 610E designation.

• Engine lubrication and valve gear: Engine oil and filter replacement, mesh-filter cleaning, valve-clearance adjustment, and spark-plug inspection.

• Fuel and intake: Keihin FCR-MX 41 carburetor specifications, idle adjustment, fuel-filter servicing, foam air-filter maintenance, and throttle-cable adjustment.

• Cooling system: Twin-radiator coolant level checks and replacement, expansion-tank references, and electric cooling-fan precautions.

• Chassis and suspension: Drive-chain tensioning, wheel removal and installation, upside-down telescopic fork adjustment and oil-level checks, and progressive rear-shock settings.

• Brakes and clutch: Front-lever and rear-pedal adjustment, brake-pad wear checks, hydraulic bleed-fitting illustrations, and clutch-cable adjustment.

• Electrical equipment: Wiring diagram, electronic C.D.I. component locations, battery and bulb replacement, headlamp alignment, and digital instrument settings.

• Service planning: Mileage- and time-based maintenance chart, plus symptom-and-cause lists for starting, overheating, charging, and drivetrain problems.

Written for owners learning their motorcycle's operation and care, the manual directs servicing, mechanical adjustments, and repair work to qualified personnel in Husqvarna's dealer network.

Engine, Fuel, and Drivetrain Care

The lubrication pages distinguish the replaceable oil-filter cartridge from the right-side mesh filter and left-side double filter. Spark-plug inspection notes explain how deposits relate to mixture and ignition condition, and warn that an improperly tightened plug can overheat and damage the engine.

Carburetor specifications identify the accelerator pump and throttle-position sensor. The adjustment instructions address idle mixture and throttle-cable setup; they do not describe accelerator-pump tuning.

The oil-bath multiple-disc clutch and constant-mesh transmission are covered through specifications, lubricant service, control adjustment, and symptom checks. Internal engine and gearbox overhaul procedures are outside this owner's manual.

Troubleshooting distinguishes clutch slip, clutch drag, and difficult shifting, with references to cable free play, oil viscosity, and worn components. These distinctions help narrow the checks before planning a repair.

TE and SM Brake and Suspension Details

The front-brake controls use different adjustment arrangements on the TE and SM. Rear-shock rebound settings also differ by model, with spring-preload and separate compression adjustments described alongside them.

Illustrations show drive-chain adjustment, fork oil-level measurement, and rear-shock adjuster positions. The hydraulic brake bleeding section is limited to a short note and front/rear bleed-fitting illustrations.

The rear shock contains highly compressed nitrogen; the manual warns against disassembly.

Wiring, Lighting, and Instrument Functions

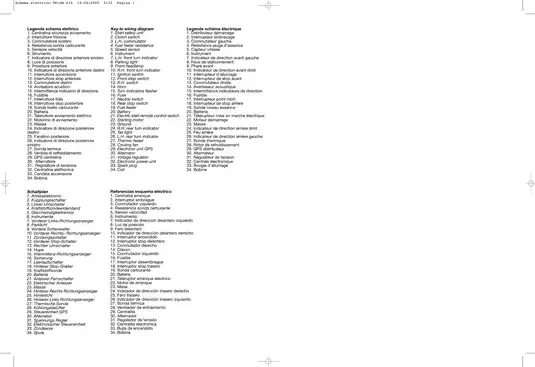

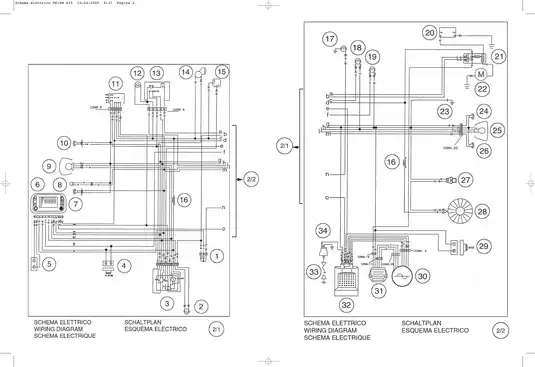

The wiring diagram is arranged in two panels with a numbered component key and cable-color legend. It covers starting interlocks, ignition, lighting, and the cooling fan, while troubleshooting notes address charging faults involving the alternator and voltage regulator.

Separate headlamp sections explain TE and SM bulb access and beam alignment. The digital instrument pages cover DEFAULT, TRP, CLK, and rpm displays, plus oil-change and maintenance indicators.

Electrical precautions explain that starting the engine with the battery disconnected can damage the electrical system.

A Preview of Oil-Service and Spark-Plug Data

These are a few examples of the maintenance specifications provided for both models.

For the shared engine, transmission, and primary-drive lubrication system, the refill is 2 liters with an oil-filter change or 1.8 liters for an oil-only change. The lubricant table lists AGIP RACING 4T SAE 10W-60.

The spark-plug inspection section specifies an electrode gap of 0.55–0.65 mm (0.022–0.026 in.), with an accompanying gap illustration.

PDF Navigation, Diagram Detail, and Page Breakdown

Text search and wiring detail: The manual's text is searchable, but the wiring diagram itself has no searchable text layer. No embedded PDF bookmarks are present. Small wiring labels require zooming, and some tiny connector-pin numbers remain blurred when enlarged.

One printable, 188-page PDF contains English, Italian, French, German, and Spanish text. The total includes the 172-page numbered manual, 12 lettered insert pages, and four opening pages: cover, edition notice, wiring key, and wiring diagram. Eight memorandum pages are already included within the numbered manual.
