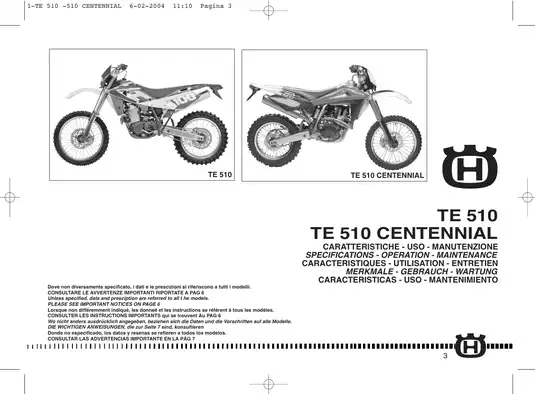

2004 Husqvarna TE 510 / TE 510 Centennial Owner's Manual (P/N 8000A3528)

This first-edition Husqvarna owner’s manual (01–04), P/N 8000A3528, covers the 2004 TE 510 and TE 510 Centennial. It documents operation, maintenance, chassis setup, and component inspection, with separate electrical information for U.S. versions.

• Engine maintenance: Oil changes, screen-filter and filter-cartridge service, cold valve-clearance checks and shim replacement, plus spark-plug and air-filter care.

• Fuel and cooling: Mikuni TMR 41 carburetor adjustment, throttle-cable checks, fuel-screen cleaning, coolant replacement, and cooling-hose inspection.

• Suspension and steering: Model-specific fork and shock settings, spring preload and sag adjustment, fork oil-level checks, and steering-bearing adjustment.

• Brakes and clutch: Brake-pad replacement, disc inspection, fluid changes, separate front and rear brake bleeding, and hydraulic-clutch bleeding.

• Electrical and instruments: U.S. and non-U.S. wiring diagrams, component legends, battery checks, digital-instrument settings, and speedometer fault checks.

• Competition maintenance: Pre-delivery and race-service schedules, chain and sprocket inspection, muffler packing replacement, and U.S. spark-arrester cleaning.

The manual is written for owners handling operation and routine care; major repairs require a skilled mechanic and the separate Husqvarna service manual.

Engine Care and Inspection Limits

The valve-adjustment section illustrates camshaft timing marks and rocker-arm access for checking clearances and changing shims. Oil-service instructions cover the screen filters and replaceable cartridge, supported by the AGIP lubrication and supplies chart.

The Service Limit chapter explains cylinder-to-piston measurement, piston-ring checks, connecting-rod radial and side play, and inspection of clutch plates, valve guides, springs, and camshafts. Detailed major-unit disassembly and reassembly belong to the separate workshop manual, rather than this owner’s publication.

Air-filter installation notes identify a sealing error that can let dirt reach the piston rings and cylinder, causing rapid wear. Follow the manual’s fuel-handling and starting-system precautions during service.

Chassis Setup and Hydraulic Service

Fork and rear-shock settings distinguish the standard model from the Centennial. Track-condition guidance accompanies fork-adjuster illustrations, spring-preload and sag checks, and independent low-speed compression, high-speed compression, and rebound settings for the rear shock.

Brake inspection includes disc thickness and warpage criteria, while the hydraulic-clutch section illustrates fluid-level checks and bleeding points. Steering-bearing adjustment, handlebar positioning, wheel removal, and spoke checks are also covered. Major service of the nitrogen-pressurized shock absorber is referred to a dealer.

Starting Controls and Electrical Fault Checks

Separate wiring diagrams and color-code legends identify the starter relay, electronic power unit, voltage regulator, ignition coil, gear-position sensor, and carburetor throttle-position sensor. The non-U.S. diagram also includes lighting, horn, and turn-signal circuits, helping match the wiring reference to the correct market version.

Digital-instrument instructions cover wheel-circumference, clock, and total-distance settings after battery replacement. Troubleshooting notes address missing speed readings, contact faults, and temperature-related display behavior. Manual starting-decompressor adjustment is covered separately from the automatic decompressor.

The “A” version warning addresses accidental starting during maintenance and voltage-regulator damage if the engine is started with the condenser removed.

Race Service, Exhaust, and Workshop References

The competition maintenance tables distinguish checks, cleaning, lubrication, replacement, and overhaul work, with cross-references to the relevant owner’s or workshop-manual sections. Chain inspection drawings show measurement points and worn sprocket profiles; exhaust coverage includes packing replacement and U.S. spark-arrester screen cleaning.

Engine and chassis torque tables include Centennial-specific fasteners. The special-tool references identify items such as ignition checking tool 8000 A1512 and clutch-hub retaining wrench 8000 79015.

Examples of Fluid and Chassis Setup Data

These examples are a small selection of the manual’s fluid requirements and setup specifications.

The hydraulic clutch calls for SAE 10 mineral oil, while the brakes use DOT 4 fluid. Instrument troubleshooting specifies a 2–4 mm gap between the wheel magnet and the sensor at the brake caliper.

Front-fork compression baselines are 23 clicks out for the TE 510 and 12 clicks out for the Centennial, measured from fully closed. Keeping those entries separate helps avoid applying the standard model’s fork setting to the Centennial.

PDF Search, Diagram Detail, and Included Pages

Text search and diagram detail: The PDF is partially searchable, with no embedded bookmarks. Some instruction pages and diagram labels are image-based. Small wiring labels require zooming; the non-U.S. diagram has a partly clipped condenser caption, identified in the accompanying numbered legend.

One printable 299-page PDF contains the manual in English, Italian, French, German, and Spanish. The total already includes the front and back covers, publication-information page, and seven memorandum pages.
