Husqvarna TE 610 E / SM 610 — 1998 Workshop Manual (P/N 8000 87097)

This Husqvarna workshop manual covers the TE 610 E enduro and SM 610 supermoto. The September 1998 edition is identified as P/N 8000 87097.

PDF Languages and Navigation

Text search and navigation: PDF text search and embedded bookmarks are unavailable. Use the printed section codes, contents pages, and alphabetical index to find procedures. Some small callouts in the cooling hose illustration are faint.

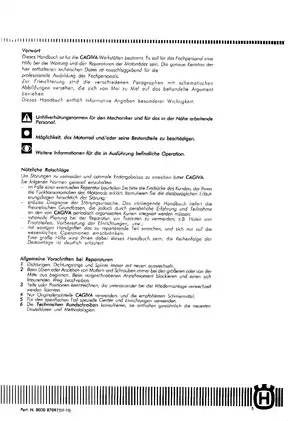

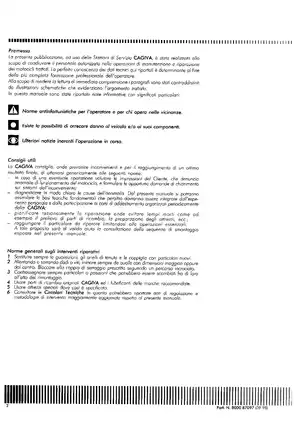

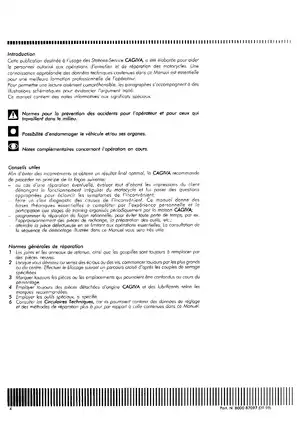

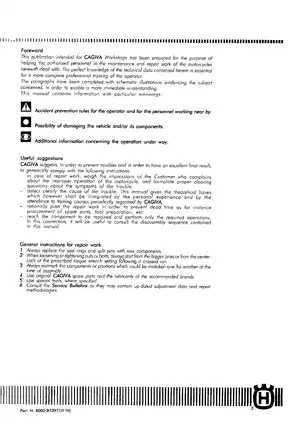

One printable PDF contains English, Italian, French, German, and Spanish text. The 322 pages include the original cover and eight blank separator pages.

Engine, Drivetrain, and Chassis Service

These selected service highlights show the range of work covered. The manual also includes a scheduled maintenance chart and drive-chain adjustment procedures.

• Engine repair: Step-by-step procedures for engine removal, disassembly, and reassembly, with cylinder-head and crankshaft inspection, cam-chain tensioner installation, and automatic decompressor checks.
• Clutch and gearbox: Wet-clutch adjustment and inspection, gearbox disassembly and reassembly, selector-fork checks, primary-drive service, and counterbalancer timing.
• Fuel system: Dell'Orto carburetor overhaul, including float-height measurement, accelerator-pump delivery checks, jetting references, and idle-mixture adjustment.
• Suspension and steering: Marzocchi fork removal and overhaul, Sachs shock inspection and spring preload, steering-head bearing adjustment, and rear-wheel removal.
• Cooling and lubrication: Water-pump disassembly and reassembly, radiator inspection, coolant replacement, oil-pump assembly, and oil-filter maintenance.
• Troubleshooting: Symptom, cause, and remedy charts for starting problems, poor running, clutch and shifting faults, charging problems, suspension behavior, and braking symptoms.

Written for authorized Cagiva workshop personnel, the manual assumes mechanical experience and calls for measuring equipment and specified special tools.

Engine Inspection and Gearbox Reassembly

Cylinder-head inspection covers valve seats and guides, rocker-arm bushings, and cam rollers. Matching categories and separate wear limits help determine whether the cylinder and piston can be reused as a pair. The treated cylinder bore requires replacement if it exceeds the service limits.

Mainshaft and output-shaft assembly views show the gear stacks. Separate illustrations cover crankshaft alignment and counterbalancer timing. Clutch inspection covers the basket, plates, and springs.

The valve-removal section warns that a misaligned spring compressor can bend valve stems. Special-tool references include valve spring compressor 8000 39521, clutch-hub holder 8000 39524, and crankcase puller 8000 89743.

Carburetor, Cooling, and Oil Circuits

An exploded view and setting table identify the Dell'Orto PHM 40 MS carburetor components. The fuel-system procedures also cover throttle and choke-cable adjustment.

The cooling circuit illustration identifies the twin radiators, thermostat, fan, and expansion tank. Service coverage includes pump housing and impeller removal, seal replacement, and air removal during coolant replacement. The lubrication diagram traces the pressure and return circuits through the pumps and filters and shows how oil vapor separates in the frame.

Suspension, Brakes, and Electrical Coverage

The Marzocchi procedures cover guide bushings, seals, fork alignment, and oil level. The Sachs section covers the spring and ball joints. The manual calls for keeping the pressurized shock body sealed and replacing the damper if its internal parts are worn.

Brakes and wheels: Brake lever, pedal, and fluid-level checks are included. The dedicated brake chapter, brake-bleeding procedure, and front-wheel removal and overhaul procedures are outside this PDF's coverage. Brake and steering work requires sound mechanical knowledge and secure support of the motorcycle.

Ignition and starting: The PDF includes Kokusan ignition specifications, starter-motor removal, stator and rotor installation, and pickup-gap checks. The dedicated electrical chapter and main wiring diagram are outside this PDF's coverage.

Piston Fit and Inspection-Cover Torque Examples

The piston-fit table lists an assembly clearance of 0.04–0.06 mm and a wear limit of 0.12 mm for the cylinder and piston. The drawing and some language versions give different heights for measuring piston diameter.

The valve-adjustment section specifies 7 Nm for the inspection-cover screws and gives a separate torque for the adjuster locknuts. Engine and chassis torque tables identify fasteners by application and thread size.
