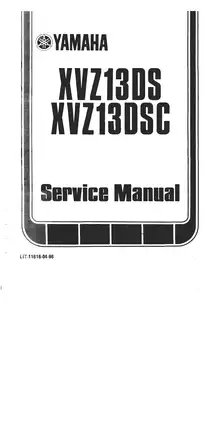

Yamaha XVZ13DS, XVZ13DSC Venture Royale 1986–1993 Service Manual (P/N LIT-11616-04-96)

Yamaha’s factory service manual for the XVZ13DS and XVZ13DSC Venture Royale, P/N LIT-11616-04-96, is the 1st Edition, November 1985, organized into eight service chapters. This is a repair reference, not an owner’s handbook or a set of year-by-year supplements.

PDF Bookmarks, Wiring Detail and Page Count

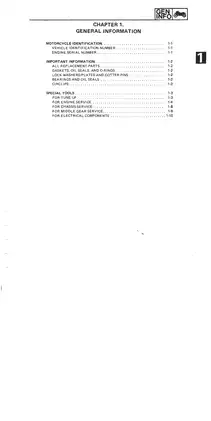

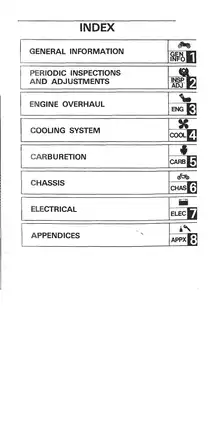

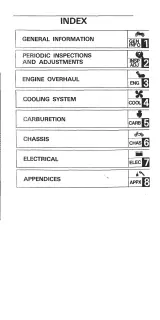

Search and diagram navigation: PDF text search is unavailable. Embedded bookmarks link to the index and eight service chapters; the first bookmark has an incorrect supplement title. Small wiring labels require zooming, and some wiring pages need rotation.

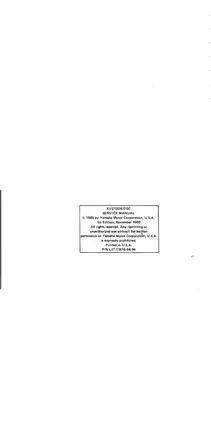

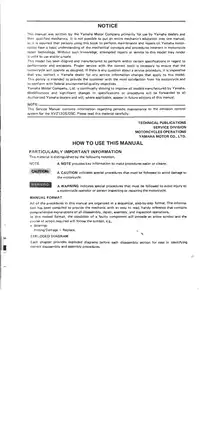

The ZIP download contains one printable English PDF with 466 pages, including four front-matter pages, six memo or otherwise blank pages, and two unnumbered wiring-diagram pages.

V-Four Overhaul, Shaft Drive and Touring-System Diagnosis

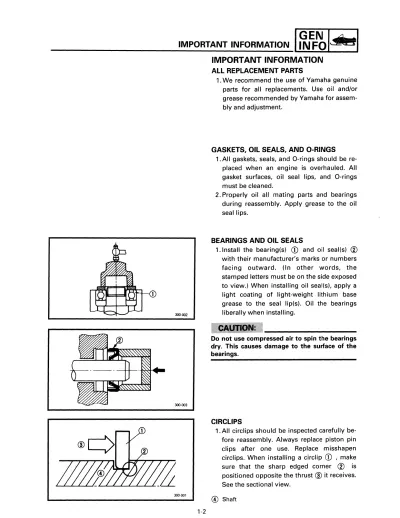

These selected service topics show the manual’s repair coverage. Further subjects include fairing removal and headlight beam adjustment.

• Engine and transmission: Step-by-step engine removal, disassembly, inspection, repair and reassembly, including cylinder heads, camshafts, pistons, crankshaft, clutch and transmission.

• Fuel and cooling: Carburetor disassembly, fuel-level adjustment and synchronization, plus water-pump seal replacement, thermostat testing and radiator inspection.

• Shaft drive: Middle-gear and final-drive troubleshooting, gear-lash adjustment, drive-axle positioning, bearing service and shim-selection procedures.

• Brakes and chassis: Wheel service, four-piston disc brakes, unified braking, hydraulic clutch, front forks, steering head, rear suspension linkages and swingarm.

• CLASS air suspension: Front and rear pressure adjustment, desiccant replacement, suction-filter cleaning, controller self-diagnosis and EAND electric anti-dive testing.

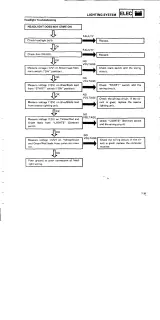

• Electrical troubleshooting: Starting, charging, ignition, cooling-fan, fuel-pump, computerized monitor, Venture cruise-control, audio/C.B., lighting and signal-system diagnosis.

• Workshop references: Exploded assembly views, wiring diagrams, diagnostic charts, cable-routing drawings, special-tool references, torque tables, wear limits, fluid data and electrical test specifications.

Yamaha wrote this manual primarily for its dealers and qualified mechanics, assuming a working knowledge of mechanical concepts and motorcycle repair procedures.

Model Identification and California Equipment

The XVZ13DSC-specific material includes canister inspection and removal. The California carburetor air-vent control valve has a separate circuit diagram and fault-isolation checks.

Engine Overhaul and Reassembly

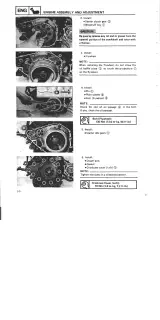

The liquid-cooled DOHC V-four procedures extend to valve and guide work, cam-chain and sprocket timing, piston and ring inspection, bearing selection and crankcase assembly. Starter idle gears, the flywheel, oil pump, lubrication system and engine remounting have their own service instructions.

Exploded diagrams precede disassembly sections to help identify parts and assembly order.

Carburetors and Cooling

The four Mikuni BDS34 carburetors are covered from removal through disassembly, inspection, assembly and installation. A sectional view identifies their internal passages and components.

Cooling references include a coolant-flow diagram and procedures for the drain valve and cylinder-head water-jacket joints. Water-pump coverage includes disassembly, bearing and seal replacement, and reassembly.

Middle Gear and Final Drive

The shaft-drive chapters address final-drive gear positioning and bearing replacement beyond routine oil changes.

The manual warns that hammering the U-joint can distort the driven pinion’s collapsible collar, alter its starting torque and require collar replacement and driven-gear reassembly.

Linked Brakes, Clutch and Suspension

Brake coverage includes pad and caliper work, master-cylinder inspection, disc installation and the bleeding sequence for the linked front-left/rear circuit. The hydraulic clutch has release-cylinder and master-cylinder disassembly, inspection, reassembly and bleeding instructions.

Fork procedures cover seals, bushings, EAND components and reassembly. Rear-shock work covers removal, inspection and replacement rather than internal shock rebuilding; the rear linkages and swingarm have bushing and bearing service.

The brake chapter specifies fresh brake fluid for internal parts because solvents can swell and distort the seals.

Several jobs require secure support of the motorcycle. Follow the manual’s precautions for hot pressurized coolant, brake and clutch hydraulics, and suspension work before components are loosened or removed.

Electrical Diagnosis and Factory Tools

The starting section covers circuit cut-off relays and switches. Charging and ignition sections provide component checks, while the audio chapter addresses the factory radio, cassette deck and C.B. system.

CLASS diagnosis includes E1–E6 error indications and checks for the controller, pressure sensor, compressor and valves.

Reference drawings include the XVZ13DS/DSC main circuit diagram, CLASS circuit diagram and controller check chart, Venture cruise-control circuit diagram, and brake and clutch piping diagrams. The appendix adds full wiring and lubrication diagrams plus detailed cable-routing views.

Middle-gear tool references include the YM-33222 middle-drive-gear holder, YM-04062 universal-joint holder and YU-03097 dial gauge.

Carburetor synchronization calls for the YU-08030-A vacuum gauge; ignition testing uses the YU-33260 electro tester. Component-specific references include clearances, lubrication requirements, suspension settings, and electrical resistance and output tests.

Examples of Carburetor Vacuum and Middle-Gear Specifications

The carburetor specifications call for intake vacuum above 33.3 kPa at idle and a vacuum synchronization difference below 1.33 kPa. These accompany the gauge-based synchronization procedures.

The middle-gear section specifies 0.05–0.12 mm of gear lash and includes measurement and shim-selection instructions.
