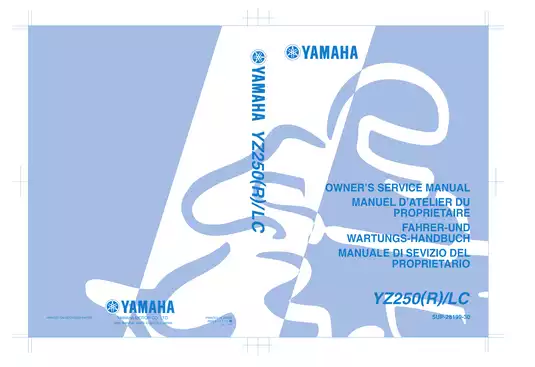

2003–2004 Yamaha YZ250(R)/LC Service Manual (P/N 5UP-28199-30)

• Exact model coverage: Yamaha YZ250R for the USA, YZ250(R) for Canada, Australia, New Zealand, and South Africa, and YZ250LC for Europe. Yamaha model codes are 5UP1 (USA/Canada/South Africa), 5UP2 (Europe), and 5UP4 (Australia/New Zealand), with regional specification and carburetor-setting differences identified in the manual.
• Engine and transmission repair: Covers carburetor and reed-valve service, cylinder head/cylinder/piston work, clutch and primary drive, kick and shift mechanisms, YPVS governor, water pump, CDI magneto, engine removal, crankcase and crankshaft work, and transmission/shift-cam/shift-fork service.
• Chassis procedures: Includes wheel and brake disassembly, brake-system bleeding, front-fork teardown and seal installation, steering and swingarm bearing work, plus rear-shock removal, spring setup, inspection, and installation.
• Electrical fault tracing: Provides the electrical-component layout and wiring diagram, ignition-system troubleshooting, connector checks, solenoid-valve diagnosis, and TPS inspection, replacement, and adjustment coverage.
• Race setup and tuning: Details carburetor correction for temperature, humidity, and altitude; pilot, main-jet, and jet-needle selection; symptom-based jetting charts; and front- and rear-suspension setup for rider weight and track conditions.

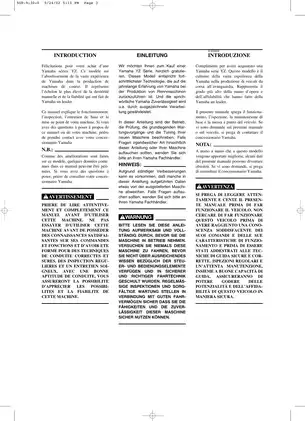

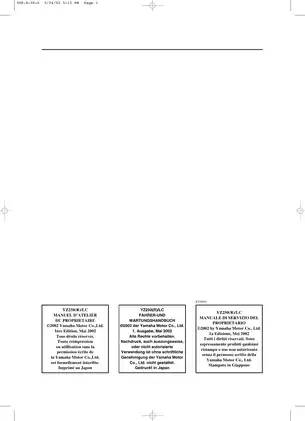

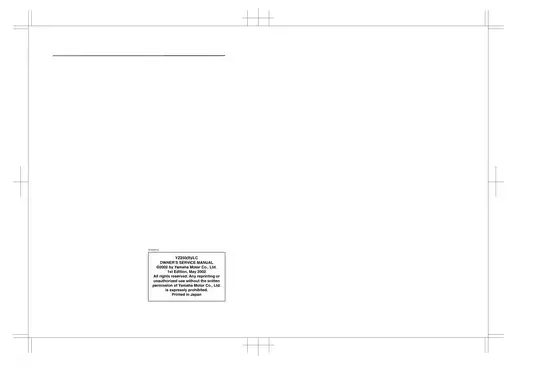

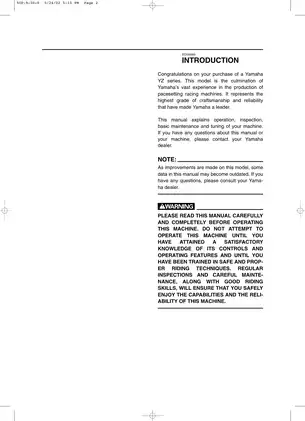

• Document details: Yamaha Owner’s Service Manual no. 5UP-28199-30, first edition, May 2002. This is a 586-page PDF with English, French, German, and Italian text, factory specifications, exploded views, charts, and schematics.

Engine, Fuel, and Drivetrain Coverage

This Yamaha owner’s service manual goes well beyond operation and routine upkeep. Its repair chapters support top-end service, power-valve work, clutch and primary-drive repair, water-pump service, complete engine removal, crankcase separation, crankshaft removal and installation, and transmission inspection and reassembly. The carburetor section covers disassembly, float and jet inspection, throttle-position sensor handling, reed-valve checks, and final installation.

The manual is suited to experienced two-stroke owners, race mechanics, and technicians who are already comfortable with precision engine and suspension work, since many procedures call for pullers, holding fixtures, dial gauges, electrical test equipment, and accurate measurement. Maintenance coverage includes pre-operation checks, coolant and cooling-system inspection, air-filter service, transmission-oil service, silencer-fiber replacement, control adjustment, drive-chain setup, and ignition-timing checks.

Chassis, Electrical, and Diagnostic Detail

Chassis repair content covers wheel hubs and bearings, front and rear hydraulic brakes, fork removal and full disassembly, steering-head bearings, swingarm linkage, and shock-spring installation. The rear shock section has a clear scope boundary: it covers removal, external inspection, bearings, spring setup, and installation, but treats the nitrogen-charged damper body and reservoir as sealed components rather than providing an internal shock overhaul.

Electrical diagnosis is organized around the ignition, solenoid valve, and throttle-position sensor systems. Inspection charts walk through spark testing, engine-stop switch continuity, ignition-coil and CDI-magneto checks, source and pickup coils, connector condition, and TPS input/output evaluation. Diagram support includes the cable-routing diagram, electrical-component location view and wiring diagram, ignition-system troubleshooting chart, solenoid-valve inspection chart, TPS diagnostic chart, and exploded assembly views for the YPVS governor, crankcase/crankshaft, transmission, and front fork.

Two component-specific cautions show the level of factory repair detail. The manual warns that disturbing the TPS mounting screws when the sensor is not being replaced can alter its position and reduce engine performance. It also identifies the rear shock’s high-pressure nitrogen reservoir as a sealed unit; damage to the tank or piston-rod surface can cause damping trouble or oil leakage, and gas-release disposal is reserved for Yamaha dealers.

Special Tools and Factory Reference Data

The special-tool section separates U.S./Canadian YM, YU, and ACC numbers from the 90890-series numbers used in other markets. Listed examples include the YU-1135-A / 90890-01135 crankcase separating tool, YM-1189 / 90890-01189 flywheel puller, YM-1423 / 90890-01423 damper-rod holder, YM-01442 / 90890-01442 fork-seal driver, and YM-34487 / 90890-06754 ignition checker.

Reference tables supply component-specific torque specifications, fluid and premix data, cooling-system test information, dimensional and wear limits, gear and clutch inspection criteria, electrical resistance and output checks, carburetor settings, and suspension adjustment data. European jet-needle and pilot-air settings are separated from the USA/Canada/South Africa/Australia/New Zealand setup, helping the buyer match the correct regional configuration before beginning repair or tuning work.
