Yamaha YFM35FGI Service Manual

Equipping yourself with this professional-grade technical volume ensures your ATV maintains peak mechanical integrity and factory-standard performance. This document serves as the definitive workshop authority, providing the precise engineering data and systematic procedures required for everything from routine maintenance to complex component overhauls. By following these validated OEM protocols, owners and technicians can maximize vehicle longevity while significantly reducing long-term operational costs.

Factory Mechanical Specifications

• Primary Model Identification: Yamaha YFM35FGI
• Design Series Compliance: 4S21 and 4S25
• Chassis Architecture: High-tensile steel tube frame with On-Command 4WD logic

Workshop Reference Standards

• Physical Document Volume: 500 Pages
• Technical Format: High-Definition Digital File (Print-Ready)
• Official Manual Designation: Technical Service Publication

Integrity & Maintenance ROI

• Precision Tuning: Eliminate guesswork with exact idle speeds, valve clearances, and spark plug gaps to ensure optimal fuel efficiency.
• Component Longevity: Extend the life of your 4WD system and engine by utilizing the correct lubrication types and change intervals.
• Cost Mitigation: Perform professional-level repairs in-house, bypassing expensive dealership labor rates for major system diagnostics.
• System Reliability: Maintain the integrity of the wet multiple-disc brake system and V-belt transmission through systematic inspection protocols.

Technical Systems Diagnostics

The manual provides a comprehensive troubleshooting framework for isolating complex mechanical and electrical issues. It includes dedicated logic paths for starting failures, poor mid-range performance, and drive train malfunctions. Detailed fault-isolation charts guide you through checking ignition system components, carburetor fuel levels, and the electronic selecting system for the On-Command 4WD.

High-Resolution Workshop Schematics

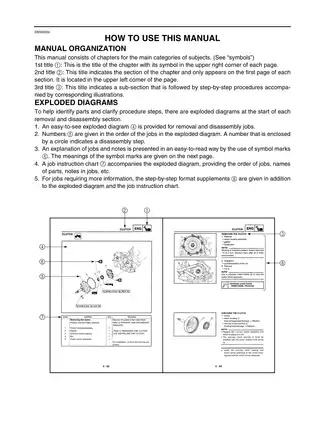

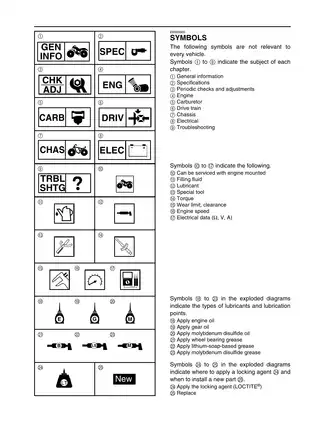

Every technical section is anchored by crystal-clear exploded diagrams that serve as visual maps for disassembly. These schematics feature precise numbering for job sequences, specific torque callouts for every fastener, and standardized symbols indicating where to apply specialized lubricants or locking agents. The high-zoom capability allows for the inspection of fine details like the orientation of one-way clutch bearings and the routing of the electrical wire harness.

Mechanical Integrity Benchmarks

Detailed Technical Contents

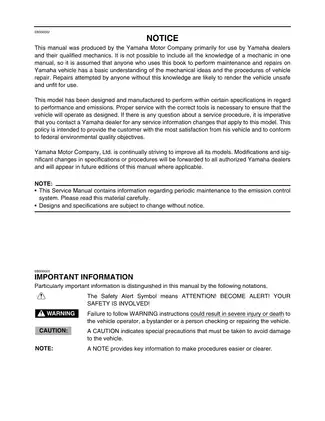

• General Information: Vehicle Identification, Special Tools, and Preparation for Disassembly.
• Specifications: Engine, Chassis, and Electrical Technical Benchmarks with Conversion Tables.
• Periodic Adjustments: Maintenance Charts, Valve Clearance, Idling Speed, and Compression Testing.
• Engine Overhaul: Detailed procedures for Cylinder Head, Camshaft, Piston, and Crankcase assembly.
• Carburetion: Mikuni BSR33/1 Cleaning, Float Height Adjustment, and Fuel Level Settings.
• Drive Train: Front and Rear Constant Velocity Joint service, Differential Gear lash adjustments.
• Chassis Systems: Hydraulic Front Brake bleeding, Wet Multiple-Disc Rear Brake service, and Steering Knuckle inspection.
• Electrical System: Ignition timing, Charging Circuit troubleshooting, and 2WD/4WD Selecting System logic.
• Troubleshooting: Comprehensive indices for engine, handling, and lighting system malfunctions.

FAQ

How do I ensure the carburetor is tuned to factory standards on the YFM35FGI? Correct fuel-air mixture is vital for engine response; ensure the Mikuni BSR33/1 carburetor float height is set precisely to 13.0 mm (0.51 in). Adjusting the pilot screw to the documented engine speed of 1,450–1,550 RPM prevents stalling during rapid deceleration and optimizes fuel economy across different altitudes.

What are the critical engine compression limits for the 4S21 series? To maintain peak power, the cylinder compression should ideally be 1,050 kPa (149.3 psi) at 750 RPM. If your diagnostic testing shows values below the minimum limit of 910 kPa (129.4 psi), the manual provides systematic teardown procedures for the SOHC cylinder head to inspect for valve seat wear or piston ring blow-by.

Is this manual compatible with the On-Command 4WD logic? Yes, this guide contains the full electrical and mechanical logic for the 4S21 and 4S25 drive systems. It details the troubleshooting paths for the differential gear lock and the specialized torque specification of 55 Nm (4.0 m·kg) for the front constant velocity joint nut, ensuring the drivetrain remains reliable under high-load off-road conditions.

What valve clearance values are required for a cold engine service? For a successful top-end service, set the intake valves to 0.06–0.10 mm and the exhaust valves to 0.16–0.20 mm while the engine is cold. Maintaining these precise gaps prevents premature cam wear and ensures the 348 cm³ powerplant operates without excessive mechanical noise or heat-related power loss.

Can I find specific fluid volumes for the final gear and differential? Precise lubrication is essential for gear longevity; the final gear case requires 0.50 L of Friction Modified Shaft Drive Gear Oil during a standard oil change. For the front differential, use exactly 0.23 L of SAE 80 API GL-4 hypoid gear oil to ensure the internal engagement dogs operate smoothly without overheating.

Where do I find the maintenance limits for the V-belt transmission? The drivetrain section specifies a minimum V-belt width of 26.6 mm (1.05 in). Measuring this against the factory limit is the primary way to diagnose belt slip or loss of top-end speed, allowing you to replace the belt before a total field failure occurs.
