John Deere 300 Series OEM Engines 1977–1984 Technical Manual (P/N TM-1190)

John Deere’s 300 Series OEM Engines Technical Manual, P/N TM-1190, December 1984 revision, covers the listed 1977–1984 naturally aspirated and turbocharged three-, four-, and six-cylinder diesel engines.

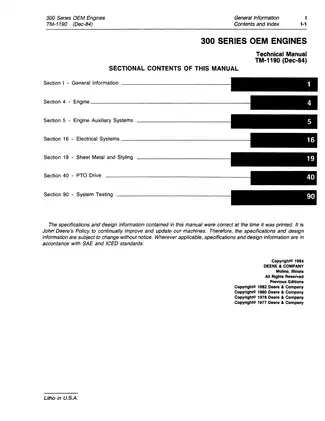

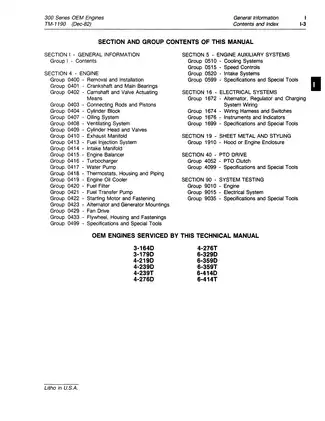

Text Search, Section Bookmarks, and PDF Contents

Search and diagram detail: Embedded OCR supports text search, with recognition errors and incomplete diagram text. Bookmarks link to the major sections; small wiring labels need zooming.

One printable 438-page PDF in English, including the cover and 34 blank or header-only pages.

Engine Overhaul, Fuel-System Service, and Electrical Testing

These selected service topics represent part of the coverage; additional sections address engine enclosures and instrument gauges.

• Engine overhaul: Step-by-step engine removal and installation, crankshaft and main bearing repair, connecting rod and piston service, and cylinder block and wet-liner work.

• Cylinder head and valve train: Cylinder-head disassembly, valve-seat inspection, camshaft service, timing gear train installation, valve adjustment, and engine balancer timing.

• Fuel injection: Pump removal and installation, static timing, cam advance adjustment, fuel-system bleeding, nozzle replacement, and pump-specific test-stand specifications.

• Lubrication and cooling: Oil-pump, pressure-control valve, and oil-cooler service, water-pump overhaul, thermostat checks, and radiator inspection and leakage testing.

• Electrical repair: Delco-Remy and John Deere starting-motor service, Motorola and Delco-Remy alternator component tests, and starting-circuit fault tracing.

• PTO drive: Clutch removal and disassembly, drive-disk and bearing inspection, in-line-load and side-load shaft assembly, and engagement adjustment.

• Engine diagnosis: Malfunction charts, compression, oil-pressure, fuel-transfer-pump, and turbocharger boost tests, plus an electrical schematic and wiring diagram.

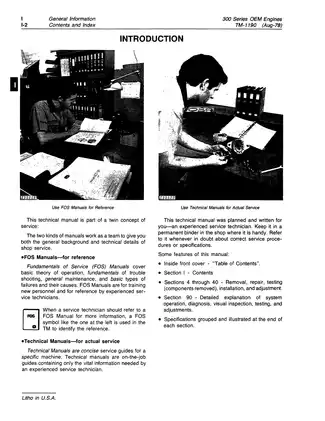

John Deere wrote this manual for experienced service technicians using it as an on-the-job shop guide.

Cylinder Block and Valve-Train Repair

The factory dimensions and wear limits let technicians compare components during teardown and assess repair or replacement requirements. Cylinder-head coverage includes resurfacing limits and valve-seat work, with separate tightening-sequence drawings for three-, four-, and six-cylinder heads.

Serial-dependent piston replacement rules, B- and H-type piston selection, and revised connecting rod/cap screw combinations receive specific treatment. The 4-276 and 6-414 engine families have a separate connecting rod cap screw torque specification of 95 lb-ft (129 N·m).

Incorrect liner seating can shear or displace the liner packings.

Heavy diesel engine service involves high-pressure fuel systems and heavy cast components. Follow shop safety procedures and use suitable lifting equipment for teardown work.

Injection Timing and Pump Repair Limits

Pump-specific instructions distinguish Roto-Diesel units from Stanadyne (Roosa-Master) JDB and DM pumps. Timing after engine front-plate replacement is covered, alongside three-, four-, and six-cylinder fuel-delivery sequence drawings.

Internal repair scope: JDB pump repair is referred to SM-2045; DM pump repair and injection-nozzle testing and repair are referred to TM-1109. These separate publications are not included.

Roto-Diesel service is limited to the available service parts; full pump checks require a specialist test stand. Its test-stand specification sheets are marked as not applicable in Europe, Africa, or the Middle East.

Turning the pump outlet fittings during injection-line removal can damage the pump internally.

Lubrication, Cooling, and Turbocharger Service

Oil-pump and oil-cooler procedures distinguish engine-family configurations. The 4-276T code 1907 dipstick arrangement has separate instructions, while intake-manifold inspection and crankcase ventilating-system service are also covered.

Water-pump procedures distinguish hub, pulley, and serial-dependent arrangements. The Cooling System drawing explains coolant circulation, and the Turbocharger Exploded View identifies the components used during disassembly and reassembly.

Special-tool references include the JD-254 gear timing tool, KCD-10001 cylinder liner puller, and JDE-38 injection nozzle puller.

Starting and Charging Diagnosis

The Electrical Schematic and Wiring Diagram show the starting relay, safety-switch, and fuel shut-off circuits. Starting tests distinguish power-circuit faults from control-circuit faults; charging procedures separately address Delco-Remy and U.S.- and French-made Motorola alternators.

PTO Clutch Inspection and Adjustment

The PTO section distinguishes in-line-load and side-load shaft and bearing arrangements. Engagement-force and shaft end-play checks accompany clutch adjustment, with drive-disk wear specifications for component inspection.

Liner Seating and Camshaft Clearance Examples

Camshaft inspection: New camshaft end play is specified at 0.003–0.009 inch (0.08–0.23 mm), with a maximum of 0.015 inch (0.38 mm).

Liner fit: For a new cylinder liner checked in the block without its packings, flange height above the block deck is specified at 0.001–0.004 inch (0.03–0.10 mm).
