John Deere Gator CS & CX UTV Technical Manual – 2005 (P/N TM2119)

John Deere’s September 2005 North American technical manual, P/N TM2119, covers service, diagnosis, and repair of Gator CS and CX light-duty utility vehicles with Kawasaki FE250D and FE290D engines.

Searchable PDF with Section and Procedure Bookmarks

Finding procedures and reading schematics: Searchable text and embedded PDF bookmarks provide access to system sections and individual procedures. Small wire and connector labels in dense electrical schematics are readable when enlarged.

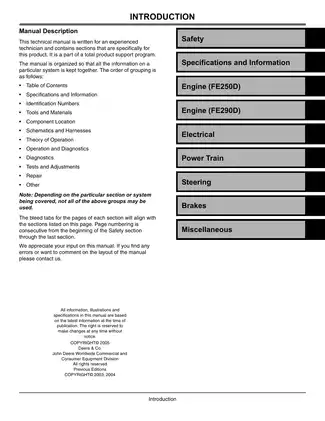

The download contains one printable, English-language PDF with 328 pages: four opening pages, 316 numbered manual pages, and an eight-page index. Blank divider pages are included in this total.

Engine, CVT, and Electrical Service Coverage

Selected workshop topics appear below. Other covered work includes hood removal and cargo-box removal and installation.

• Engine repair: Engine removal and installation, cylinder-head overhaul, piston inspection, crankshaft service, and reciprocating balancer disassembly and inspection.

• Fuel and engine diagnosis: Fuel-pump pressure and flow tests, carburetor service, governor adjustments, valve-clearance checks, and automatic compression release testing.

• CVT and transaxle: Drive-clutch repair, driven-clutch service, back-shifting checks, transaxle teardown, and differential-lock adjustment for the CX.

• Electrical troubleshooting: Starting, ignition, and charging circuits; battery and ground tests; starter-motor inspection; and circuit-specific diagnostic procedures.

• Steering and suspension: Rack-and-pinion steering repair, tie-rod service, independent A-arm suspension work, front-wheel bearings, and shock-absorber replacement.

• Wet disc brakes: Internal brake components, parking-brake diagnosis, brake-cable replacement, brake-spring adjustment, and checks for dragging or noisy brakes.

• Optional equipment: Auxiliary alternator repair, cargo-box lift actuator service, and electrical diagnosis for the front blade, lighting, horn, and backup alarm.

Written for experienced technicians, this manual includes procedures requiring diagnostic instruments and the specified service tools.

Engine Inspection and Fuel-System Diagnosis

Rebuild measurements: The engine sections provide piston-to-ring clearances, valve-guide internal diameters, and crankshaft end-play specifications. Cylinder-head, connecting-rod, and crankcase-cover torque data accompany the repair procedures.

Lubrication differences: The FE250D uses splash lubrication; the FE290D uses pressure lubrication and has an oil-pressure test. FE290D camshaft coverage addresses oil-pump removal for camshaft installation and warns of serious engine damage if the pump’s drive tang does not engage the camshaft slot.

The Engine Troubleshooting Guide connects symptoms with fuel, ignition, and compression checks. Automatic compression release testing provides additional context for interpreting cranking-compression results.

Carburetor service qualification: The carburetor instructions restrict disassembly and adjustment of CARB/EPA-certified emissions carburetors to factory-trained technicians authorized for that work.

Clutch Service and Transaxle Variants

The Transaxle Components views distinguish assemblies with and without differential-lock parts. Separate engine-removal and drivetrain-subframe procedures address the documented serial breaks.

Tools for clutch work: The manual identifies the JDG1641 clutch removal tool and JDG813 clutch servicing kit. These references make the tooling requirements visible before clutch removal or spider disassembly begins.

Transaxle oil selection: Lubrication guidance distinguishes Hy-Gard J20C from Low Viscosity Hy-Gard J20D for cold operation. The wet-brake troubleshooting section also addresses oil-related brake chatter.

Starting Circuits and Accessory Electrical Repairs

The Power Circuit Wiring Schematic and Cranking Circuit Wiring Schematic accompany diagnostic checks with test conditions, measurement locations, and expected results. Together, these references support tracing a no-crank fault through its supply, control, and ground paths.

Cargo-box lift: The Cargo Box Lift Kit Circuit Schematic supports electrical diagnosis alongside actuator current-draw tests and checks for binding or thermal-overload operation. Repair coverage includes the actuator motor, clutch, and seals.

Alternator and front blade: Auxiliary alternator coverage includes disassembly and component inspection. Front-blade coverage includes circuit diagnosis and motor removal and installation; the front-blade motor has no internally serviceable parts.

Steering Faults and Brake Adjustment

Steering diagnosis addresses wandering, shimmy, and binding, with toe-in adjustment and component inspection procedures. Brake diagnosis separates linkage and cable problems from faults involving the internal wet disc brake.

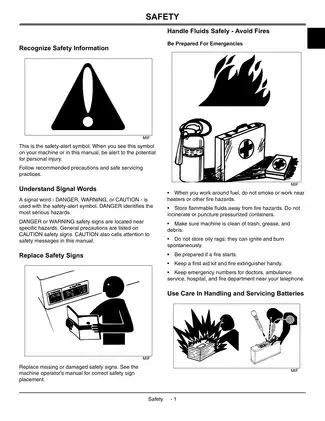

Review the manual’s safety instructions before working around rotating drivetrain components, a raised cargo box, or battery electrolyte.

Oil Pressure and Engine Wear Limits: A Preview

The FE290D oil-pressure test specifies a minimum of 314 kPa (46 psi) at operating temperature with the engine at fast idle.

Compression-ring end-gap limits differ between engines: the FE250D maximum is 1.0 mm (0.039 in.), while the FE290D maximum is 1.20 mm (0.047 in.). These values belong to the respective piston and ring inspection specifications.

For FE250D cylinder-head inspection, the intake-valve stem outside-diameter wear limit is 5.930 mm (0.2334 in.).
