Kyocera CS-2560 / CS-3060 2007 Service Manual Set (P/N 2H0SM961)

The service manual covers diagnosis and repair of the base machines. The appended guides document installation, alignment, activation, and operational checks for optional equipment.

The option booklets cover installation rather than full internal accessory repair. Some paper-feeder electrical checks refer to a separate paper-feeder service manual.

Searchable Text, Bookmarks, and Wiring Detail

Text search and diagram detail: The service text and installation guides are searchable. Embedded bookmarks open the service chapters and each option guide. The two final publisher address pages are not text-searchable. Small connector and pin labels in the general wiring diagram require zooming.

One printable 391-page PDF combines the English service manual with multilingual installation guides. The total includes the original covers, preliminary pages, and two publisher address pages.

Copier Repairs, U-Mode Tests, and Option Installation

These selected content highlights outline the main service areas. Additional topics include user login administration and job accounting.

• Mechanical repairs: Step-by-step removal and refitting procedures for paper-feed, scanner, laser, drum, main charger, developing, transfer, and fuser assemblies.

• Maintenance Mode (U-mode): Status and event logs, initialization, motor/clutch/solenoid tests, paper-path switch checks, image alignment, DP adjustments, high-voltage checks, toner controls, and fuser monitoring.

• Fault isolation: Paper-jam detection conditions, C/F service codes, electrical and mechanical symptom charts, image-defect diagnosis, and SMB, FTP, email, Network TWAIN, and software error tables.

• Electrical reference: PWB layouts, connector pin and signal tables, electrical-parts locations, general wiring diagrams, firmware updating, and board-replacement requirements.

• Optional equipment: Installation guides for the document processor, paper feeder, external and built-in finishers, job separator, FAX System (M), Data Security Kit (C), and UG-30.

The live electrical checks, maintenance-mode calibration work, and machine disassembly make this set suited to trained copier technicians and repair shops equipped for ESD-safe, high-voltage service.

U-Mode Diagnosis and Image Adjustment

U000 documents current settings, paper-jam history, and service-call records. U030 through U033 identify the motor, paper-conveying switch, clutch, and solenoid tests. Cross-references between jam symptoms, these tests, and corrective measures help technicians trace a feed fault to the relevant component checks.

The image-adjustment chart connects test patterns with polygon- and main-motor speed, LSU registration and center-line settings, print margins, scanner magnification, DP timing, and automatic scanner adjustment.

Self-diagnosis tables cover PWB/EEPROM, HDD, drive-motor, scanner, laser, developer, fuser, paper-feeder, finisher, and document-processor faults. The image-formation section distinguishes 18 named defects, including backgrounding, streaks, blur, offset, and registration errors.

Fuser, Optical, and Paper-Path Repairs

Fuser procedures extend beyond assembly replacement to the heat-roller separation claws, press and heat rollers, heater, thermistors, and thermostats. A separate adjustment addresses lateral squareness when the drum and fuser are not parallel.

Optical service includes scanner-wire refitting and reference procedures for ISU removal and position adjustment. Ozone-filter and hard-drive replacement are also documented.

Operating descriptions explain cassette and MP-tray feeding, switchback ejection, and duplex transport. Separate sections describe single-component development, transfer and separation, cleaning and charge erasing, and fusing.

Wiring, Connector Tables, and Board Replacement

Named visuals include the machine cross section, cassette and MP paper-feed diagrams, image-scanner and laser-scanner block diagrams, developing and fuser section views, and the general wiring diagram with optional-device interfaces.

Electrical-parts layouts locate PWBs, sensors, motors, clutches, and solenoids. Pinout tables identify signal direction, voltage state, and circuit function for the power-source, engine, main, and operation-unit boards.

Firmware procedures cover the main PWB, engine PWB, and MMI. Replacement notes identify EEPROM-transfer requirements for both the engine and main PWBs.

Scanner Tools and Maintenance References

Scanner-wire refitting identifies the gray front wire P/N 2C912360, black rear wire P/N 2C912350, frame securing tools P/N 302C968310, and scanner-wire stoppers P/N 35968110. Automatic scanner adjustment specifies target originals P/N 302FZ56990 and P/N 2AC68241.

The appendix provides manufacturer maintenance-part numbers, separate maintenance-kit listings for 120 V and 220–240 V configurations, periodic service tables, and the ordered image-adjustment chart.

Accessory Setup and Service Cautions

The option guides document DP image checks, paper-feeder center-line adjustment, document-finisher guide-rail and height alignment, built-in-finisher and job-separator installation, and single- or dual-FAX board setup.

USB-key activation procedures cover the Data Security Kit and UG-30. Security-kit activation includes deletion of stored customer data; the UG-30 guide covers activation of the machine’s high-compression PDF and PDF encryption functions.

Interrupting the prescribed shutdown sequence can damage the installed hard drive. Incorrect handling of the built-in finisher can deform its staple mounting plate.

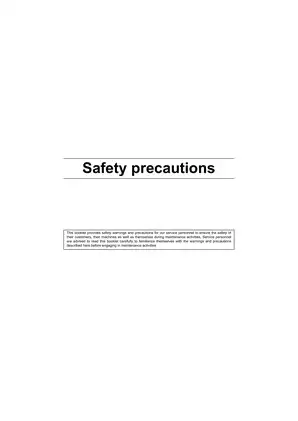

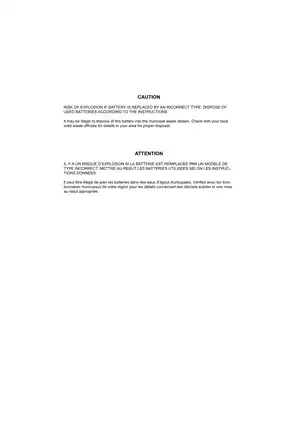

Safety coverage addresses mains isolation, ESD-sensitive PWBs, high-voltage charger circuits, laser optics, and hot fuser components.

Sample Image-Quality Tolerances

At 100% magnification, the image-quality table specifies a tolerance of ±0.8% for the machine and ±1.5% when using the document processor.

Paper-feed skew is specified at 1.5 mm or less from the cassette or MP tray, versus 2.0 mm or less in duplex mode. These values accompany the image-adjustment references in the appendix.
