Kyocera TASKalfa 250ci/300ci/400ci/500ci 2008 Service & Installation Manual Set (P/N 842H7111)

The service manual covers copier diagnosis, repair, and adjustment; the accessory guides provide installation procedures and the associated setup checks.

Accessory scope: These booklets cover option installation and adjustment rather than full accessory repair. The document tray booklet carries different model names on its cover and internal heading.

PDF Search, Bookmarks, and Wiring Detail

Search and diagram navigation: Searchable text covers the service manual and accessory guides; the final manufacturer contact pages do not support text search. Embedded bookmarks open the main service sections and individual installation guides. Small connector, pin, and signal labels on the wiring sheets require zooming for comfortable reading.

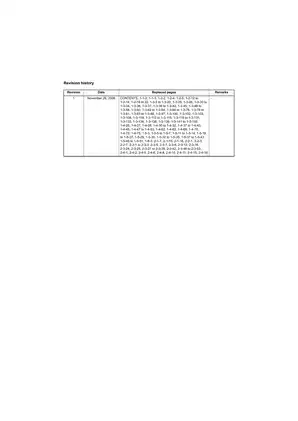

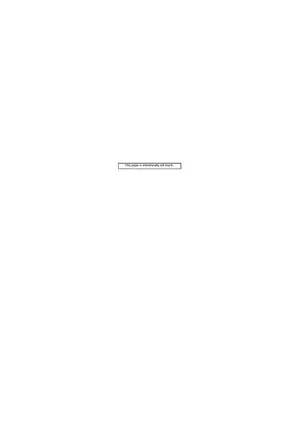

The collection is supplied as one printable, 586-page PDF, including the two manufacturer contact/copyright pages shown above. Covers, revision information, and blank pages are included in the listed publication totals. The main service text is in English, while the accessory guides include multilingual instructions.

Paper-Path Diagnosis, Imaging Repair, and Calibration

The following selected coverage highlights summarize the main workshop content rather than reproduce the full contents list. Further topics include original-size detection adjustment and touch-panel initialization.

• Fault isolation: Paper-misfeed detection conditions, self-diagnostic C-code tables, probable causes, connector checks, and corrective measures, plus separate image-formation, electrical, and mechanical troubleshooting charts.

• Paper-feed repair: Step-by-step removal and reinstallation procedures for forwarding, paper-feed, and separation pulleys, the MP unit, and its feed components.

• Scanner and optics: Exposure-lamp, scanner-wire, ISU, and laser scanner unit replacement procedures, with scanner positioning and manual color-registration adjustment.

• Image formation and transfer: Developing-unit, drum-unit, charger-roller, transfer-belt, transfer-roller, and fuser replacement, including the specified post-replacement image adjustments.

• Maintenance and calibration: Motor, clutch, solenoid, fan, switch, and sensor checks; print timing, scanner/DP geometry, drum refresh, halftone, uneven-density, and laser-output adjustments.

• Electrical reference: Mechanical section drawings, electrical-parts layouts, PWB silk-screen diagrams, connector pin/I/O/voltage tables, and wiring sheets for tracing signals between assemblies.

• Firmware and stored data: Firmware upgrade procedures, main and engine PWB replacement requirements, and USB backup/restore functions associated with hard-disk replacement.

Written for service personnel, the manual suits technicians familiar with commercial copiers, maintenance modes, electrical testing, and work around high-voltage and heated assemblies.

Variant-Specific Diagnosis and Maintenance

The shared service-page headers identify the 2JZ/2JX/2JV/2H7 chassis group. Tables distinguish the lower-speed and higher-speed hardware through paper-feed diagrams, motor and transfer controls, fuser data, and hard-disk layouts.

Maintenance-parts tables separate MK-865A/MK-865B from MK-855A/MK-855B, including supply-specific fuser assemblies. These distinctions help technicians select the applicable component references and diagnostic information before planning replacement work.

Periodic service tables identify inspection, cleaning, lubrication, and replacement work across the feed, optical, image-formation, transfer, fuser, duplex/eject, filter, and sensor sections.

Circuit Documentation and Replacement Setup

Named illustrations include the machine cross section and paper path, cassette paper-feed block diagrams, and block diagrams for the drum, laser scanner, primary transfer, and fuser sections.

The electrical chapters add board, switch/sensor, and motor locations, together with connector-level signal descriptions. There are 11 wiring-diagram sheets; Diagram Nos. 3 and 5 have separate versions for the two hardware groups.

Firmware procedures address the main, engine, MMI, scanner, and option systems. Board-replacement notes explain EEPROM transfer, DIMM placement, and cable matching. PWB coverage supports signal checks and board replacement rather than component-level board repair.

The hard-disk section covers removal and reinstallation, with U917 backup-data export and import for stored settings such as the address book, job accounting, and user-management information.

Installation, Administration, and Service Aids

Machine setup includes initial copy modes, key-counter installation, core system settings, address-book and one-touch editing, User Login Administration, and Job Accounting.

Accessory instructions extend beyond mounting: the document processor guide includes geometry and image checks, while the finishing guides cover applicable height, curl, staple, fold, and punch-position adjustments.

Scanner repair calls for frame securing tools P/N 302FZ17100, wire stoppers P/N 3596811, and ISU positioning pins P/N 18568120. Automatic scanner/DP adjustment uses specified originals P/N 302FZ56990 and 302AC68243; gamma and matrix work uses 303JX57010 and 303JX57020.

Repair Cautions and Working Limits

The manual warns that incorrect shutdown can damage the hard disk. Transfer-belt and fuser procedures flag damage risks around the belt sensor, left-eject actuator and light-shielding plate, and transfer-belt wiring that can become trapped during reassembly.

Disconnect wall power before disassembly and follow the factory warnings for high-voltage sections, laser optics, ESD-sensitive PWBs, and the hot fuser. Powered checks belong only in qualified service hands under the specified procedure.

Selected Print-Registration and Geometry References

For the covered machines, the U034 print-start adjustment illustrates a leading-edge registration reference of 20 ± 1.5 mm on its test pattern. The companion center-line check specifies alignment within ±0.5 mm.

For U053 motor-speed adjustment, the A3/Ledger test-pattern dimensions are A = 350 ± 0.5 mm and B = 250 ± 0.5 mm. These references accompany the manual’s print-geometry checks; they are separate from its scanner and document-processor adjustments.
