2008 Kyocera KM-C2525E KM-C3225E KM-C3232E KM-C4035E Copier Service Manual & Installation Guide Collection (P/N: 842JL113 / 2JLSM063)

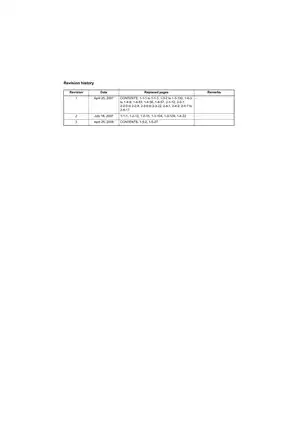

This Kyocera service manual and accessory installation guide collection covers the KM-C2525E, KM-C3225E, KM-C3232E, and KM-C4035E multifunction copiers. The main manual is Revision 3, published in April 2008, with cover identifiers 842JL113 / 2JLSM063 and the document-family designation 2JL/2JJ/2JG/2JD.

• Image formation and fusing: Removal and replacement procedures for developing units, drums, charger rollers, the transfer belt, transfer roller, and fuser unit.

• Paper handling: Cassette and MP-tray feed-pulley replacement, conveying-drive removal, registration-clutch service, and paper-path troubleshooting.

• Fault diagnosis: Paper-misfeed detection conditions, self-diagnostic codes, image-defect charts, and electrical and mechanical fault checks.

• Optical adjustments: Exposure-lamp and scanner-wire replacement, laser scanner unit removal, exposure-density correction, drum setup, and manual color registration.

• Electronics and firmware: Engine PWB removal, board-specific memory-transfer requirements, CompactFlash firmware upgrading, connector tables, and wiring diagrams.

• Accessory installation: Document-processor, paper-feeder, finishing-equipment, fax, and security-kit installation guides with applicable adjustments and operation checks.

The manual is written for service personnel and is suited to copier technicians familiar with electrical diagnosis and maintenance-mode adjustments.

Maintenance Mode and Fault Diagnosis

The maintenance mode list covers toner-sensor control, replenishment levels, drum sensitivity, laser output, and polygon-motor speed adjustments. Separate items address transfer-bias control, fuser temperatures, and sensor thresholds.

Paper-jam and self-diagnostic tables connect symptoms with detection conditions, likely causes, and corrective checks. U031 displays paper-path switch states, while U089 generates test patterns without scanning an original. These checks help distinguish a paper-detection fault from a transport problem and isolate scanner-related image defects from the printing system.

The Chart of image adjustment procedures links magnification, registration, and margin adjustments to their maintenance items and test originals. Automatic document-processor adjustment identifies the specified original by P/N 2AC68241, making the required calibration material clear before work begins.

Mechanical Repair and Board Replacement

Illustrated disassembly procedures show access to the image formation holder, optical assemblies, conveying drive, and engine PWB. The Machine cross section and Fuser section block diagram explain component relationships, while maintenance parts lists and periodic-maintenance tables identify replacement items and service points.

Laser scanner replacement includes exposure-density correction through U473, drum setup through U119, and a separate manual color-registration adjustment. The board-replacement section distinguishes EEPROM, DIMM, and DDR transfer requirements for the main and printer PWBs from the scanner PWB's EEPROM requirement.

The disassembly precautions identify hard-disk damage as a risk of incorrect shutdown. Toner-motor test cautions explain that prolonged or repeated operation can overfill and lock the developing section.

Servicing commercial copiers involves high-voltage components and extreme temperatures. Always consult a certified technician and observe all standard safety protocols before accessing internal printer mechanics.

Electrical Diagrams and Accessory Coverage

The electrical documentation includes nine wiring-diagram sheets, with separate versions for different speed variants. Electrical parts layouts, the Engine PWB silk-screen diagram, and the Duplex section block diagram support tracing connectors, sensors, motors, and control signals.

The main manual also covers unpacking, installation, initial configuration, and transport-position preparation. The accessory guides extend this coverage to fitting optional equipment and checking its operation; finishing-equipment instructions include staple-position, centerfold, and punch-position adjustments.

The Data Security Kit (D) guide covers board installation and an operation check. It refers detailed hard-disk formatting and encryption-key instructions to the separate operation guide.

Examples of Image Alignment and Installation Specifications

The image-quality table specifies leading-edge registration of ±2.5 mm for cassette feed, the MP tray, and duplex copying. Lateral image shifting is specified separately at ±2.0 mm for cassette and MP-tray feed, and ±3.0 mm in duplex mode.

The installation section specifies an ambient temperature of 10–32.5°C and humidity of 15–80% for the machine's installation environment.

PDF Search, Bookmarks, and Included Publications

Text search and diagram detail: Searchable text covers the service chapters and installation guides. Embedded PDF bookmarks provide access to chapters, wiring sheets, and accessory guides. Small connector and pin labels on the wiring sheets require zooming. The two final manufacturer contact pages have no searchable text layer.

The collection is supplied as one printable, 474-page PDF. The service manual is in English; the accessory guides include multilingual instructions.

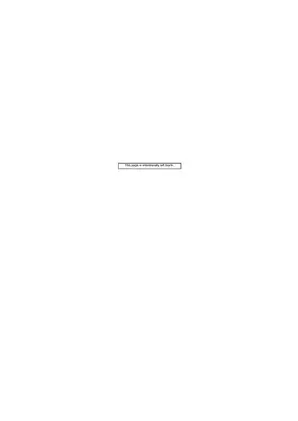

The publication counts include their covers and front matter, including eight intentionally blank pages within the service manual. Two manufacturer contact pages are also included in the overall total.
