Kyocera FS-C5350DN Service Manual (P/N 842K8110 / 2K8SM060)

• Exact coverage: Covers the Kyocera FS-C5350DN, product code 2K8. The 214-page PDF set combines a 176-page service manual identified as 842K8110 / 2K8SM060 with a 38-page parts list identified as 842K8120 / 2K8PL070; both are marked First Edition and published in June 2009.
• Major repair procedures: Illustrated removal and refitting for the paper-feed roller assembly, retard roller, and MP paper-feed roller; the four developing units, four drum units, and four main chargers; the intermediate transfer and transfer roller units; Duplex Unit B; fuser; laser scanners; ozone filter; and the power-source, main, engine, and high-voltage PWBs.
• Service-mode work: Covers service and network status pages, CMYK test printing, event logs, maintenance-kit counter reset, developer initial-value entry, developer/drum refresh, LSU and main-charger cleaning, and firmware loading from USB memory or CompactFlash.
• Fault isolation: Diagnostic tables address feed and lift systems, motors, clutches, laser output, charging and bias circuits, fuser control, toner supply, drum/developer recognition, EEPROM and controller communication, plus electrical, mechanical, and image-quality symptoms.
• Schematics and system views: Provides a full machine cross section, system-specific block diagrams, PWB and sensor layouts, connector pin/signal tables, PWB silk-screen diagrams, a two-page wiring diagram, and a repetitive-defects gauge.
• Parts identification: The companion parts list adds 15 illustrated assembly groups, maintenance-kit breakdowns, factory descriptions, alternate numbers, quantities, and separate data for U.S./Canada and European power-source versions.

Four-Drum Print Engine and Electrical Architecture

The mechanical chapters follow the paper and image path from cassette or MP tray through registration, four independent CMYK drum, charger, and developing stations, the intermediate transfer belt, secondary transfer, heat-roller fusing, paper exit, and duplex return. For repair work, the text explains each assembly’s function while the figures locate its rollers, sensors, motors, clutches, high-voltage outputs, and board connections.

Key visual references include the Machine Cross Section, Drum Section Block Diagram, Expose Section Block Diagram, Developing Section Block Diagram, Transfer/Separation Section Block Diagram, and Wiring Diagram. Electrical chapters map 27 PWBs, then break out switches, sensors, motors, clutches, solenoids, eraser lamps, and fuser components. Connector tables identify signal names, I/O direction, and specified signal voltages for the power-source, engine, drum-relay, and paper-exit boards, giving board-level repair decisions solid context.

The specification chapter records supported media, simplex and duplex speeds, tray capacities, controller and memory configuration, interfaces, environmental limits, dimensions, power requirements, consumption, and noise data.

Maintenance Modes and Diagnostic Coverage

Service mode supplies checks normally used before parts are condemned. Status pages report firmware, installed options, cumulative use, life counters, media and fuser settings, calibration data, RFID information, and individual drum IDs and serial numbers. The CMYK halftone test helps separate a single-color drum or developer problem from an engine-wide fault. Event logs decode jam history by source, size, media type, exit path, and sensor location, alongside service-call, maintenance, toner, and counter records.

The numeric self-diagnostic entries begin at 0100 and extend through 9530, followed by controller and firmware-related F-series entries through F186. Each table pairs the fault definition with likely causes and corrective checks. Sixteen image-quality categories cover blank or solid-color pages, light or dirty backgrounds, streaks, spots, offset, incomplete transfer, loose fusing, and color misregistration. Additional charts address sensors, fans, motors, clutches, solenoids, paper feed, jams, and abnormal noise.

Repair Procedures and Manual-Specific Service Notes

Figure-based removal and refitting sections cover the major wear units and electronics. Maintenance-kit information connects the reset function with the drums, developing units, fuser, intermediate transfer unit, feed and retard rollers, and ozone filter. The parts list identifies the related MK-580, DK-580, DV-560, FK-580, and TR-580 families for repair planning and kit-content checks.

Two repair traps receive specific attention. The engine PWB section calls out transfer of the original EEPROM U4 and warns that over-inserting the board assembly can deform its plate and disable the ID-sensor cleaning system. A separate diagnostic note links code 9530 to simultaneous engine-PWB and drum-unit replacement, so the guide treats them as separate replacement events.

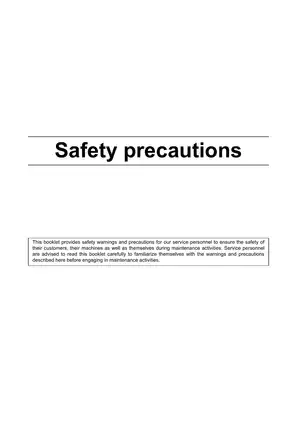

Safety coverage calls for AC isolation before disassembly and flags high-voltage charger circuits, static-sensitive PWBs, laser optics, and the hot fuser. Internal service requires appropriate laser-printer electrical repair skills.

Important Scope Limits

Printer-side communication and fault codes for optional paper feeders are included, but feeder-internal repair is referred to a separate paper-feeder service manual. Color calibration and manual color-registration procedures are referenced to the operation guide. This set covers service and parts work on the FS-C5350DN printer itself; it does not replace every accessory or operator publication.
