1993 Chevrolet S-10 2.5L, 2.8L, 4.3L Pickup Owner's Manual (P/N C-9308)

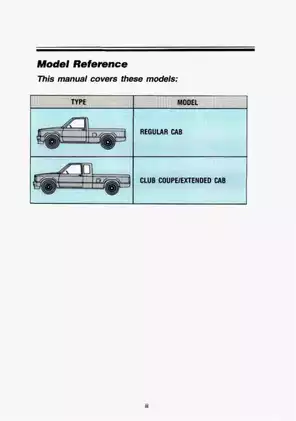

• Covers 1993 Chevrolet S-10 Pickup variants, including Regular Cab and Club Coupe/Extended Cab body styles. A 356-page PDF of GM's Second Edition, copyright 1992, P/N C-9308.
• Explains automatic and 5-speed manual transmission operation, with an illustrated shift pattern and separate instructions for manual and electronic-shift transfer cases.
• Standard and digital instrument-cluster illustrations identify warning lights and gauges alongside a vehicle-symbol reference, with guidance on conditions requiring service or repair.
• Owner-service procedures cover air-cleaner replacement, transmission-fluid checks, hydraulic-clutch reservoir inspection, and axle and transfer-case lubricant checks.
• Roadside instructions address jump starting, overheating, spare-tire removal, wheel changes, and towing precautions for 2WD and 4WD trucks.
• Maintenance Schedules I and II distinguish demanding use from less severe service, backed by owner checks and recommended fluids and lubricants.

Engine & Drivetrain Operation

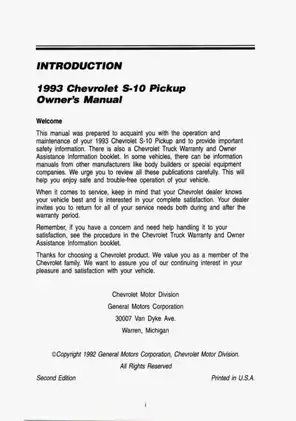

This GM owner's manual details the factory operation, maintenance cycles, and safety systems for the 1993 Chevy S-10. It was written for owners learning the truck's operation and care; hands-on maintenance assumes the knowledge and equipment required for the job.

The engine identification chart covers the 2.5L four-cylinder (VIN A), 2.8L V6 (VIN R), and two 4.3L V6 versions. The A, R, and Z engines use throttle body injection (TBI). VIN W identifies the high-performance 4.3L with central port injection (CPI). Starting instructions address normal, cold-weather, and flooded-engine conditions.

The brake section explains rear-wheel antilock operation, including its unavailability in four-wheel drive. Cab-specific material covers Extended Cab jump seats and restraints. Exterior controls include the tailgate, while the comfort sections explain heater/A/C operation and factory Delco audio controls.

Maintenance & Factory Specifications

The scheduled-service explanations cover chassis lubrication, cooling-system service, ignition-component replacement, and brake inspections. They distinguish 2WD front-wheel-bearing service and 4.3L clutch-fork ball-stud lubrication. The clutch guidance warns that excess grease can damage the clutch assembly.

Owner-check procedures include the starter interlock, steering-column lock, and parking-brake/transmission-Park holding checks. Engine-specific air-cleaner instructions distinguish the round housing used with the A, R, and Z engines from the square housing on VIN W trucks.

The Capacities and Specification Charts provide coolant and crankcase capacities by engine, wheel-nut torque, fuel-tank data, and R-12 refrigerant specifications for the C-60 A/C system. Fuel data distinguishes the standard 20-gallon tank from the 13-gallon tank available on some 2WD pickups. Listed capacities are approximate, with refill-level checks specified for the cooling system and crankcase.

The Recommended Fluids & Lubricants chart separates 5-speed manual transmissions by RPO code: ML3/MW1 versus MY2. It also distinguishes standard and locking differentials. Replacement-part and filter recommendations support routine parts selection.

For minor electrical repair, the book provides bulb-replacement procedures, lamp trade numbers, a fuse-block layout, and a table of protected circuits. That table identifies circuits for equipment such as the rear-wheel antilock brake module and electric-shift transfer-case module.

Roadside Procedures & Repair Limits

Illustrated front and rear jacking locations accompany the tire-changing instructions. Always verify the designated jacking points and follow the manual's safety warnings before lifting the truck.

The towing section explains drivetrain-specific precautions against transmission damage. Its recreational-towing instructions apply to four-wheel-drive trucks without the optional electronic-shift transfer case.

This factory literature serves as an operating guide and specification reference rather than a step-by-step diagnostic manual. Engine teardown, transmission overhaul, detailed brake repair, and full vehicle wiring diagrams are outside its scope. GM directs readers needing more detailed service instructions to the separate Service Manual.
