1964–2006 Mercruiser Stern Drive Type 1, Alpha/MR and Bravo I and II Units Service Manual (P/N 91-877410)

• 1,770-page PDF arranged in three service sections: 1964–1991 (PDF pages 2–600), 1992–2000 (pages 602–1186; its Engine Finder also lists 2001 applications), and 2001–2006 (pages 1188–1770). Three divider pages complete the total.
• Drive coverage includes Type I, MR, Alpha, Alpha One Generation II, Bravo I/II/III, Blackhawk, and later Bravo X/XR/XZ configurations, plus inboard transmission systems.

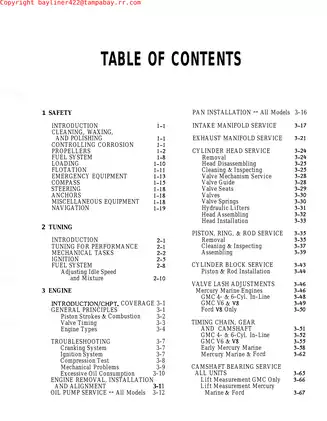

• Engine repair content covers removal, installation and alignment; cylinder heads and valve gear; pistons, rings, rods and crankshaft bearings; oil pumps; camshaft and timing components; and engine reconditioning.
• Carburetor and EFI chapters provide component service and diagnosis for Rochester, Carter, MerCarb, Holley and Weber units, followed by TBI/MPI, MEFI and PCM-controlled fuel and ignition systems.
• Gearcase and transom procedures include upper- and lower-unit teardown, bearing and seal service, gear shimming, preload and backlash checks, water-pump service, bellows and gimbal work, and shift-cable adjustment.
• Electrical schematics, exploded views, diagnostic charts and specification tables support ignition, EFI, cooling, charging, starting, trim, steering and remote-control repair.

This service-manual collection spans more than four decades of carbureted and fuel-injected MerCruiser gasoline power. It is suited to hands-on owners and professional technicians: the early material explains core maintenance and test methods, while engine reconditioning, gearcase setup, EFI/PCM fault isolation and SmartCraft DTS work require appropriate measuring equipment, special tools and experienced judgment.

Coverage by Generation

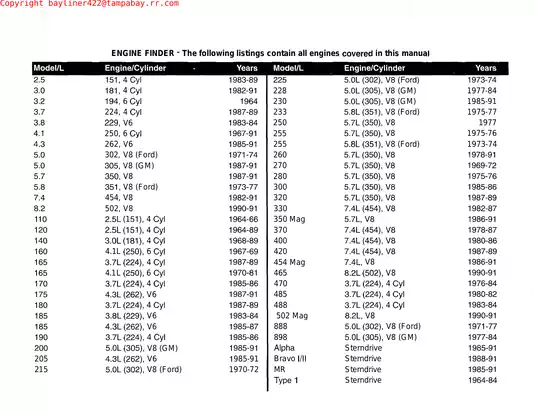

The early Engine Finder includes 2.5L, 3.0L and 3.7L four-cylinder engines, a 4.1L inline-six, 4.3L V6 packages, GM- and Ford-based V8s, and 470/485, 888/898 and Magnum applications. Later sections extend coverage through 6.2L and 8.1L packages, 350/496 Mag and Black Scorpion, while adding Blackhawk and Bravo III/X-series drives. Transmission chapters address Borg Warner, Velvet, Hurth/ZF and Walter units; the 2001–2006 section retains Velvet and ZF/Hurth inboard coverage.

This is a broad, multi-model repair reference, not a single serial-specific factory shop manual. Match engine, drive and transmission identification to the applicable Engine Finder, application chart and serial break before selecting procedures or specifications. Diesel engines are outside the stated gasoline-engine scope.

Engine, Fuel, and Electrical Repair

The mechanical chapters move well beyond tune-up work. They cover manifold and cylinder-head removal, valve-guide and seat service, lifters, piston and rod inspection, crankshaft and camshaft work, timing-system installation, lubrication-system testing and engine alignment. Reconditioning sections add measurement methods, wear limits, clearance data, tightening sequences, sealant locations and component-specific torque tables.

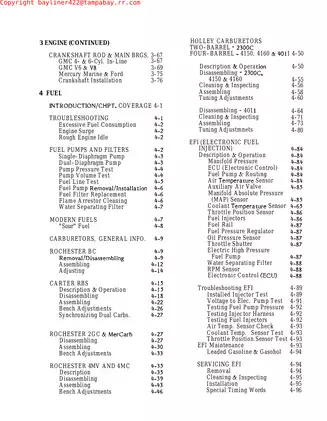

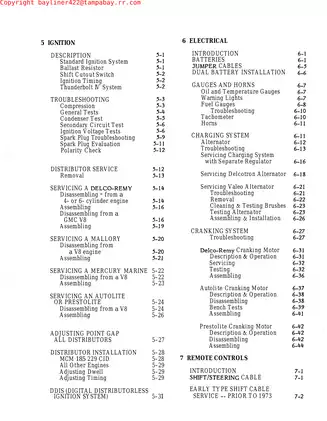

Fuel coverage follows the hardware by generation. Early chapters service Rochester BC, 2GC, 4MV/4MC, Carter RBS, MerCarb and Holley 2300C/4150/4160/4011 carburetors; later material adds Weber four-barrel units. EFI sections cover injectors, rails, regulators, MAP, TPS, IAC and coolant-temperature inputs, Cool Fuel and VST assemblies, fuel-pressure testing, ECM pin locations and diagnostic trouble codes. Ignition material distinguishes breaker systems, DDIS, EST, Thunderbolt IV/V, and later DEI/DIS with PCM 555, including system-specific base-timing and fault-isolation coverage.

Drives, Controls, and Serial Breaks

Alpha, Bravo and Blackhawk chapters document sterndrive removal, gear-housing separation, driveshaft and propeller-shaft service, U-joint and clutch assemblies, bearing installation, shimming, rolling-preload and backlash checks, lubrication and final assembly. Related chapters cover transom plates, gimbal bearings and rings, exhaust and U-joint bellows, power trim pumps and cylinders, manual and power steering, compact hydraulic steering, and conventional remote controls.

The later section distinguishes 0W100000 and above from 0M999999 and below in its 2004 Bravo material for the shortened propeller-shaft/thrust-bearing arrangement, revised U-joint illustrations and changed shift-cable hardware. It also adds Auto Trim II, SmartCraft Digital Throttle & Shift and Precision Pilot diagnosis.

Diagrams, Specifications, and Special Tools

Representative graphics include MCM 120R/140R and 3.0L wire-routing diagrams with and without fuses; 1992–2001 MEFI engine and fuel-system schematics; EFI vacuum diagrams, ECM pin views and DTC charts; carbureted, TBI and MPI cooling-flow diagrams; Alpha/Bravo gearcase and transom exploded views; and 10- and 14-pin SmartCraft DTS cable-routing and wiring schematics. Reference tables cover torque, tune-up settings, carburetor applications, capacities, electrical tests, gear ratios, shimming data, preload, backlash, clearances and wear limits.

Special-tool callouts include engine-alignment tools 91-57797A3 and 91-805475A1, Alpha shimming gauges 91-60523/91-60526, backlash indicator rod 91-53459, and trim-cylinder spanner 91-821709. The Bravo material flags the oil-passage O-ring around the driveshaft spacer as critical to lubrication of the double-bearing arrangement and lower unit. It also warns that forcing a trim-cylinder end cap without the correct spanner can damage the tool holes and leave the cylinder unserviceable.

Because these procedures involve gasoline, pressurized EFI circuits, electrical systems and heavy drive components, follow current manufacturer safety information, isolate ignition sources, relieve fuel pressure and support lifted assemblies before repair work begins.
