1939–1952 Ford 9N, 2N, 8N Tractor Service Manual (P/N 40000230)

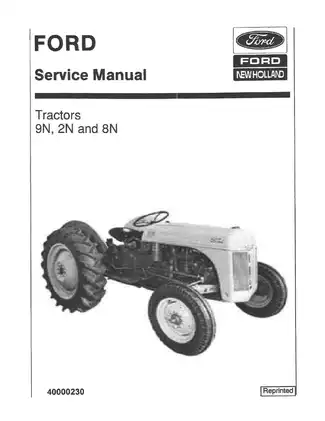

This reprinted Ford service manual, identified as 40000230 on the cover, covers the 1939–1952 9N, 2N, and 8N tractors. Compiled from earlier Ford publications, it focuses on the 8N; much of the information is also useful for 9N and 2N service.

• Engine repair: Internal disassembly, crankshaft and piston inspection, cylinder-sleeve replacement, valve work, oil-pump service, and engine reassembly.

• Carburetor and governor: Carburetor teardown and inspection, float-level checks, centrifugal governor repair, shaft shimming, and setting-gauge adjustments.

• Transmission and PTO: Gear-cluster disassembly, reverse-idler inspection, shifter interlocks, bearing-preload checks, PTO adapter service, and belt-pulley overhaul.

• Rear axle and steering: Differential and drive-pinion repair, semi-floating axle-bearing replacement, ball-nut steering inspection, sector adjustment, and production-change bulletins.

• Hydraulic lift: Ram-cylinder and pump overhaul, control-valve inspection, draft- and position-control linkage assembly, and internal and external adjustments.

• Electrical service: Starter and Bendix overhaul, angle-drive distributor installation and timing, plus generator-conversion instructions and wiring for 9N and 2N tractors.

Suited to mechanics and experienced restorers who are comfortable measuring component clearances and using pullers, an arbor press, and precision gauges.

Engine Internals and Sleeve Variants

The engine chapter covers the crankshaft, flywheel, pistons, connecting rods, camshaft, and valve assemblies through disassembly, inspection, repair, and reassembly. Fits-and-tolerances tables distinguish original clearances from wear limits, while torque references distinguish fastener types.

Later bulletins add adjustable tappets, revised exhaust valves, aluminum-piston fitting information, and cast-iron sleeve service. The oversize piston-and-ring instructions apply specifically to engines fitted with cast-iron sleeves, rather than the earlier steel-sleeve arrangement.

Illustrations include Checking Valve Guide Bushing for Wear and the timing-gear Timing Marks view. Tool references include Piston Pull Scale 6110-A and Clutch Pilot Tool 7550-A.

Carburetor, Governor, and Water Pump

Carburetor coverage extends to the throttle body, float, needle and seat, venturi, and metering jets. The carburetor attachment cross-references Ford and Marvel-Schebler numbers and distinguishes versions with and without the economizer jet, helping identify the correct assembly before selecting parts.

Governor inspection addresses the drive gear, bearing races, balls, lever mechanism, and shaft bushing. Governor Drive Shaft, Disassembled supports the shimming and setting-gauge information. Water-pump coverage includes shaft and bearing removal, seal inspection, and reassembly.

Transmission, PTO, and Belt Pulley

Transmission instructions follow the main-shaft and countershaft gear clusters through teardown and assembly, including the reverse idler and shifter interlocks. Shim selection and turning-torque checks address bearing preload; Main Shaft Assembly, Disassembled shows the component relationships.

The PTO chapter covers the shaft, seals, bearings, and adapter. Belt-pulley service includes matched drive and driven gears, bearing replacement, and adjustment using the housing gasket thickness.

Hydraulic Pump and Lift Controls

The hydraulic section documents the Scotch yoke piston pump, pump base, valve chambers, intake and exhaust control valves, and ram cylinder. Hydraulic Control Linkage shows how the draft- and position-control components fit together.

Adjustment instructions distinguish external lever settings from internal linkage adjustments after overhaul. A service bulletin explains how a failed lift-cover pin can allow fragments and the connecting rod to enter the differential or hydraulic pump, damaging those assemblies.

Working on heavy tractor hydraulics or rotating PTO assemblies presents serious pinch and crush hazards. Always relieve hydraulic pressure and verify that the tractor is fully supported on proper safety stands before beginning any teardown.

Rear Axle, Steering Gear, and Brake Data

Rear-axle coverage includes hub removal, axle-bearing replacement, differential gear-case inspection, and drive-pinion bearing adjustment.

The main steering chapter describes the earlier recirculating-ball unit; a later bulletin explains the revised sector supports and associated panel and drag-link changes. The chapter warns that allowing the ball nut to reach the end of the worm during disassembly can damage the ball retainer.

Brake coverage provides lining dimensions and pedal free-play specifications, with backing-plate handling included in rear-axle service; it is not a separate brake-overhaul procedure.

Starter, Ignition, and Generator Conversion

Starter instructions include brush and bearing inspection, armature handling, and Bendix disassembly. Ignition attachments cover angle-drive distributor installation, timing-light checks, and automatic advance.

The generator-conversion attachment includes an installation wiring diagram for 9N and 2N tractors. Its regulator references differ: the bulletin specifies 8N-10505-C, while Attachment 8 and its drawing identify 8N-10505-B.

A Preview of Engine Fits and Cold Valve Clearances

These examples are a small selection of the engine measurements included in the manual.

The engine fits table gives an original camshaft-to-bearing clearance of 0.001 to 0.002 inch and a 0.004-inch wear limit. Its clearances are based on parts at 70°F.

The 8N valve-clearance bulletin specifies 0.010 to 0.012 inch for intake and 0.014 to 0.016 inch for exhaust, checked cold at approximately 70°F. These are valve-stem-to-tappet clearances, distinct from valve-stem-to-guide fits.

Chapter Bookmarks and PDF Reading Details

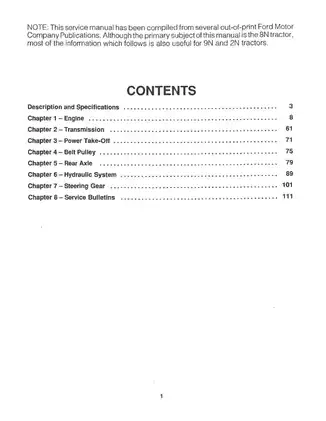

Search, navigation, and wiring detail: Searchable text is limited to the contents page; the main text is not searchable. Embedded bookmarks open the contents, specifications, and repair chapters. The generator wiring diagram requires rotation and zooming for small labels; some marginal lettering remains faint or partly illegible.

Supplied as one printable, English-language, 146-page PDF: 145 manual pages, including the cover, contents, five blank pages, and service-bulletin attachments, plus one additional introductory page. All of these pages are already included in the total.
