1952 Ford 8N, 9N & 2N models Tractor Owner's Manual (P/N 3729-52-C, SE3729-52-C)

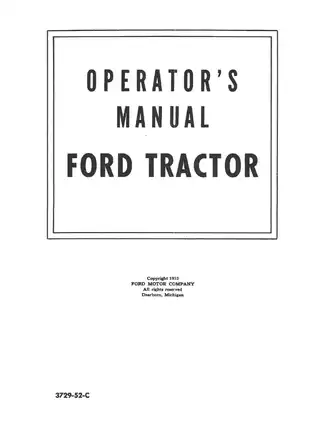

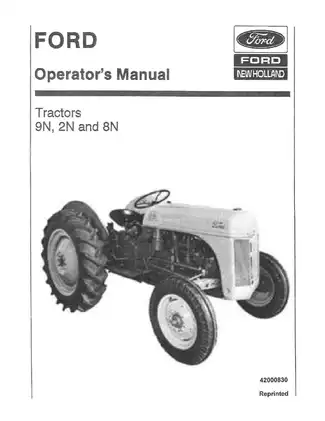

• 175-page Ford/New Holland reprint PDF: Combines the 128-page 1952 Ford Tractor Operator's Manual, form 3729-52-C, with a 15-page Ford Tractor Ferguson System instruction book, a 20-page Ford-Ferguson technical feature booklet, an 8-page tractor operator safety insert, and four reprint/cover pages. The reprint number is 42000830; the back cover also identifies source codes SE3729-52-C, 4423, M-3100-A, and Z-3035-F.

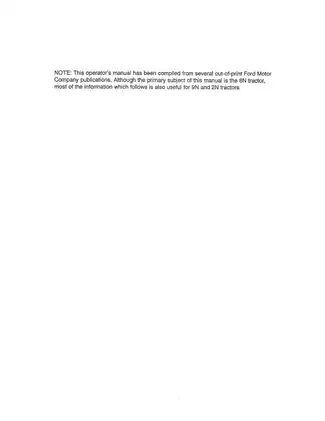

• Model and configuration coverage: The 8N is the primary subject, while the compiler states that most of the material is also useful for 9N and 2N tractors. The main book covers the 8N four-cylinder L-head gasoline engine, four-speed constant-mesh transmission, draft/position hydraulic control, and two-brush charging system. Appended Ferguson System material documents the earlier three-speed configuration, hydraulic draft-control arrangement, and third-brush generator system.
• Engine and clutch repair: Covers engine removal and installation, cylinder-head and valve work, tappet adjustment, connecting-rod and piston replacement, piston fitting, oil-pan and oil-pump removal, clutch replacement, and pedal free-travel adjustment.
• Chassis and power-train work: Includes tires and liquid ballast, front hub and bearing service, brake shoe replacement and adjustment, steering-gear checks, spindle and front-axle replacement, rear axle end-play checks, PTO removal, transmission removal, and separation of the transmission and center housing.
• Fuel, cooling, and electrical service: Details carburetor cleaning and float adjustment, governor linkage setup, fuel-tank and air-cleaner service, radiator and water-pump replacement, thermostat testing, generator and brush service, charging and starting diagnosis, distributor work, ignition timing, and spark-advance testing.
• Hydraulic diagnosis and adjustment: Explains constant-draft and position-control operation, pressure and leakage checks, lift-cover and pump removal, main control-spring setup, quadrant adjustment, control-valve checks, and final synchronization checks.
• 83 numbered figures in the 1952 manual: Useful examples include the Rear Wheel Tread Adjustment, Lubrication Chart, Carburetor Disassembled, Generator Assembly, Schematic Wiring Diagram, and Constant Draft Control illustrations. The appended publications add component cutaways, system diagrams, and operating photographs.

Owner-Level Repair Scope

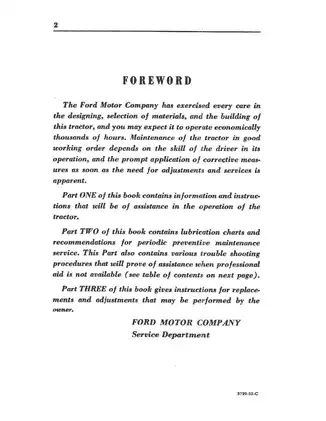

The four-part 1952 manual moves from operation and preventive maintenance into symptom-based troubleshooting, selected component replacement, adjustment work, and Dearborn plowing instructions. Its foreword expressly says the troubleshooting material is provided for times when professional help is unavailable and that Part Three covers replacements and adjustments an owner may perform. This makes the PDF best suited to experienced owners and mechanics who are comfortable with lifting and supporting tractor assemblies, using mechanical pullers and gauges, and performing basic electrical tests.

This is not a complete dealer overhaul manual. It removes and replaces the transmission, hydraulic pump, steering assembly, generator, and starting motor, but does not provide a full internal rebuild procedure for each of those units. Steering-tube bearing adjustment and certain unresolved hydraulic faults are specifically referred to a dealer or trained service technician. The separate safety insert is generic and should not be mistaken for additional 9N, 2N, or 8N repair coverage.

Diagnostics, Specifications, and Special Tools

Troubleshooting is organized around actual symptoms: loss of engine power, no-start and backfire conditions, high-speed misfire, overheating, fuel starvation or flooding, governor hunting, low charging output, slow cranking, weak or intermittent spark, and hydraulic lift problems. The related tables and checks provide component-specific torque data, capacities, compression and clearance limits, piston-fitting data, ignition and charging-system test values, tire-loading information, brake and steering adjustments, hydraulic pressure checks, and synchronization criteria.

Named service tools include tappet holding wrenches 8N-17045-A and 8N-17046-A, valve lifter 6505-A, piston pull scale 6110-A, carburetor float-position gauge 9550-D, and distributor adjusting wrench 12150-A.

Implements, Repair Cautions, and Safety

Part Four covers Dearborn moldboard plow mounting, width-of-cut setup, coulter and jointer adjustment, the rolling landside, plow-bottom selection for different soils, share sharpening, lubrication, and land, rectangular, and contour plowing methods.

The manual warns that the lower-link check-chain brackets must be installed with the short section on top; reversing them can prevent full lift travel and create excessive hydraulic-pump pressure. It also calls for careful lift-cover handling because the control arm and linkage can be damaged or left binding during removal and installation.

Engine, clutch, transmission, axle, and hydraulic repair work requires secure blocking and lifting support. Lower mounted equipment, stop the engine, shield the PTO, and relieve hydraulic load before service.
